Without Scan Tool

DTC CLEARANCE (Not using diagnosis check wire)

When the ignition switch is turned off, the diagnostic trouble
code is cleared.

HINT: Depending on the DTC, the code might not be cleared by turning the ignition switch OFF.

In this case, proceed to the next step.

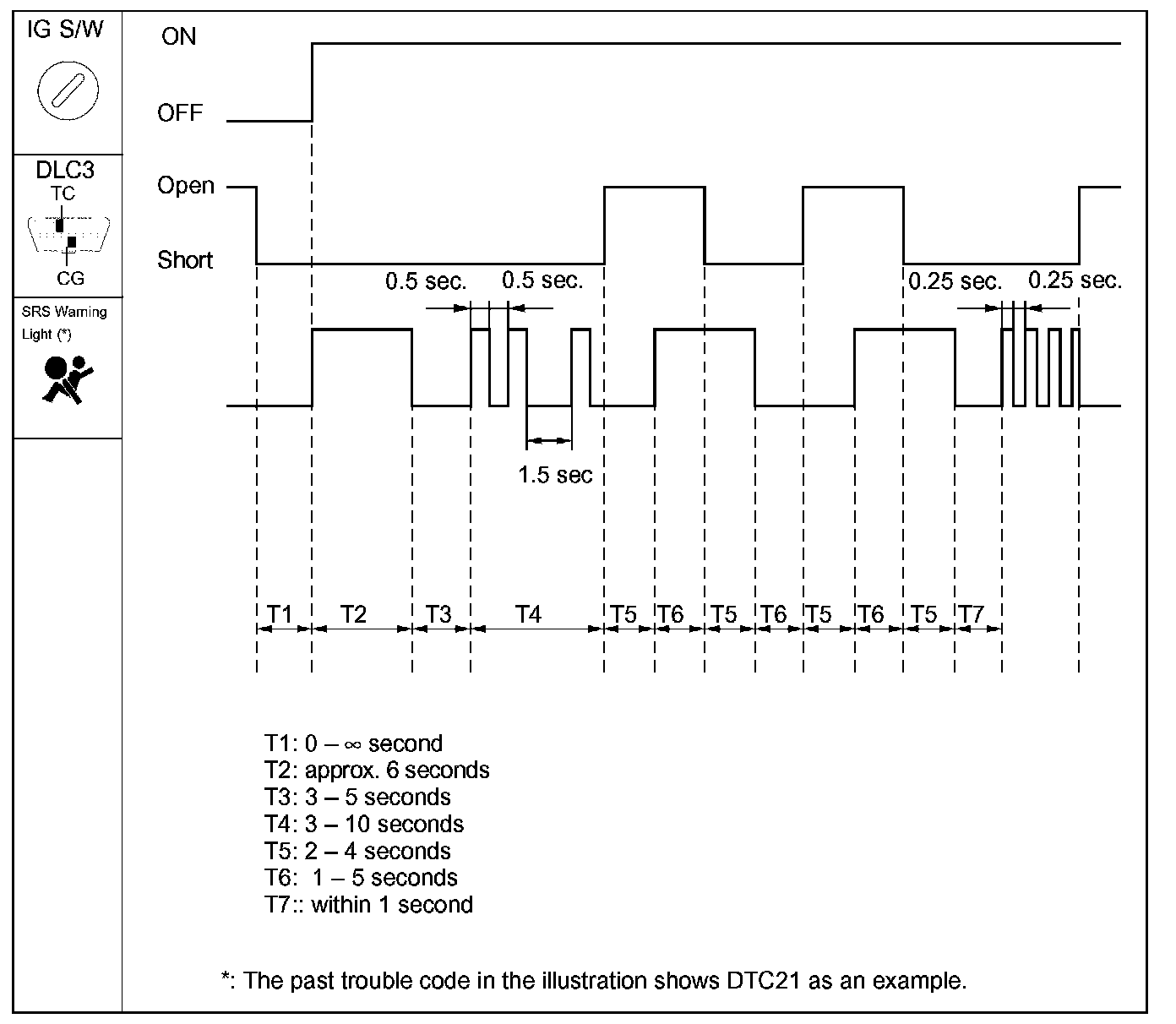

DTC CLEARANCE (Using service wire)

a. Using a service wire, connect terminals TC and CG.

SST 09843-18040

b. Disconnect terminal TC of DLC3 within 10 seconds after the DTCs appear, and check if the warning light come on within 3.0 seconds.
c. Within 2.0 seconds to 4.0 seconds after the SRS warning light come on, re-connect the terminals TC and CG of DLC3.
d. SRS warning light goes off 3.0 seconds after re-connecting the terminal TC and CG. Then disconnect the terminal TC of DLC3 within 2.0 to 4.0 seconds after the SRS warning light goes off.
e. Warning light comes on within 3.0 seconds after re-disconnecting the terminal TC and CG.
f. Within 2.0 seconds to 4.0 seconds after the SRS warning light come on, re-connect the terminals TC and CG of DLC3.
g. SRS warning light goes off 3.0 seconds after re-connecting the terminal TC and CG.
h. Normal code appears 1.0 second after the SRS warning light goes off.




If DTCs are to cleared, repeat the above procedure until the codes are cleared.
