Starter Relay: Testing and Inspection

STARTER RELAY INSPECTION

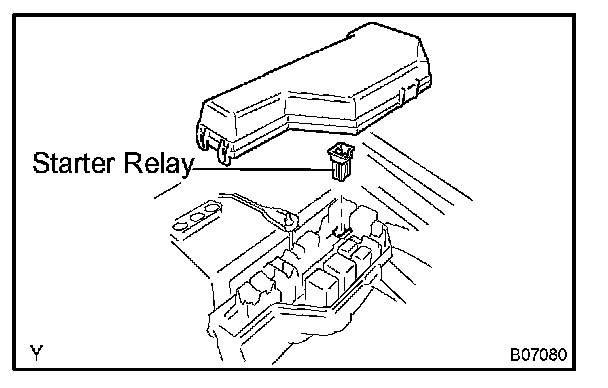

1. REMOVE RELAY BOX COVER
2. REMOVE STARTER RELAY

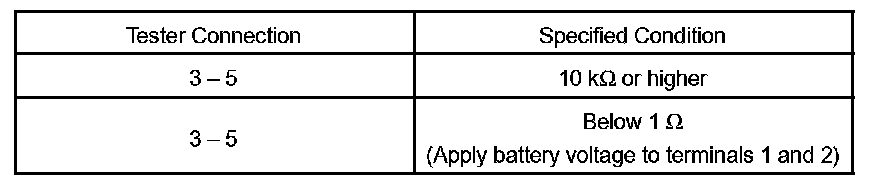

Standard:

3. INSPECT STARTER RELAY

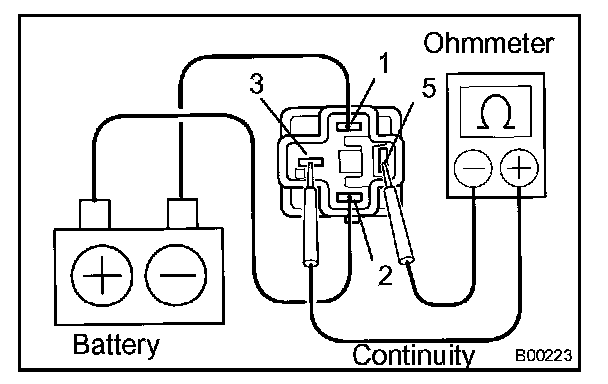

(1) Using an ohmmeter, measure the resistance between the terminals.
If the resistance is not as specified, replace the relay.

4. REINSTALL STARTER RELAY
5. REINSTALL RELAY BOX COVER
