Heater Main Relay

INSPECTION

1. REMOVE FRONT DOOR SCUFF PLATE LH
2. REMOVE COWL SIDE TRIM BOARD LH

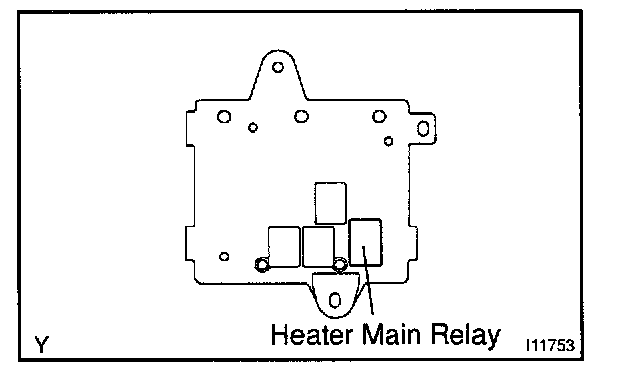

3. REMOVE HEATER MAIN RELAY




a. Disconnect the connectors.

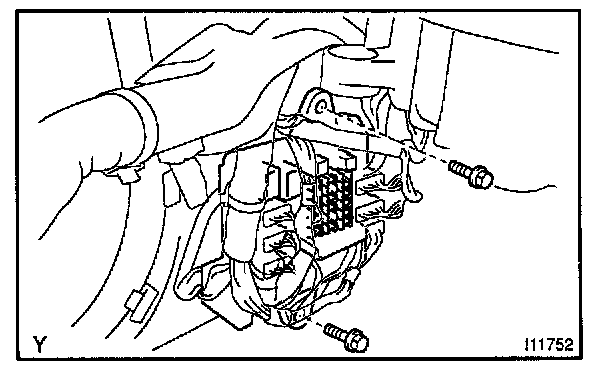

b. Remove the 2 passenger side junction block set nuts.




c. Remove the heater main relay from passenger side junction block.







4. INSPECT HEATER MAIN RELAY CONTINUITY
If continuity is not as specified, replace the relay.

5. INSTALL HEATER MAIN RELAY
a. Install the heater main relay to passenger side junction block.
b. Install the passenger side junction block set nuts.
c. Connect the connectors.

6. INSTALL COWL SIDE TRIM BOARD LH
7. INSTALL FRONT DOOR SCUFF PLATE LH
