Home >> Lexus >> 2005 >> IS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Body and Frame >> Trunk / Liftgate Relay >> Locations

Trunk / Liftgate Relay: Locations

Body Control System:

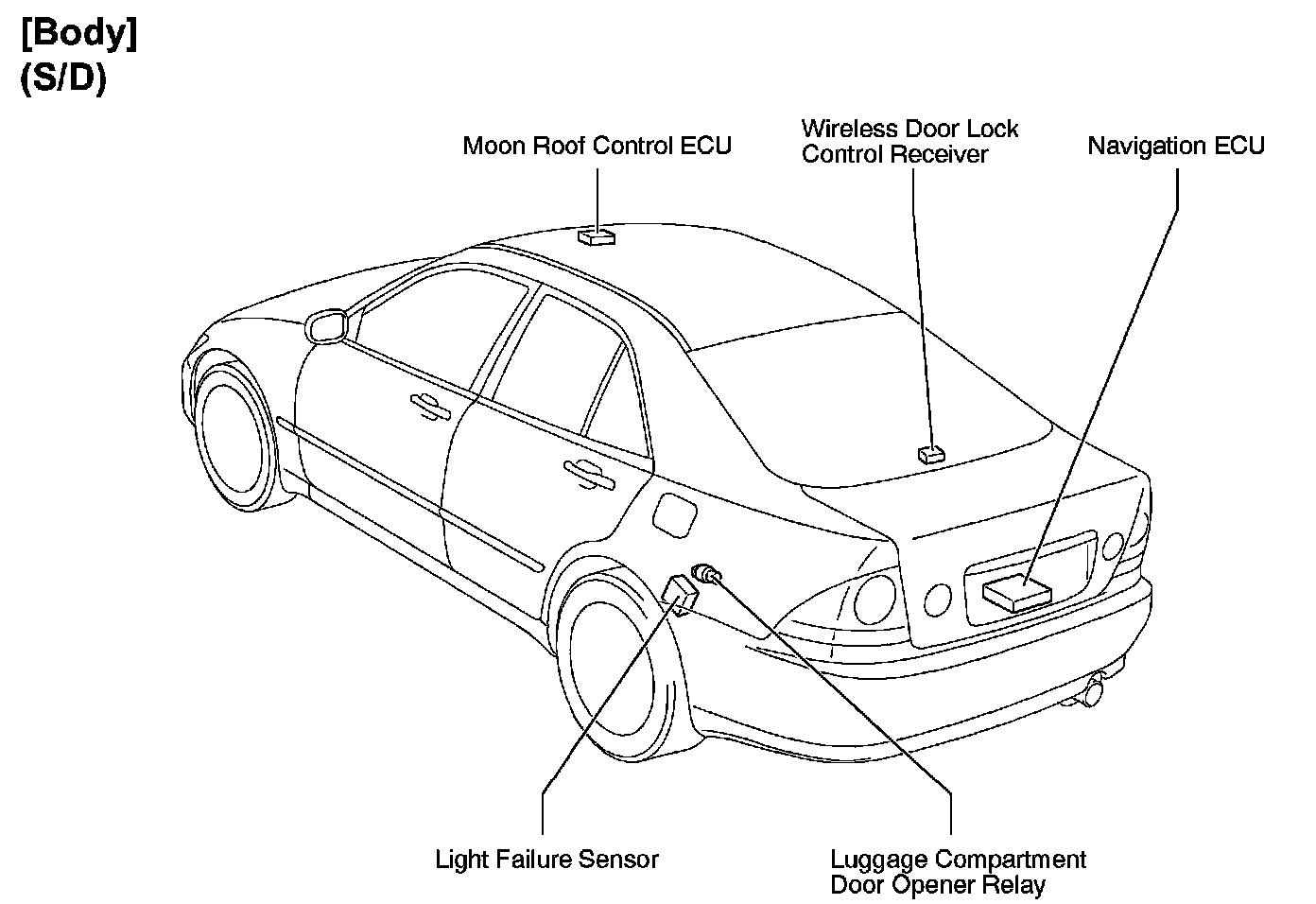

Body (S/D):

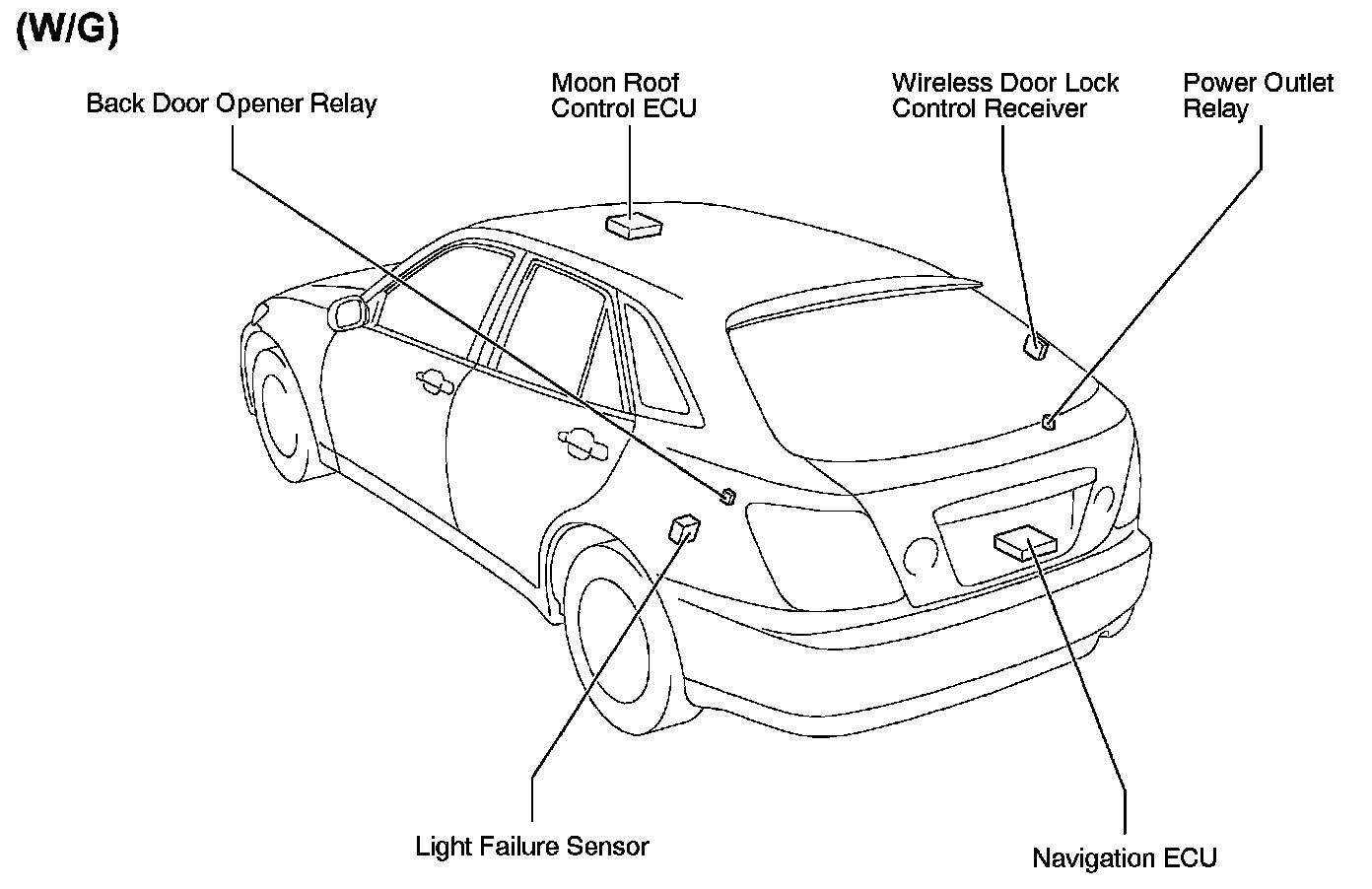

Body (W/G):



Ab - Lu (S/D):
