Component Tests and General Diagnostics

INSPECT THEFT DETERRENT INDICATOR LIGHT OPERATION
a. Remove the combination meter.
b. Disconnect the combination meter connector.

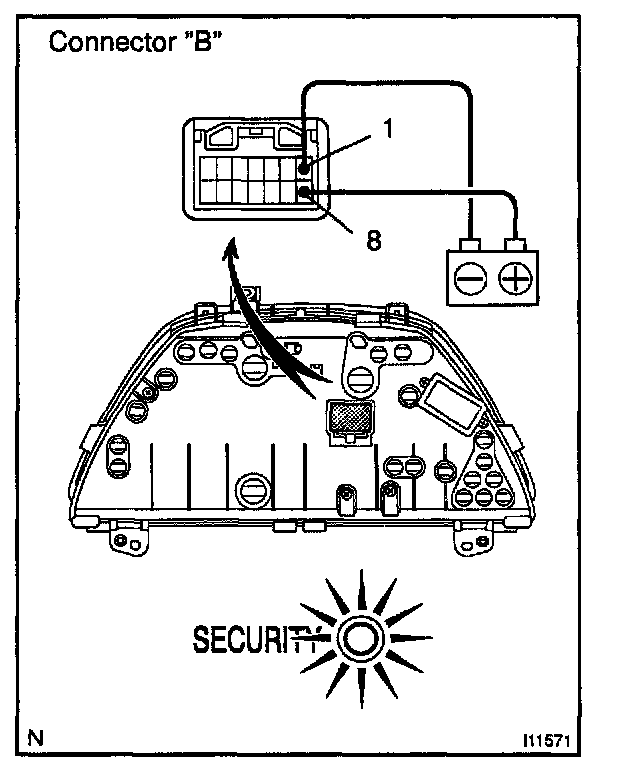

c. Check indicator light lights up when connect the positive (+) lead from the battery to terminal B8 and the negative (-) lead to terminal B1 of combination meter connector.
If operation is not as specified, replace the indicator light.




INSPECT THEFT DETERRENT INDICATOR LIGHT CIRCUIT
