Fuel Pump Ballast Resistor: Testing and Inspection

INSPECTION

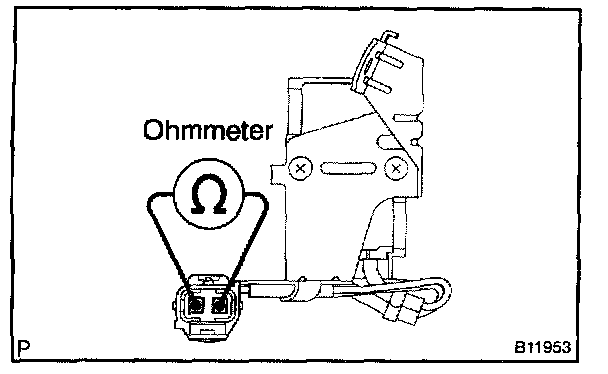

INSPECT FUEL PUMP RESISTOR




Using an ohmmeter, measure the resistance between the terminals

Resistance: 0.30 - 0.35 Ohm at 20 °C (68 °F)

If the resistance is not as specified, replace the resistor.
