MIL Circuit

MIL Circuit Malfunction

CIRCUIT DESCRIPTION
If the ECM detects a trouble, the MIL lights up. At this time, the ECM records a DTC in the memory.

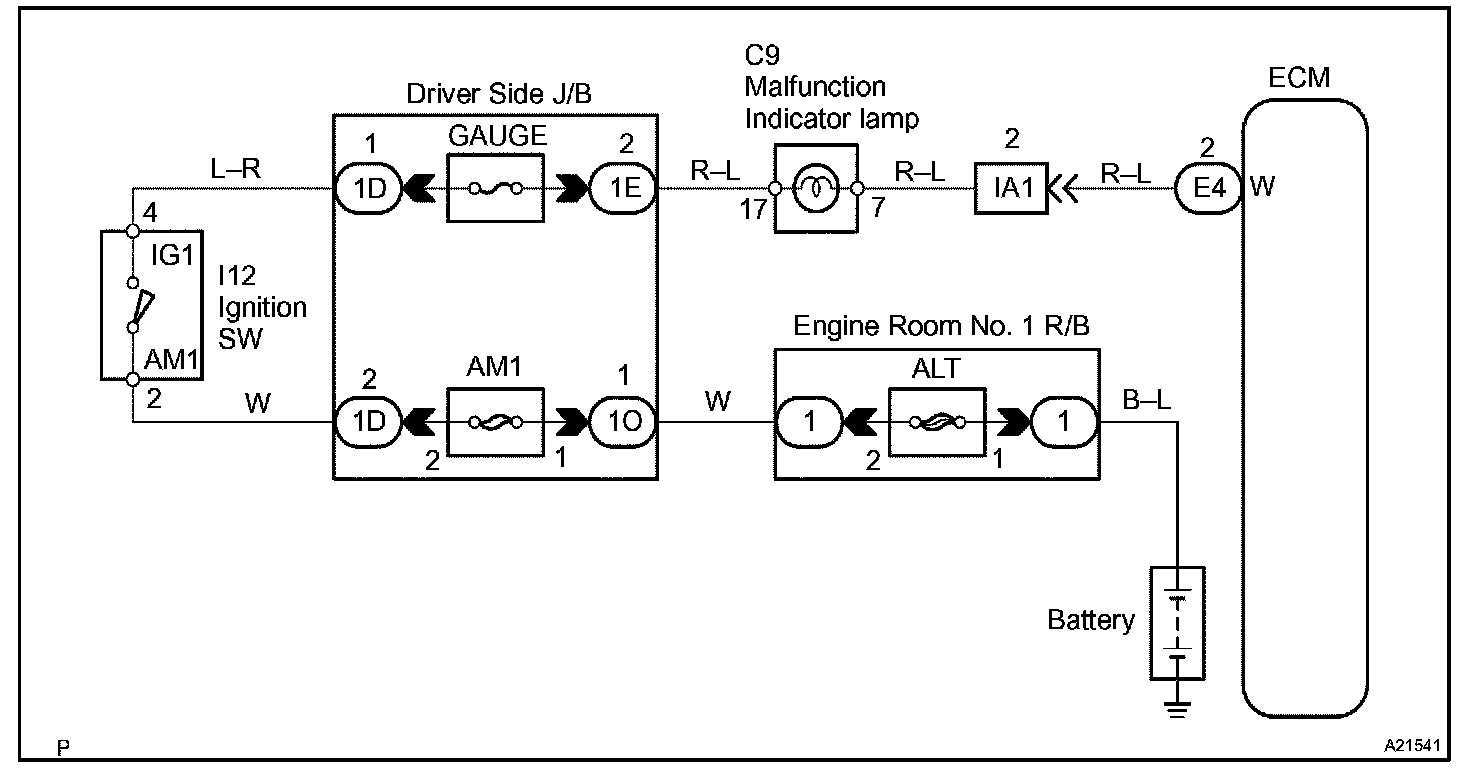

Wiring Diagram:

Step 1 - 4:

Step 5:

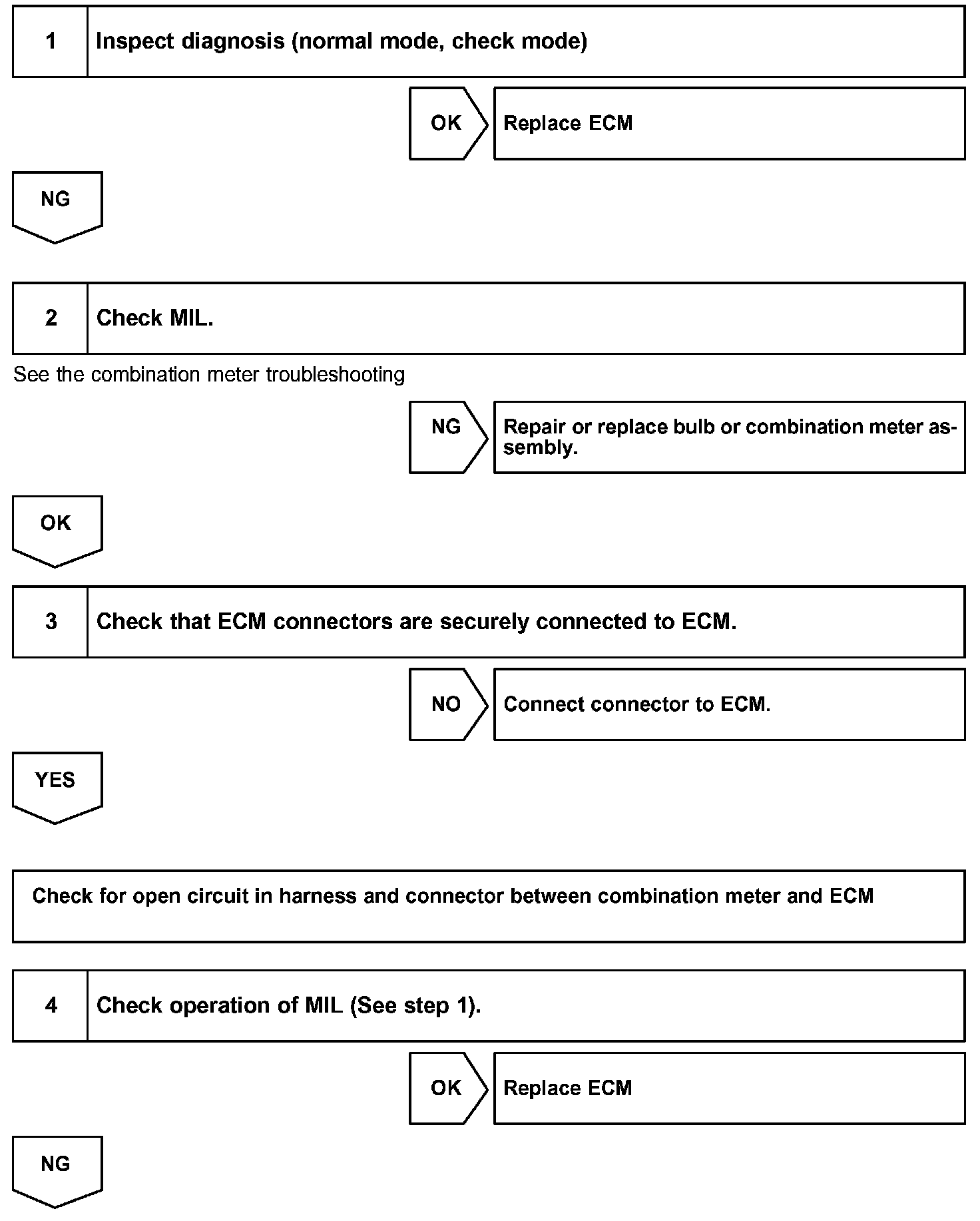

INSPECTION PROCEDURE

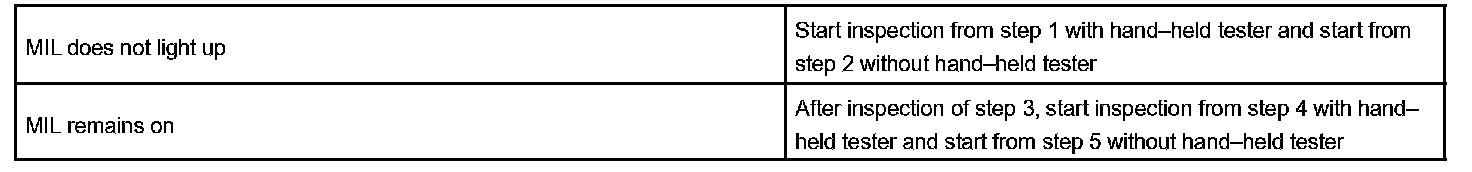

HINT: Troubleshoot in accordance with the chart for each trouble symptom.
