Cabin Air Filter / Purifier: Service and Repair

Cabin Air Filter

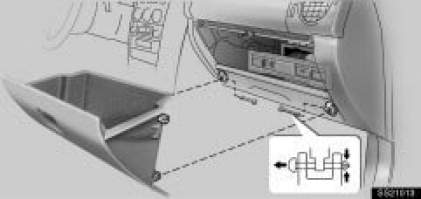

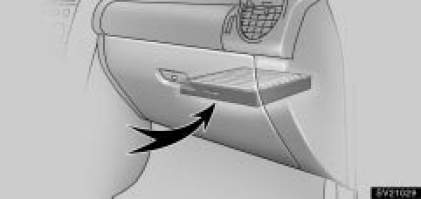

1. Remove the glove box. Remove belongings in the glove box, and remove the 2 pins installed on the lower part of the glove box and remove the glove box.

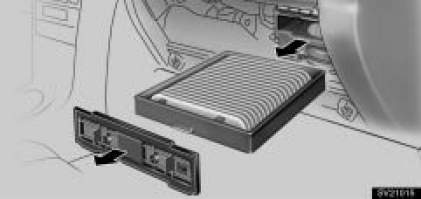

2. Remove the cover and take out the filter.



NOTICE: The filter should be installed properly in position. The use of the air conditioning with the filter removed may cause the malfunction of the air conditioning system.
