Headlight Beam Level Control System

INSPECTION

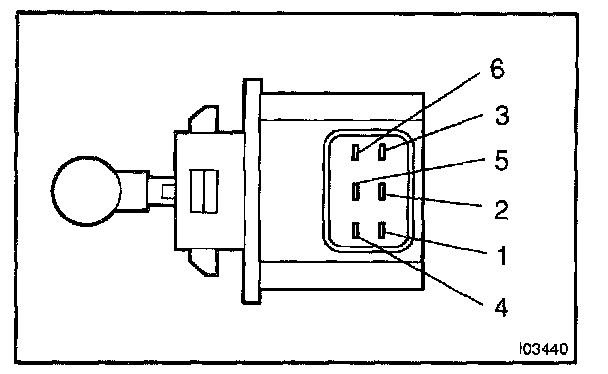

1. INSPECT HEADLIGHT BEAM LEVEL CONTROL ACTUATOR RESISTANCE
a. Check that continuity exists between terminal 2 and 5.

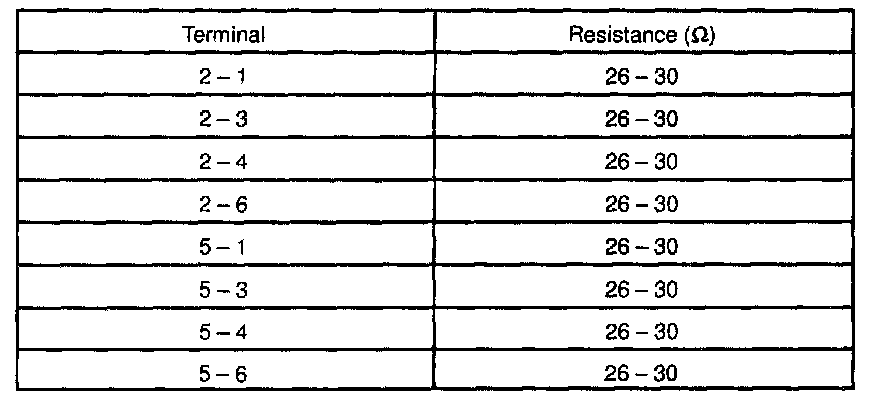

b. Check that resistance exists between terminal, as shown in the chart.
If resistance value is not as specified, replace the actuator.







2. Connector disconnected:
INSPECT HEADLIGHT BEAM LEVEL CONTROL ECU CIRCUIT

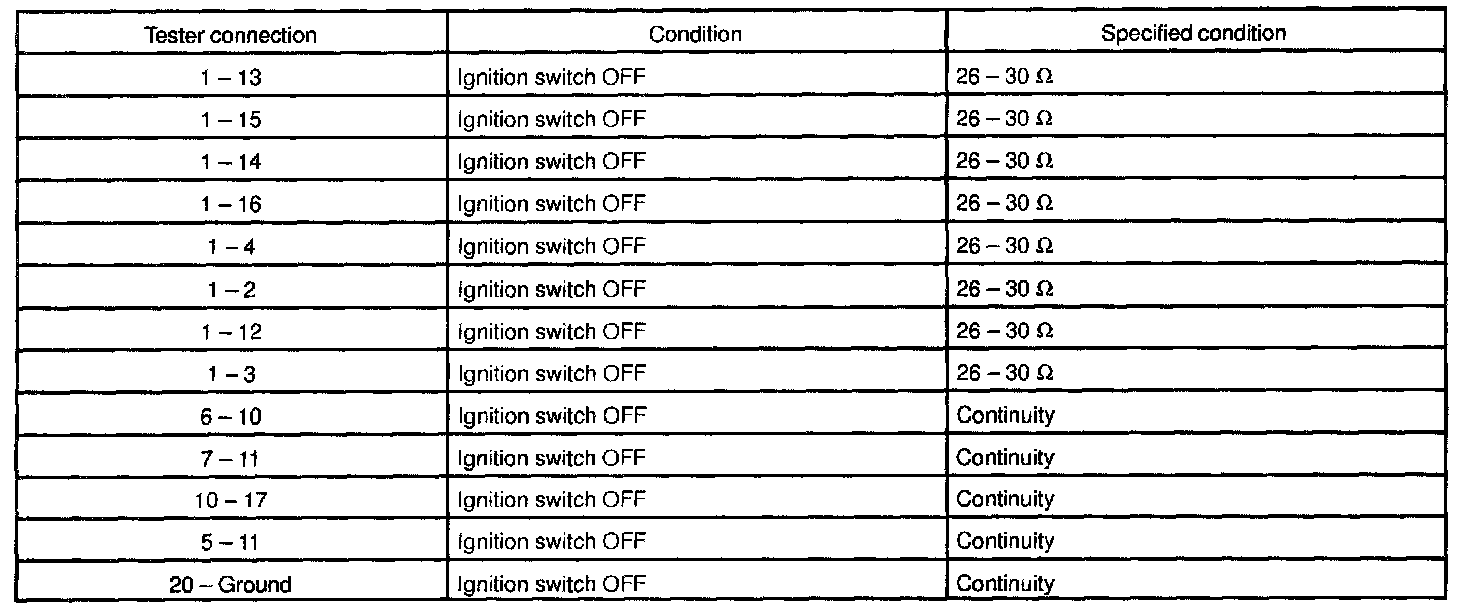

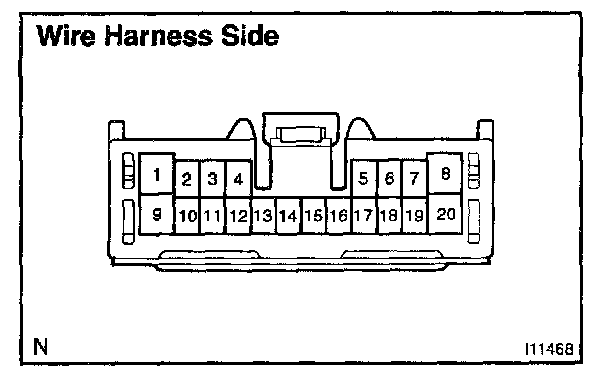

Disconnect the connector from the ECU and inspect the connector on the wire harness side, as shown.
If circuit is not as specified, perform the inspection.







3. Connector connected:
INSPECT HEADLIGHT BEAM LEVEL CONTROL ECU CIRCUIT

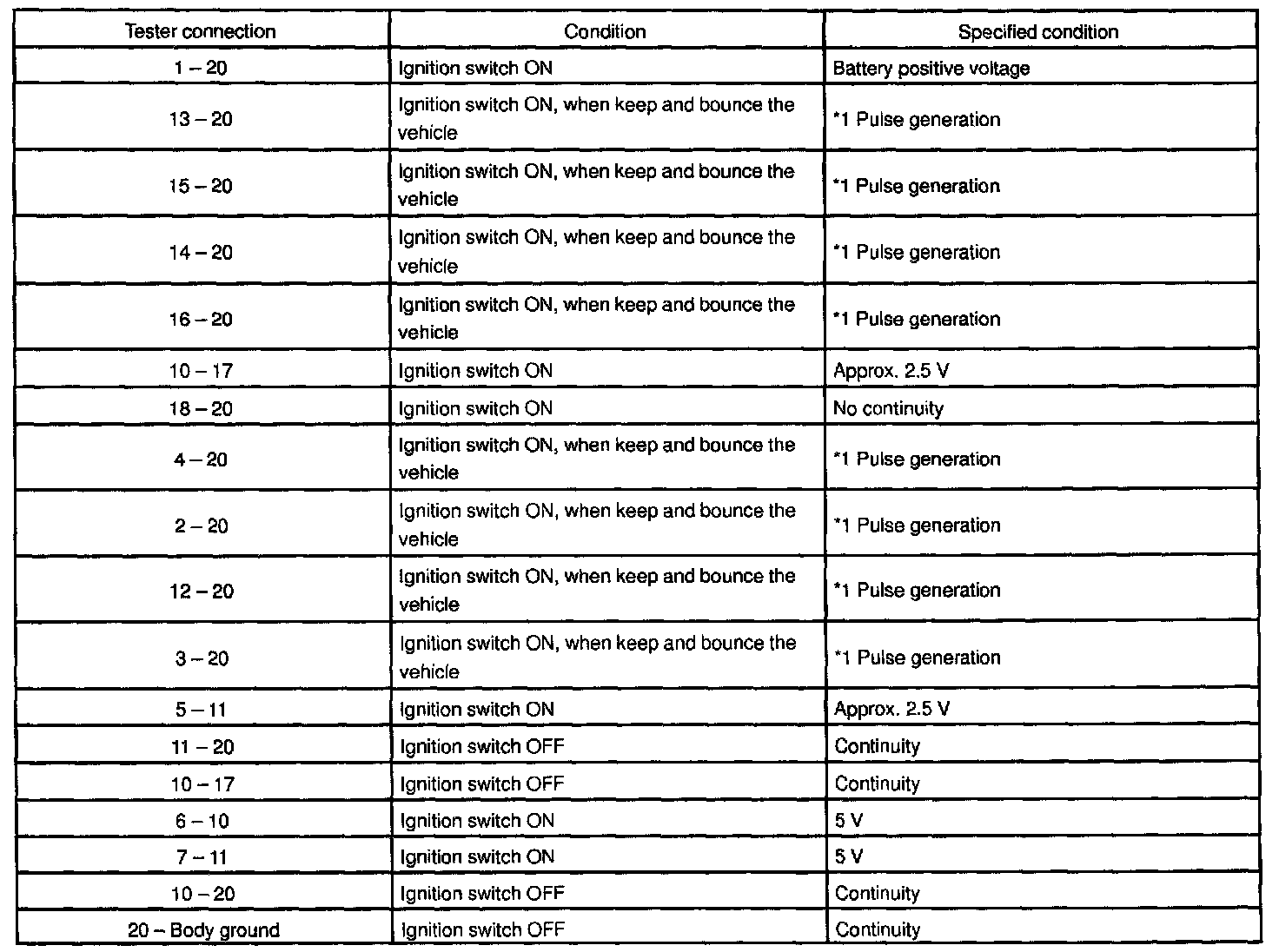

Connect the connector from the ECU and inspect the connector on the back side, as shown in the chart.
If the circuit is not as specified, replace the ECU.

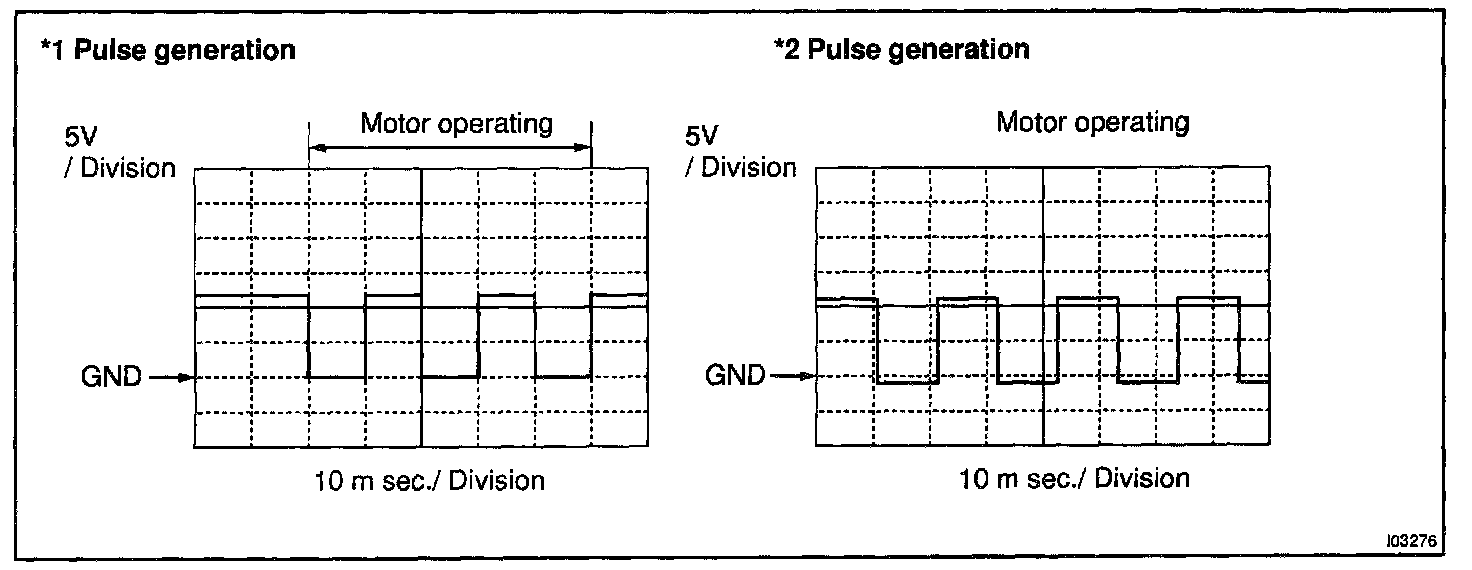

Reference INSPECTION USING OSCILLOSCOPE

HINT: The correct waveform is as shown in the illustration.
