Problem Symptoms Table

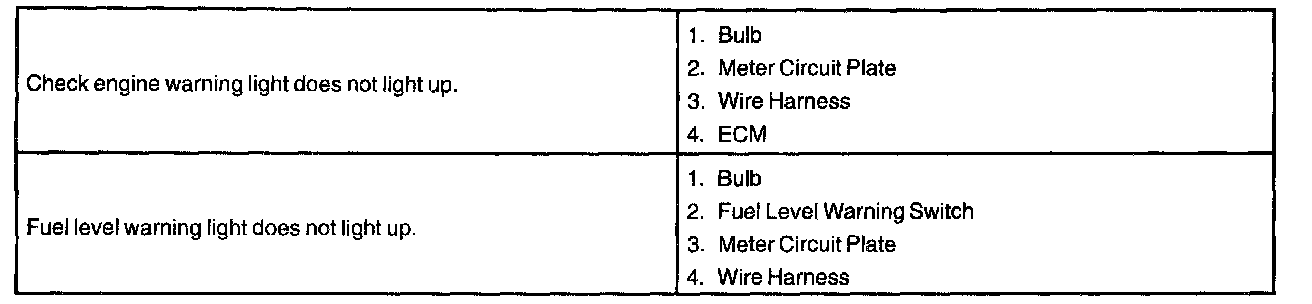

Problem Symptoms Table - Combination Meter Part 1:

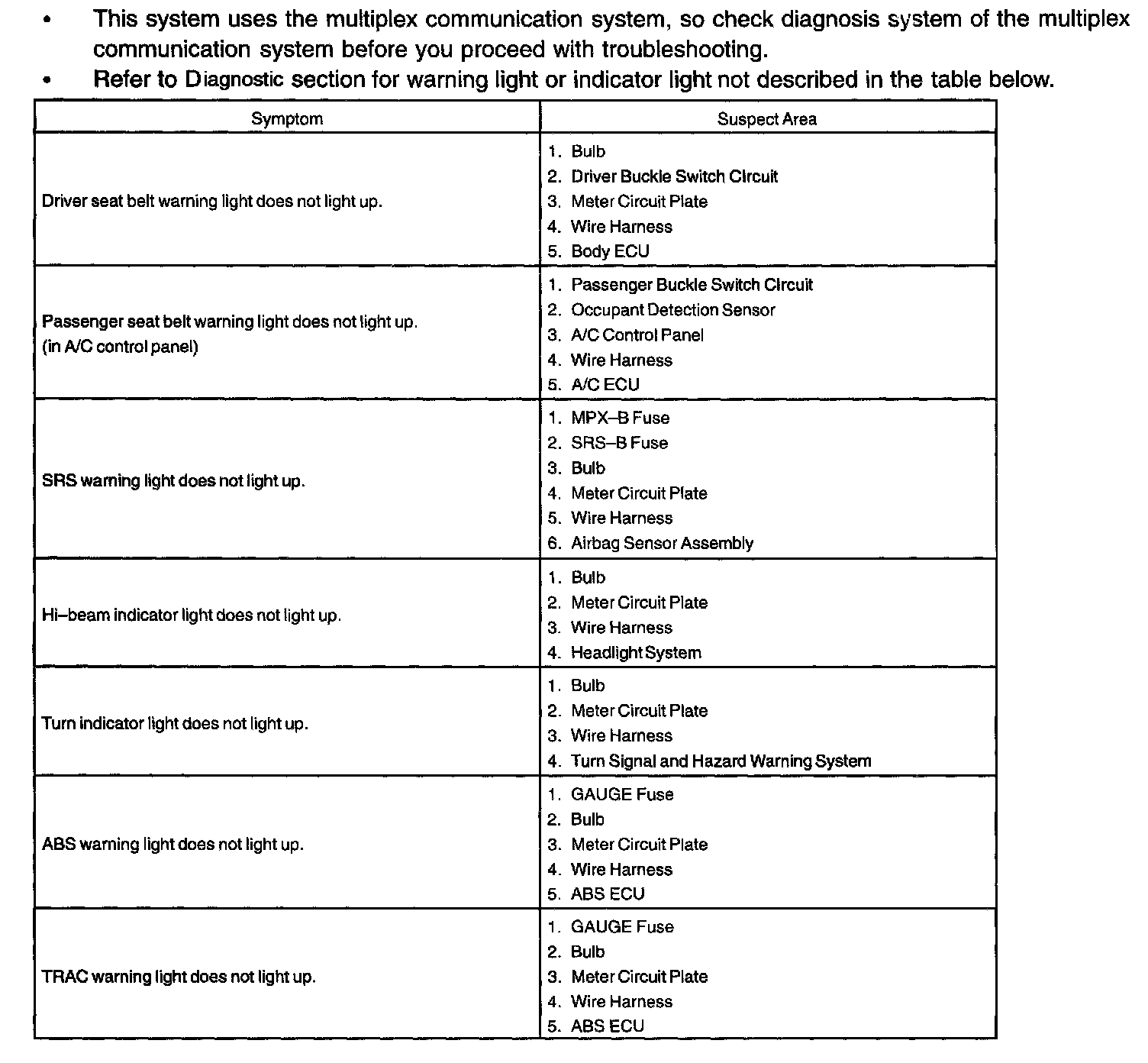

Problem Symptoms Table - Combination Meter Part 2:

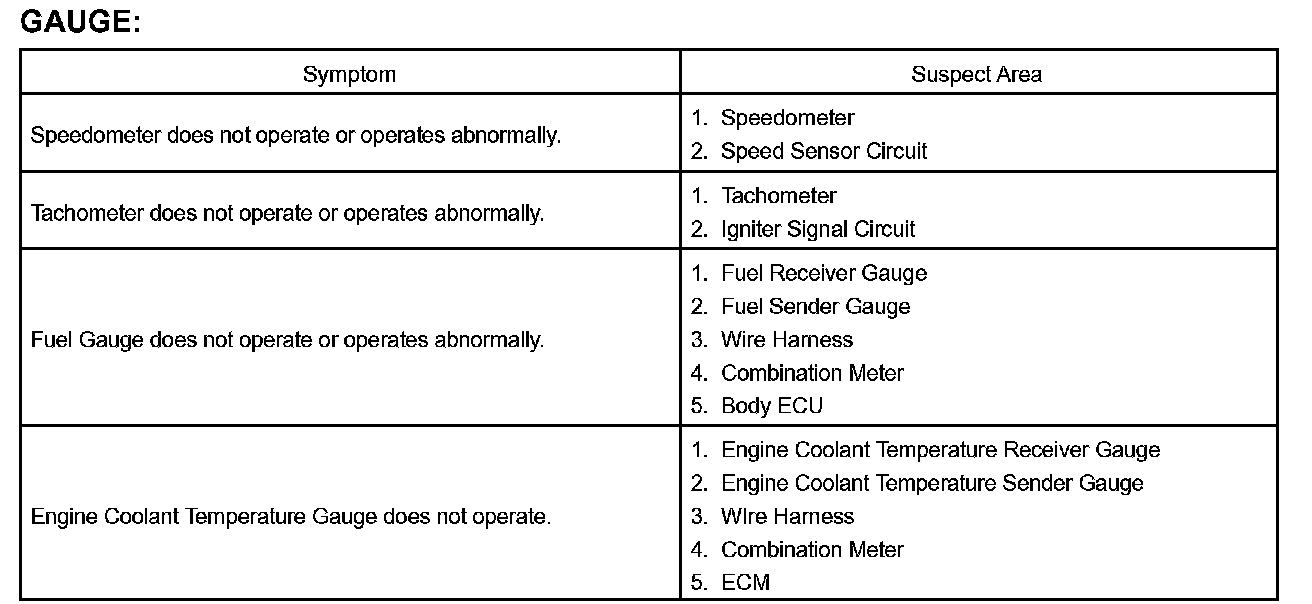

Problem Symptoms Table - Gauge:

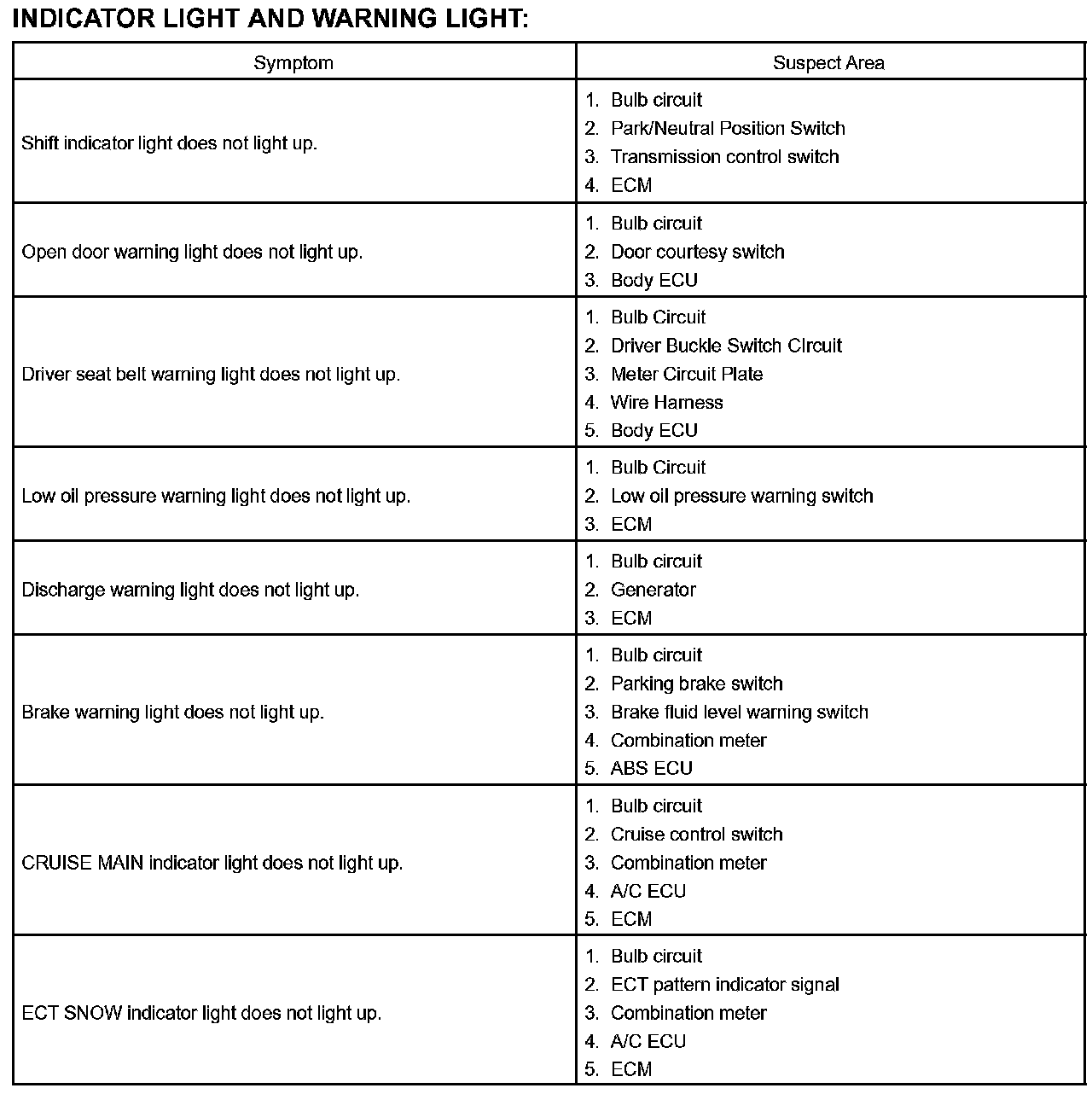

Problem Symptoms Table - Indicator Light And Warning Light Part 1:

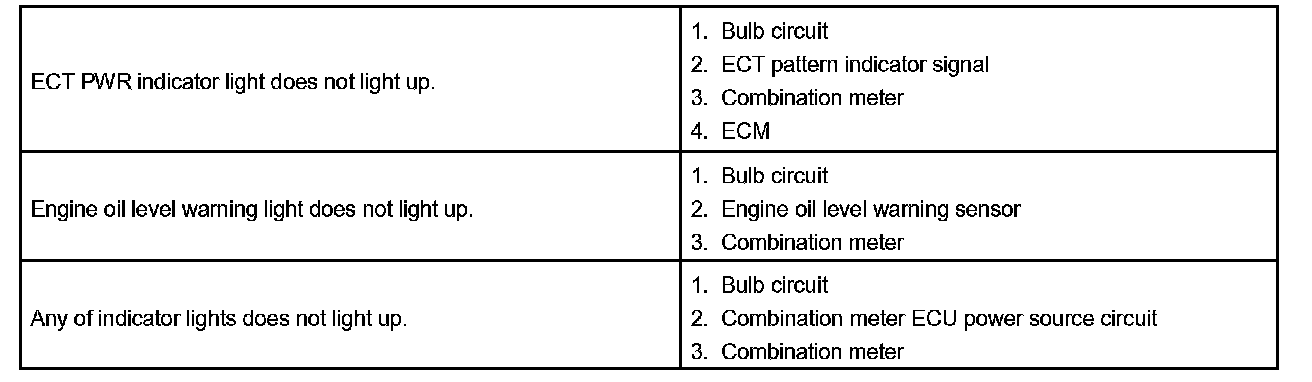

Problem Symptoms Table - Indicator Light And Warning Light Part 2:

COMBINATION METER
- This system uses the multiplex communication system, so check diagnosis system of the multiplex communication system before you proceed with troubleshooting.
- Refer to Diagnostics for warning light or indicator light not described in the table.
