Actuator Check

ACTUATOR CHECK

a. Connect the LEXUS hand-held tester to the DLC 3.
b. Turn the ignition switch to ON and LEXUS hand-held tester main switch ON.
c. Select the ACTIVE TEST mode on the LEXUS hand-held tester.

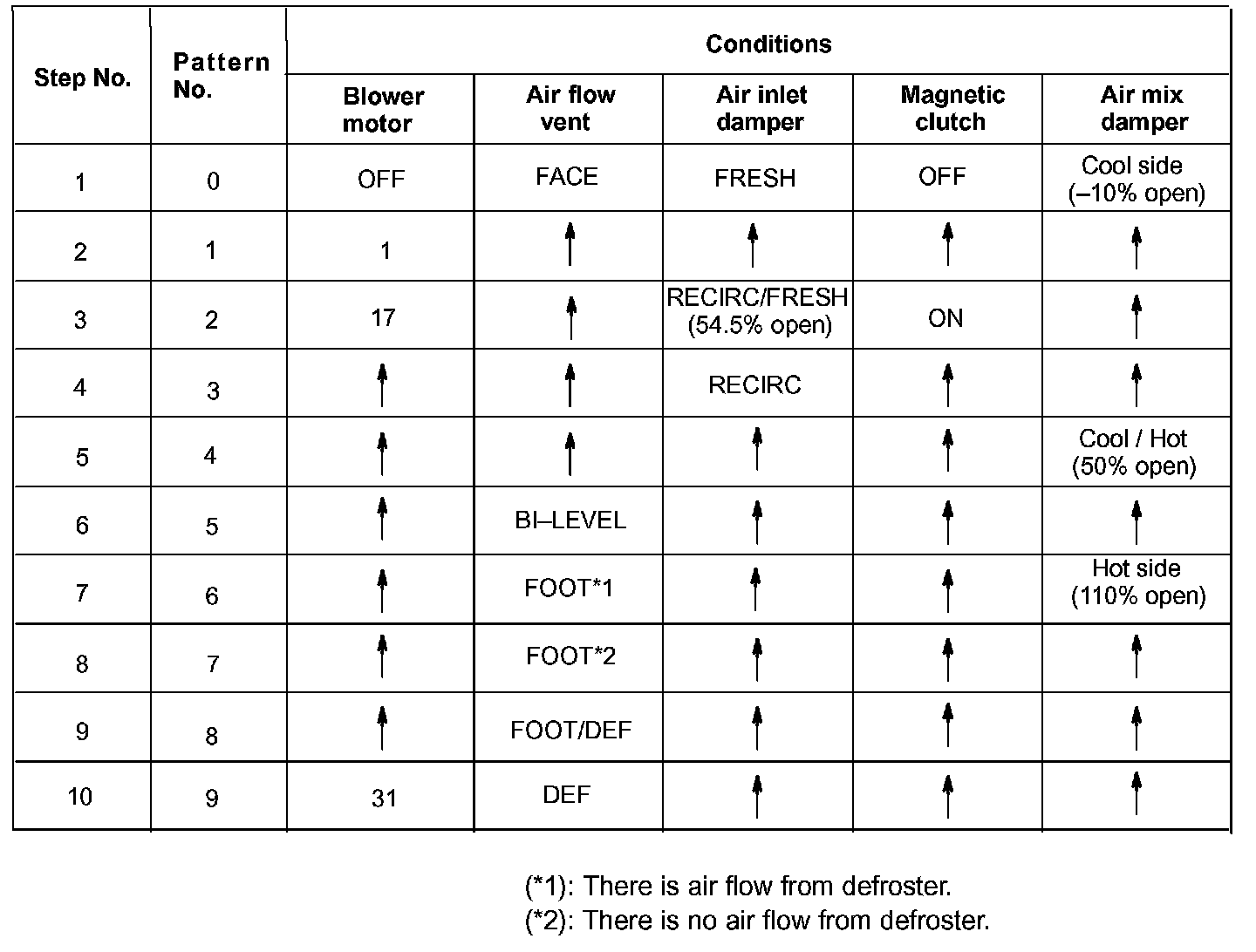

d. Check the temperature and air flow visually and manually.
