Removal and Installation

Air Conditioning Control Assembly (Part 1):

Air Conditioning Control Assembly (Part 2):

REMOVAL

1. REMOVE CENTER CLUSTER FINISH PANEL
2. REMOVE LOWER CENTER CLUSTER FINISH PANEL

3. REMOVE A/C CONTROL ASSEMBLY

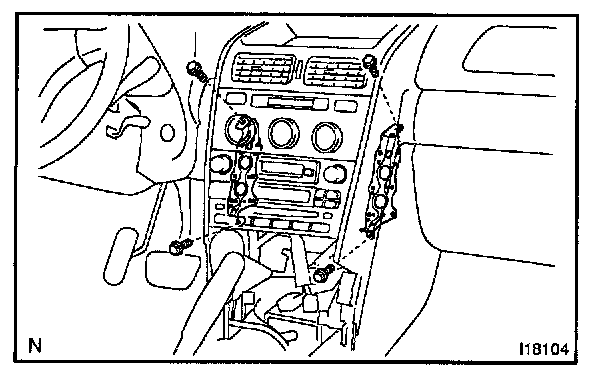

a. Remove the 4 bolts and pull out the A/C control assembly with radio assembly, then disconnect the connectors.

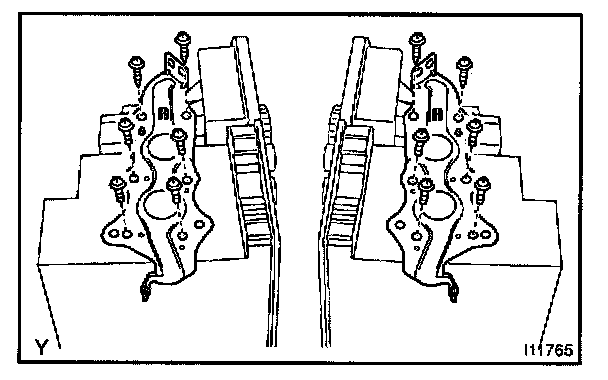

b. Remove the 12 screws and 2 brackets.
c. Separate the A/C control assembly and radio assembly.

INSTALLATION
Installation is in the reverse order of removal.
