Removal and Installation

Blower Unit:

BLOWER UNIT

REMOVAL

1. REMOVE INSTRUMENT PANEL

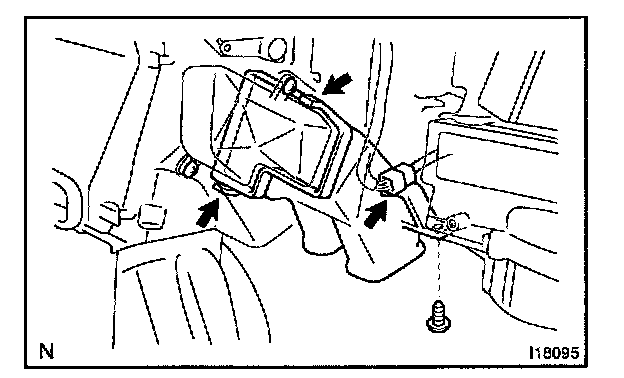

2. REMOVE AIR DUCT (DUCT SIDE)
a. Disconnect the connector and connector clamp.
b. Remove the screw.
c. Release the 2 claws and pull out the air duct.

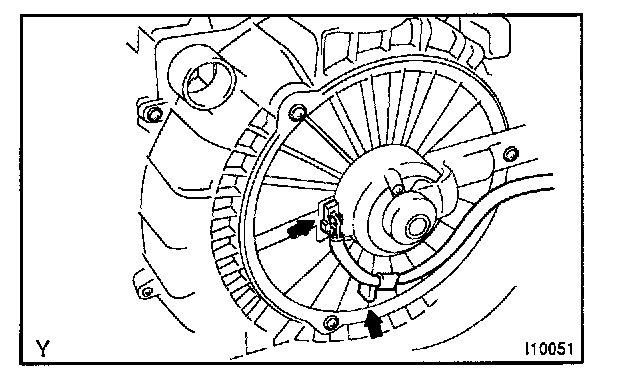

3. DISCONNECT WIRE HARNESS

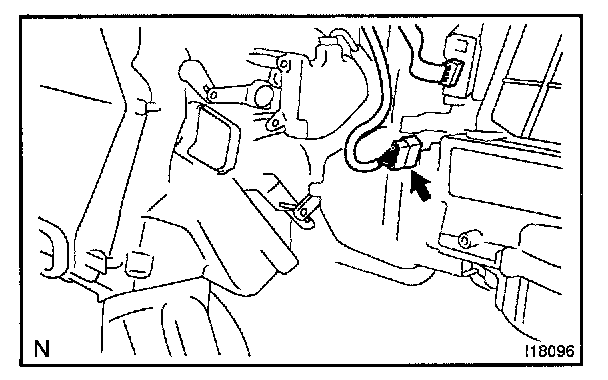

a. Disconnect the connector and connector clamp.




b. Remove the wire harness clamp and disconnect the connector.

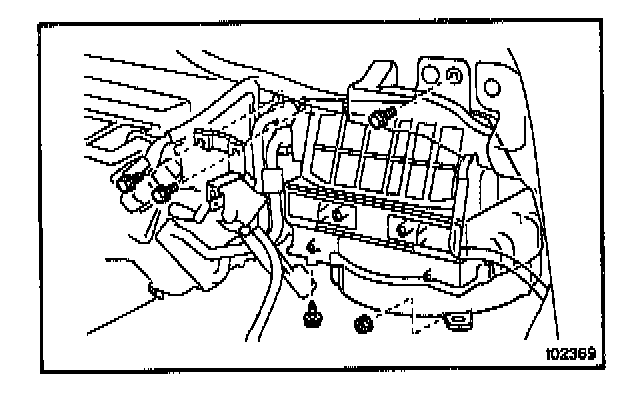

4. REMOVE BLOWER UNIT
a. Remove the 2 bolts and bracket.
b. Remove the bolt, screw and nut.
c. Release the claw and remove the blower unit.

INSTALLATION
Installation is in the reverse order of removal.
