Temperature Sensor (Gauge): Testing and Inspection

INSPECT WATER TEMPERATURE RECEIVER GAUGE OPERATION







INSPECT WATER TEMPERATURE RECEIVER GAUGE RESISTANCE

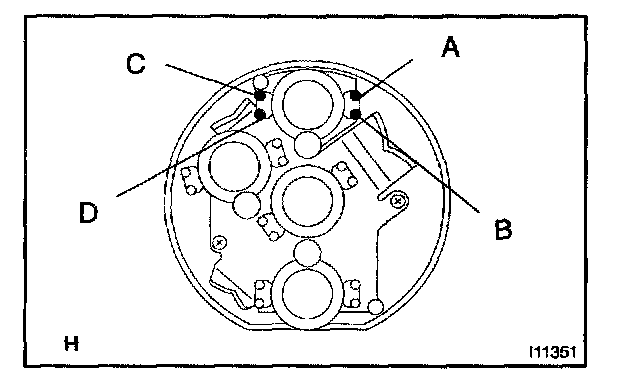

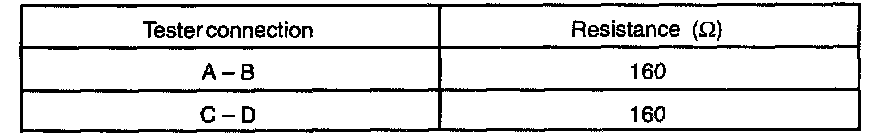

Measure the resistance between terminals with fixing pointer to the stopper.
If resistance value is not as specified, replace the receiver gauge.

HINT: This circuit includes the diode.

If resistance value is not as specified, replace the receiver gauge.
