Home >> Lexus >> 2005 >> IS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Diagrams >> Connectors

Connectors

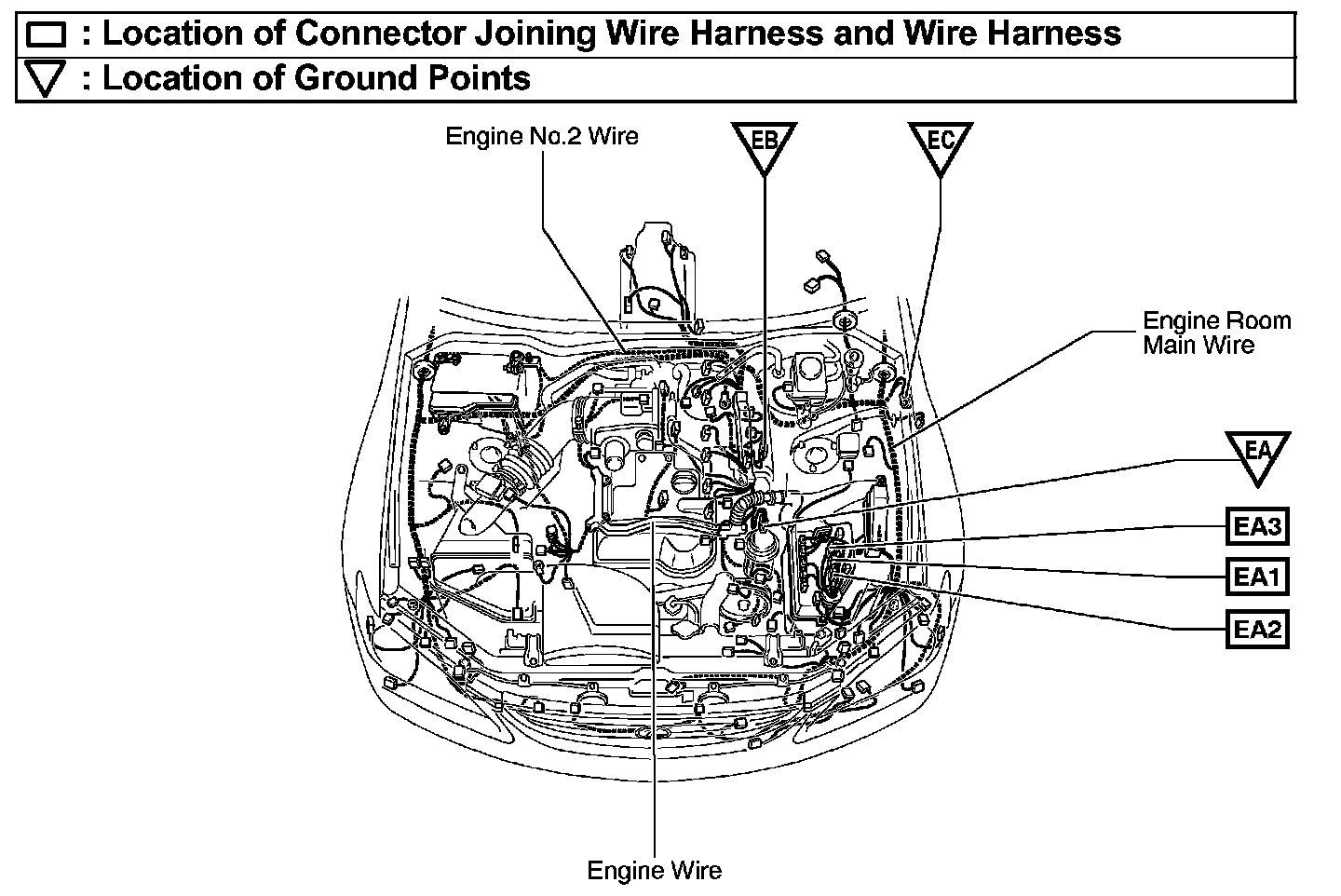

EA - EC, EA1 - EA3:

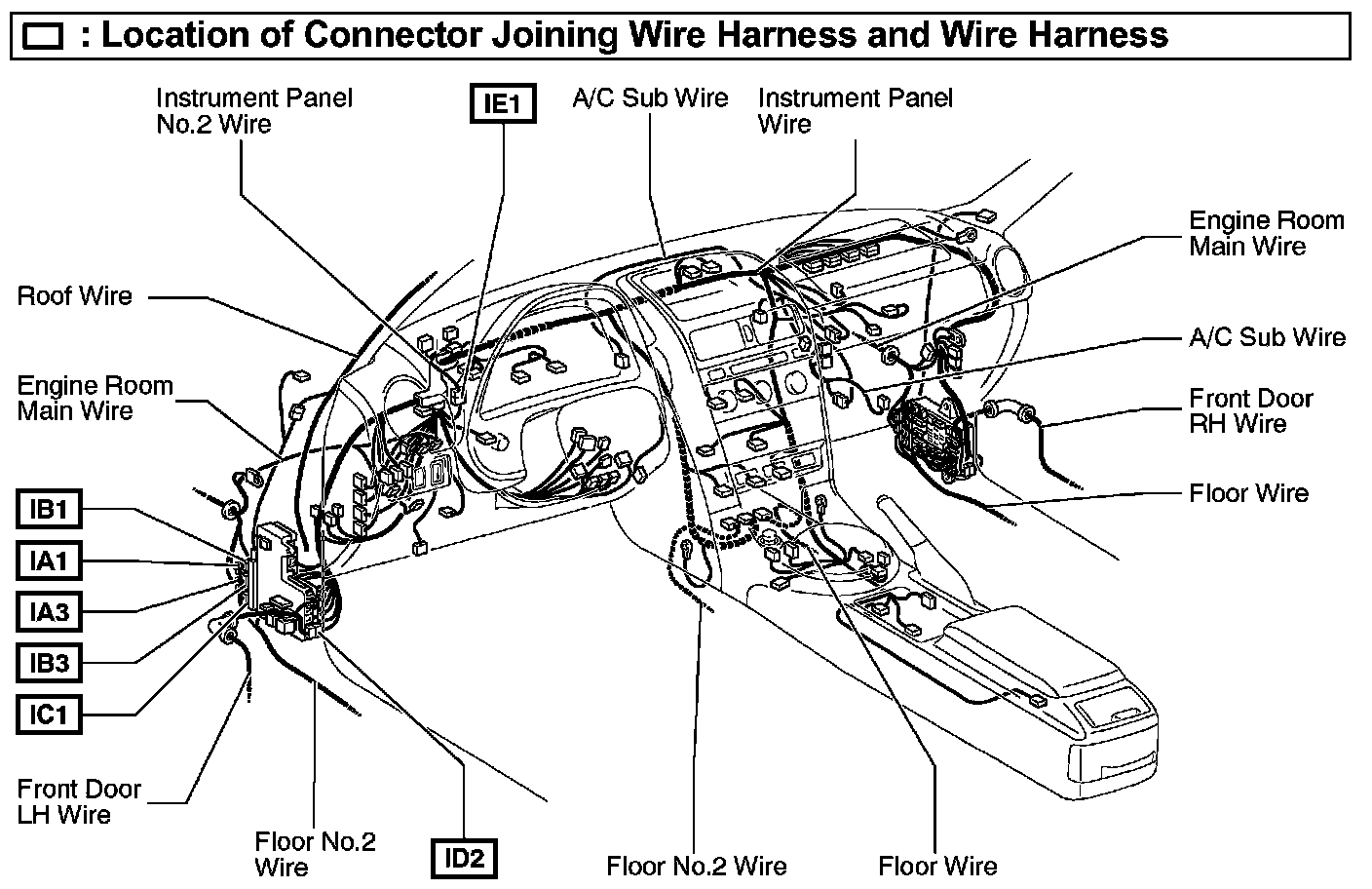

IA1 - IE1:

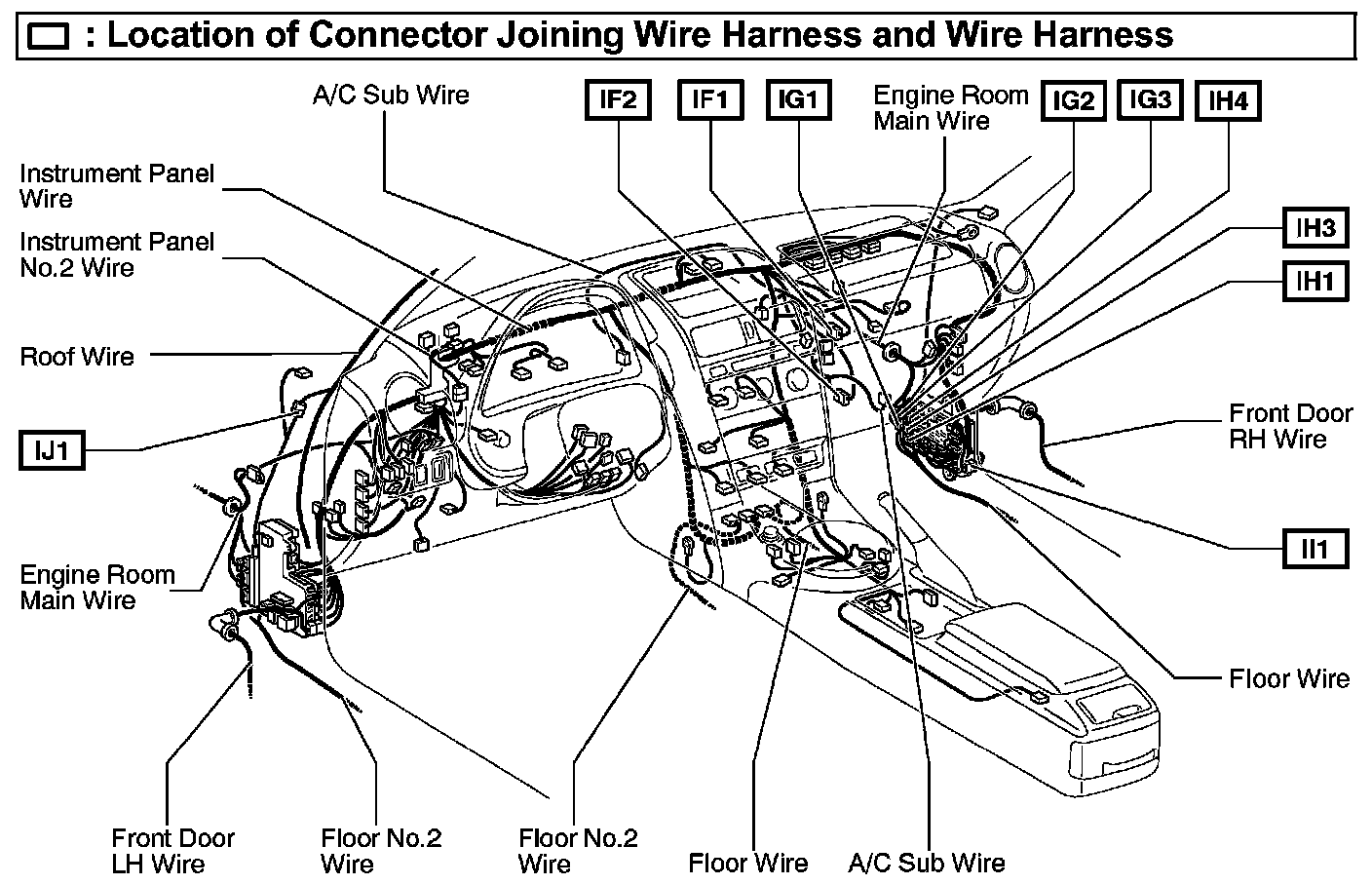

IF1 - IJ1:

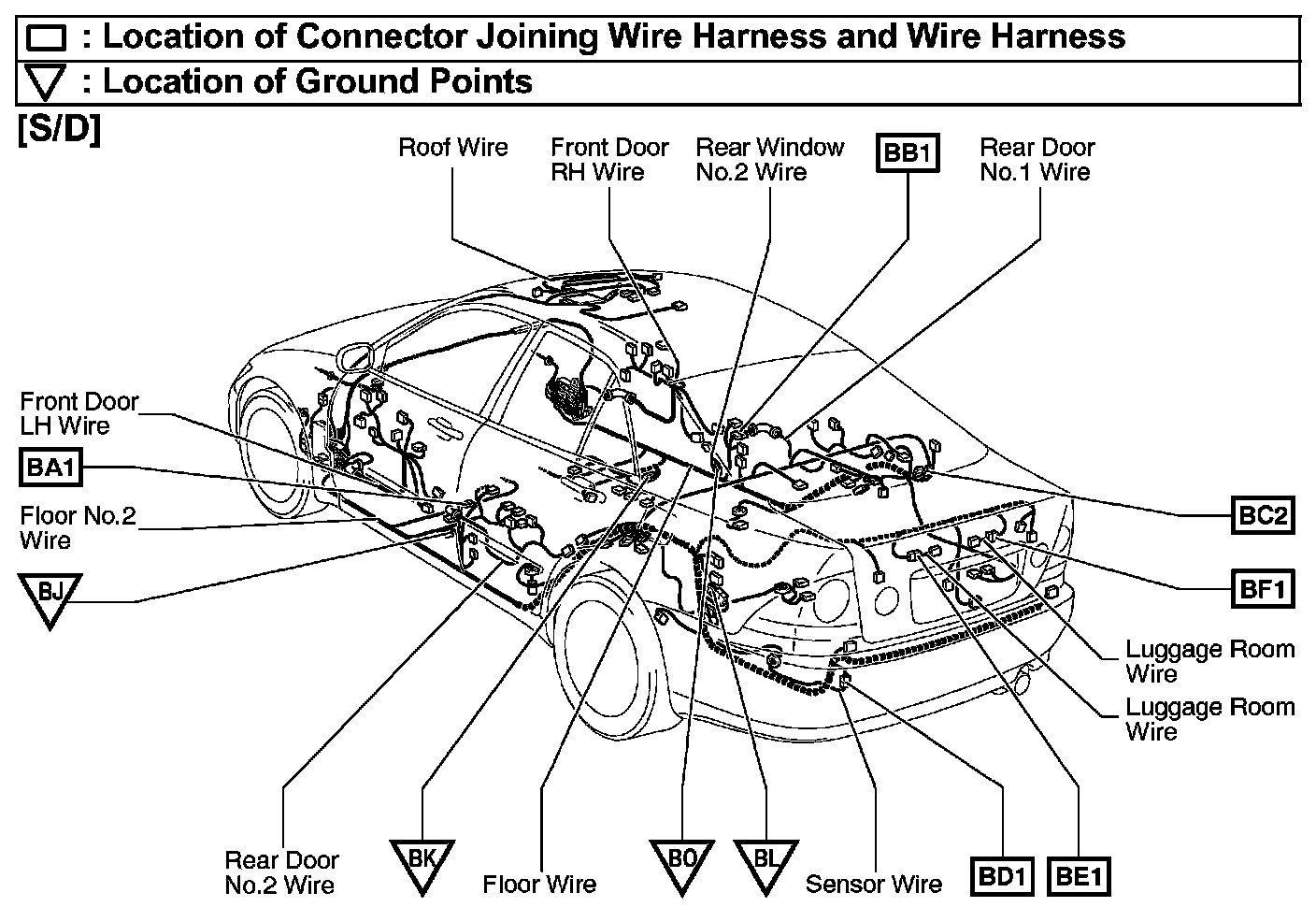

BA1 - BF1, BJ - BO:

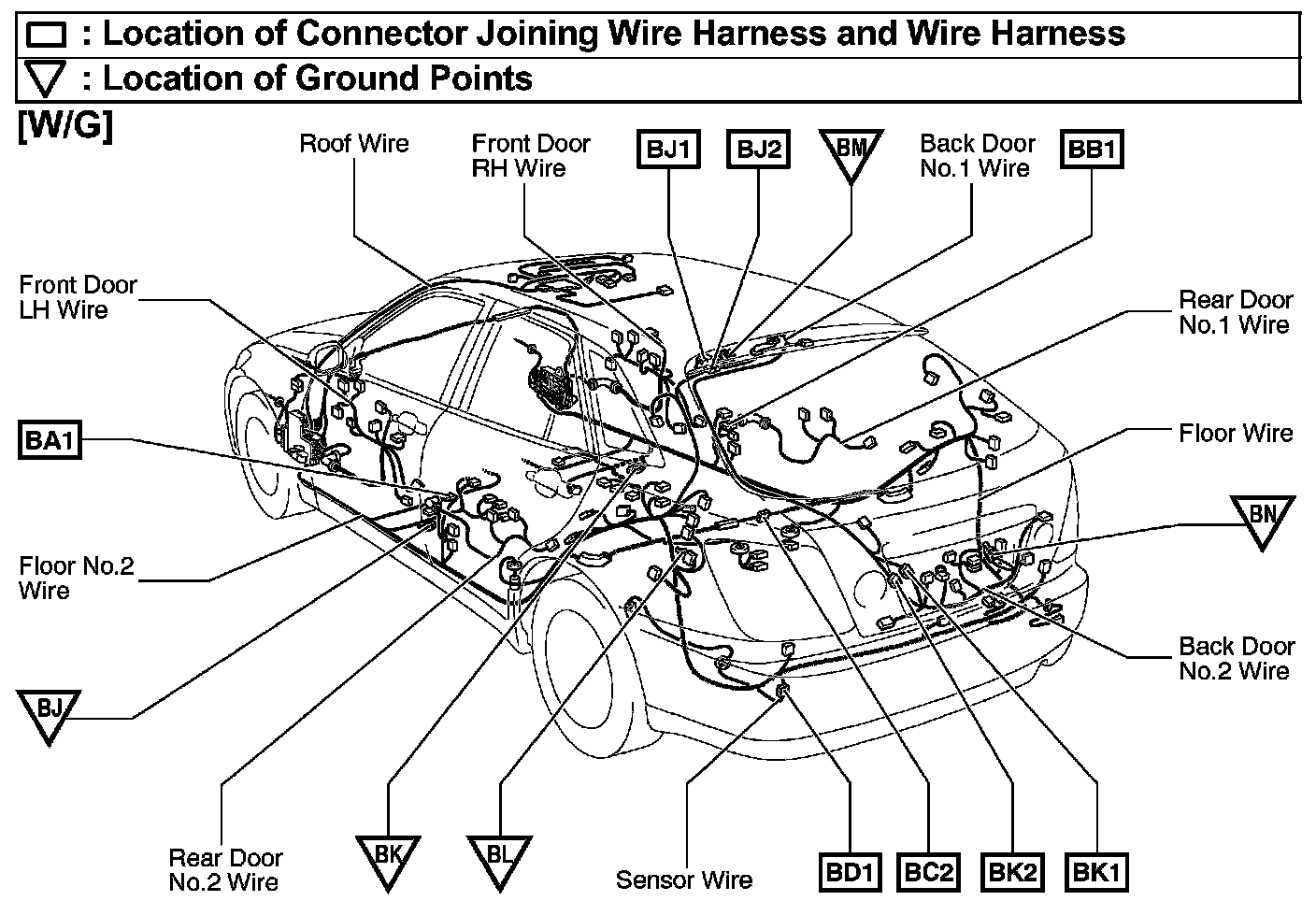

BA1 - BK2, BJ - BN:

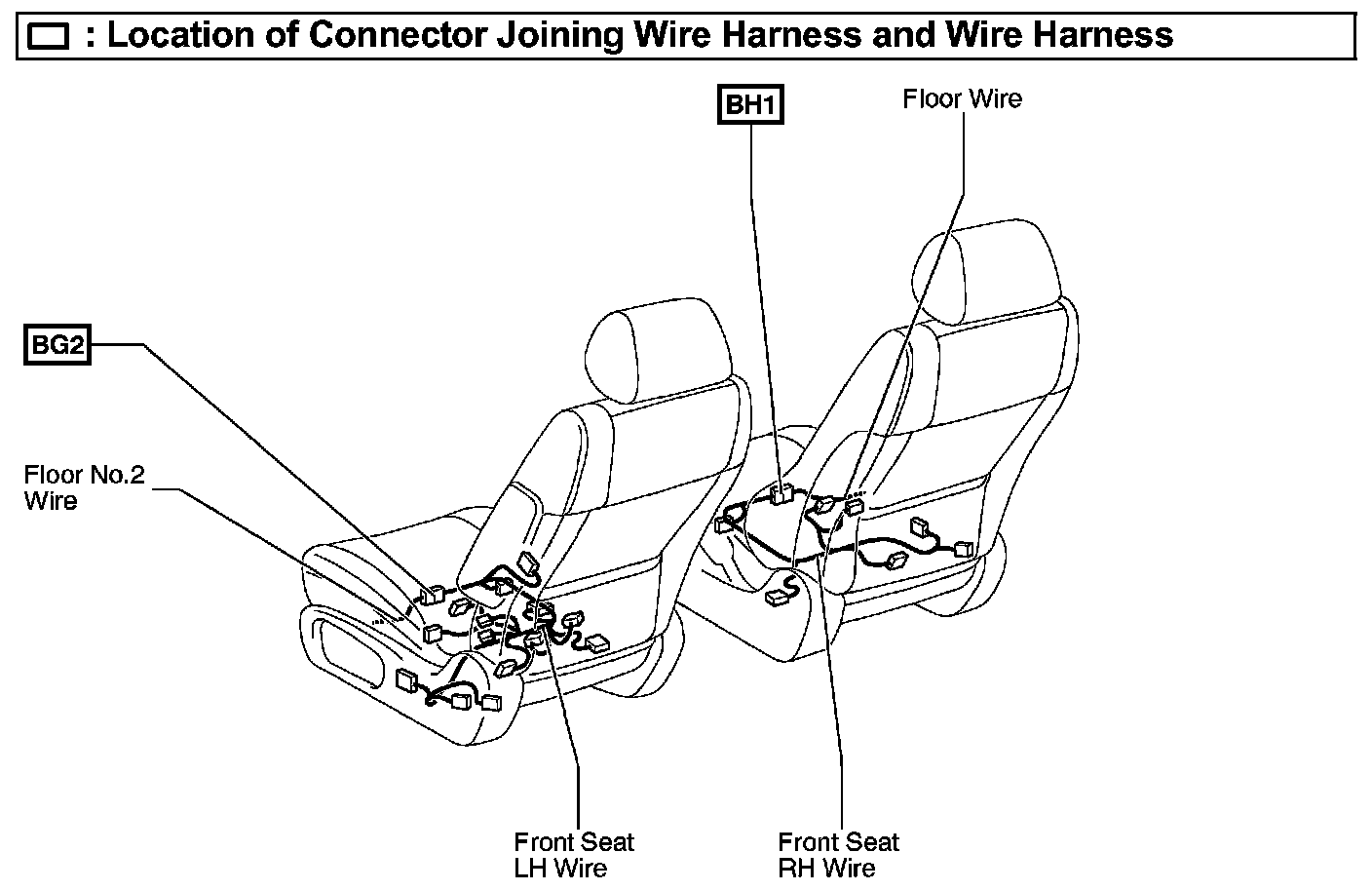

BH1 - BG2:
