Home >> Lexus >> 2005 >> IS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By Connector Number >> S10 - V5

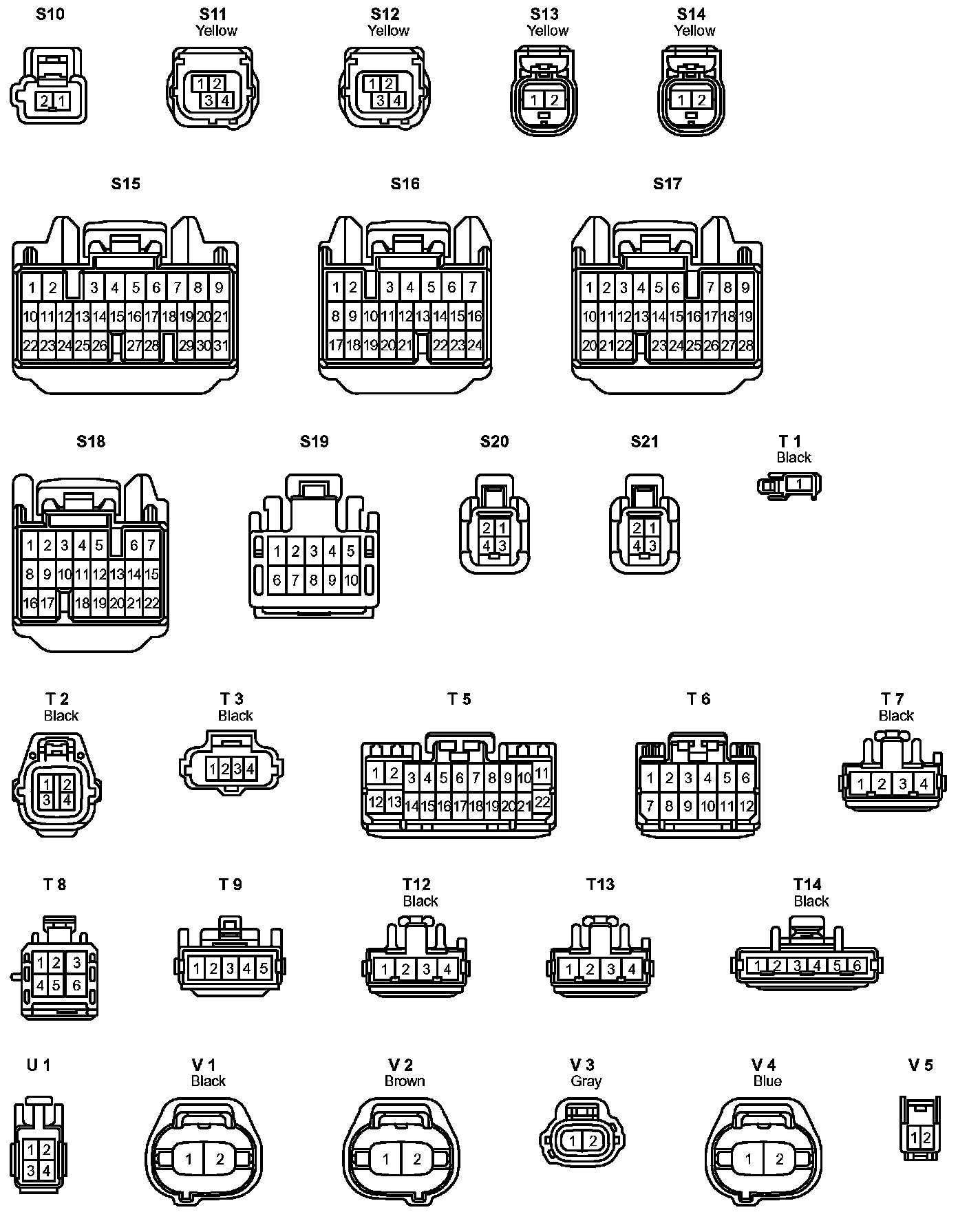

S10 - V5

S10 - V5:
