Cruise Control Switch Circuit

Cruise Control Switch Circuit

CIRCUIT DESCRIPTION
This circuit carries the SET/COAST, RESUME/ACCEL and CANCEL signal (each voltage) to the ECM.

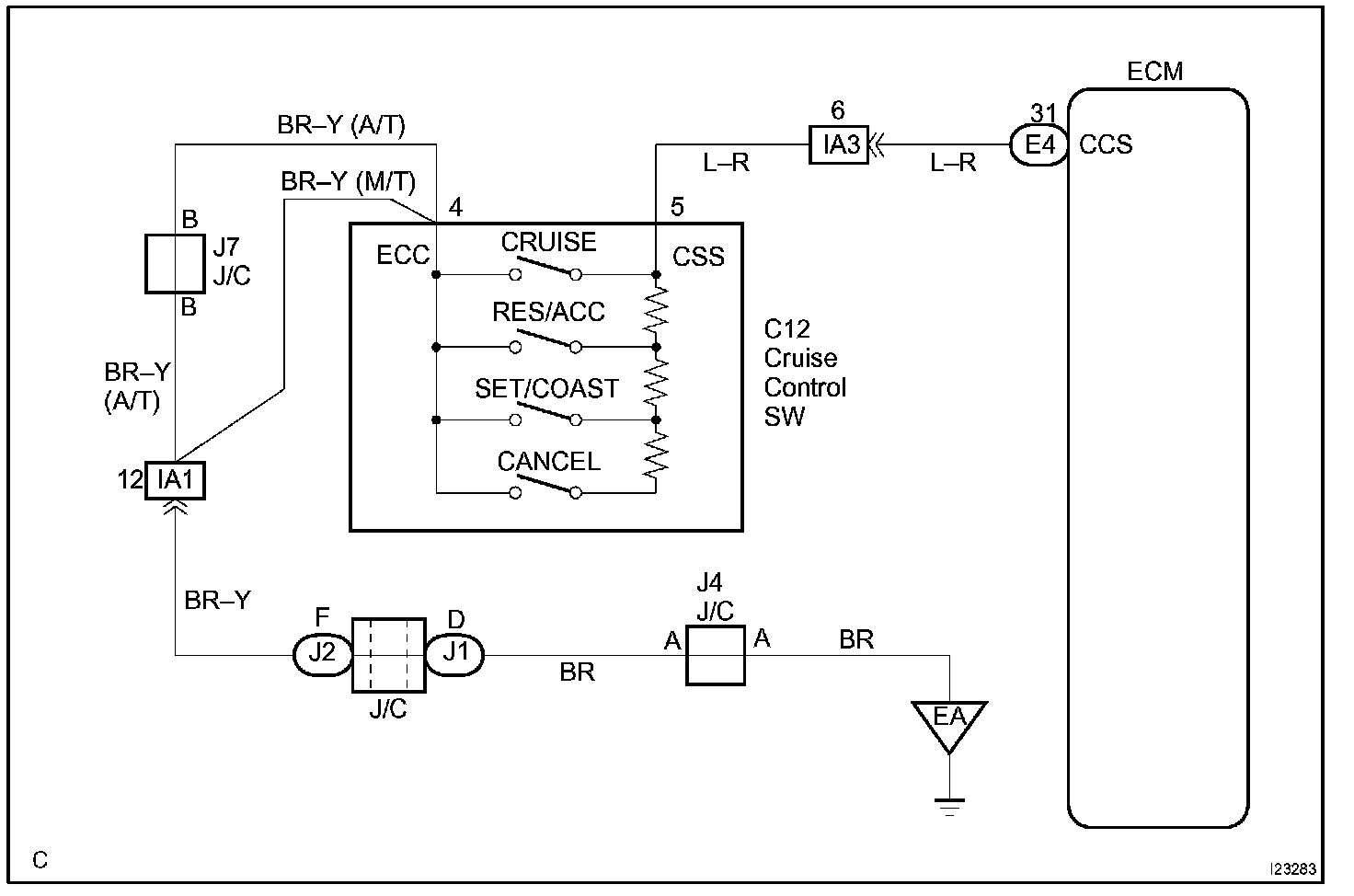

Wiring Diagram:

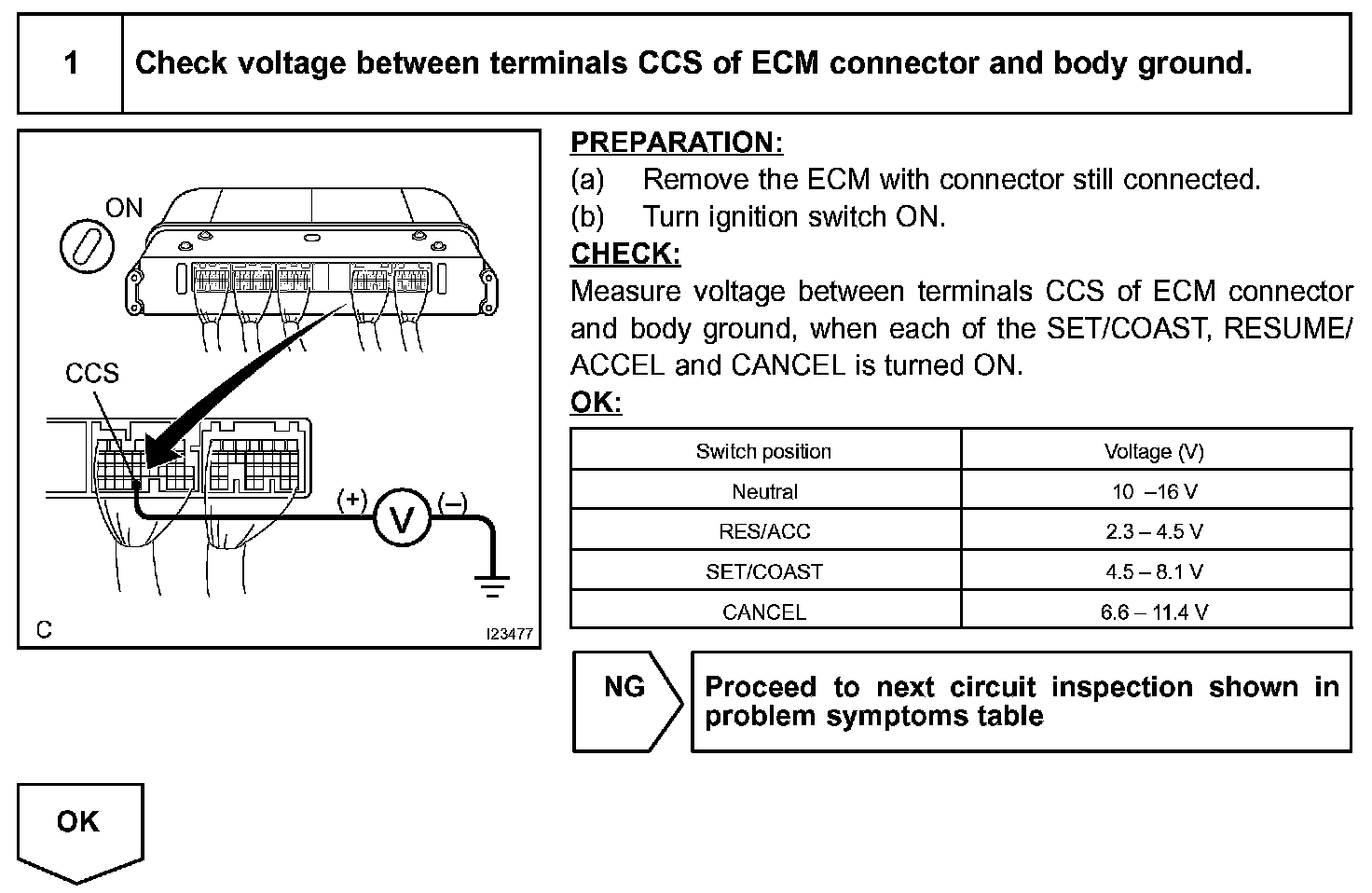

Step 1:

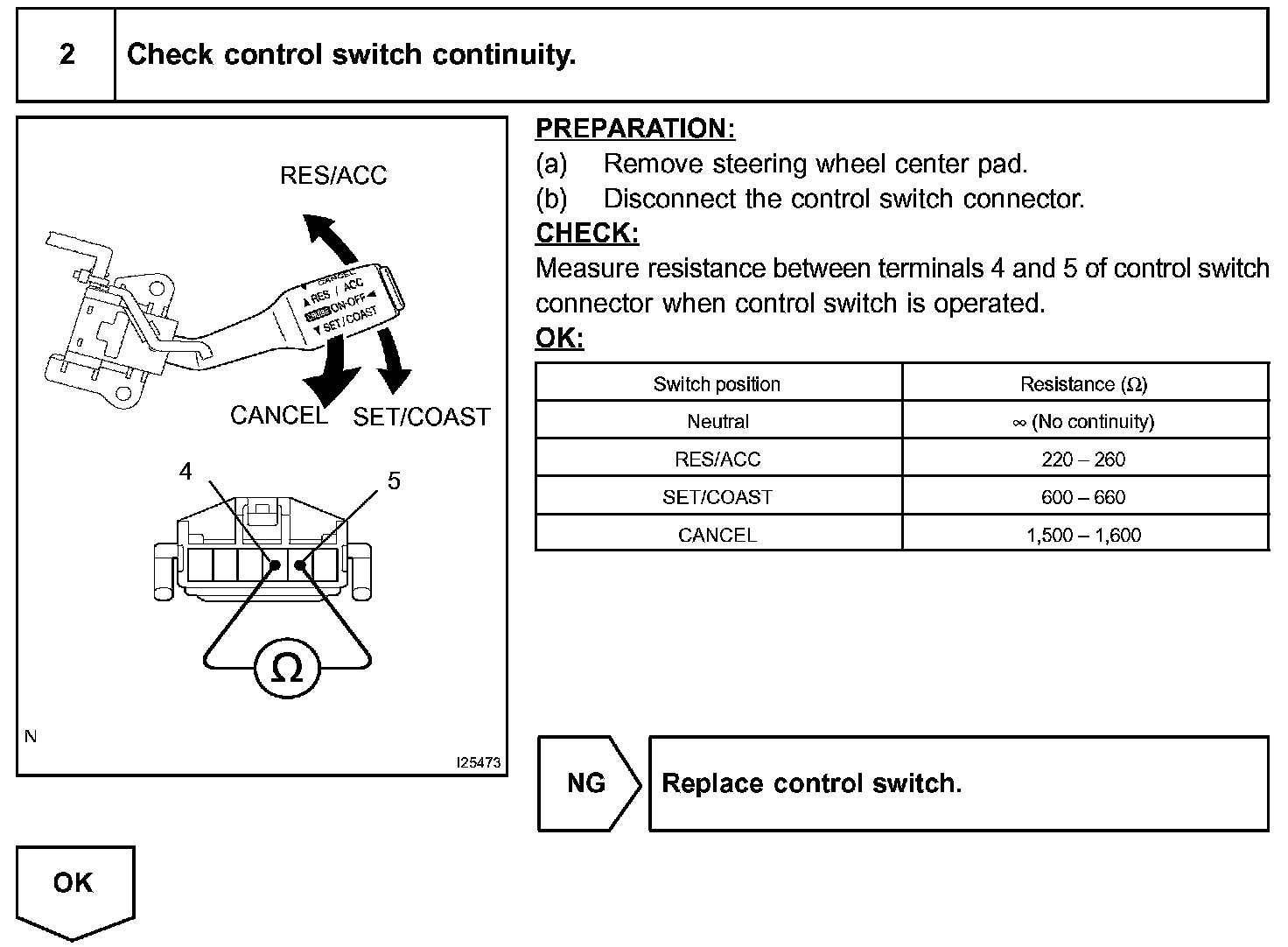

Step 2:

Step 3 - 4:

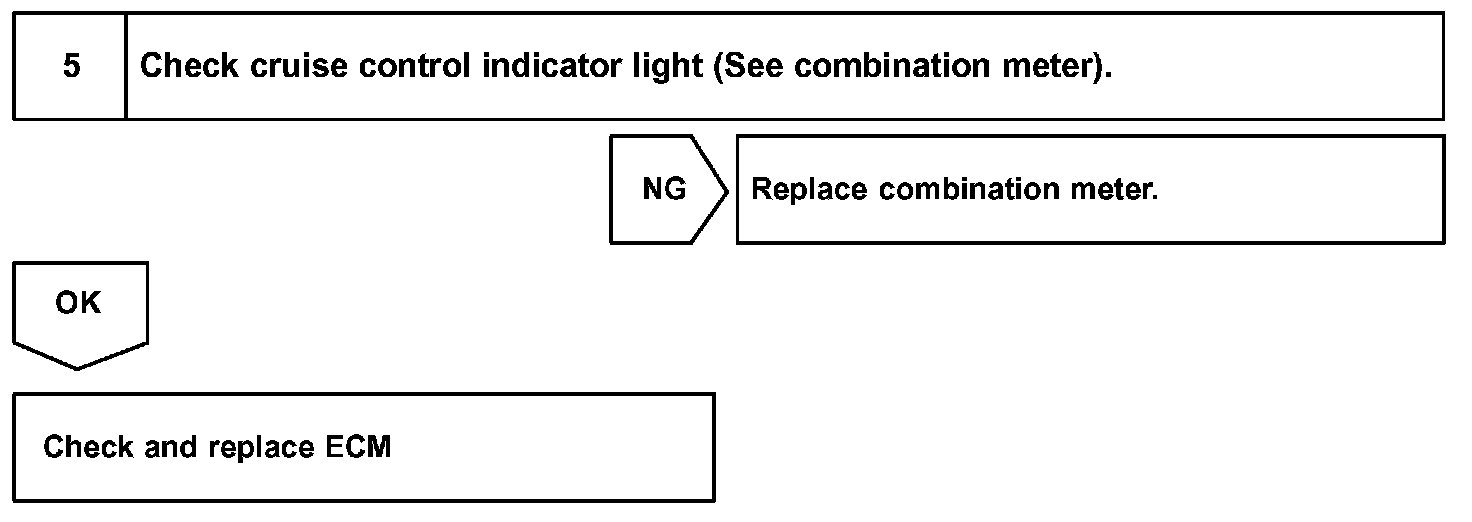

Step 5:

INSPECTION PROCEDURE
