Clutch Switch Circuit (M/T)

Clutch Switch Circuit (M/T)

CIRCUIT DESCRIPTION
When the clutch pedal is depressed, the clutch switch sends a signal to the ECM. When the signal is input to the ECM during cruise control driving, the ECM cancels the cruise control.

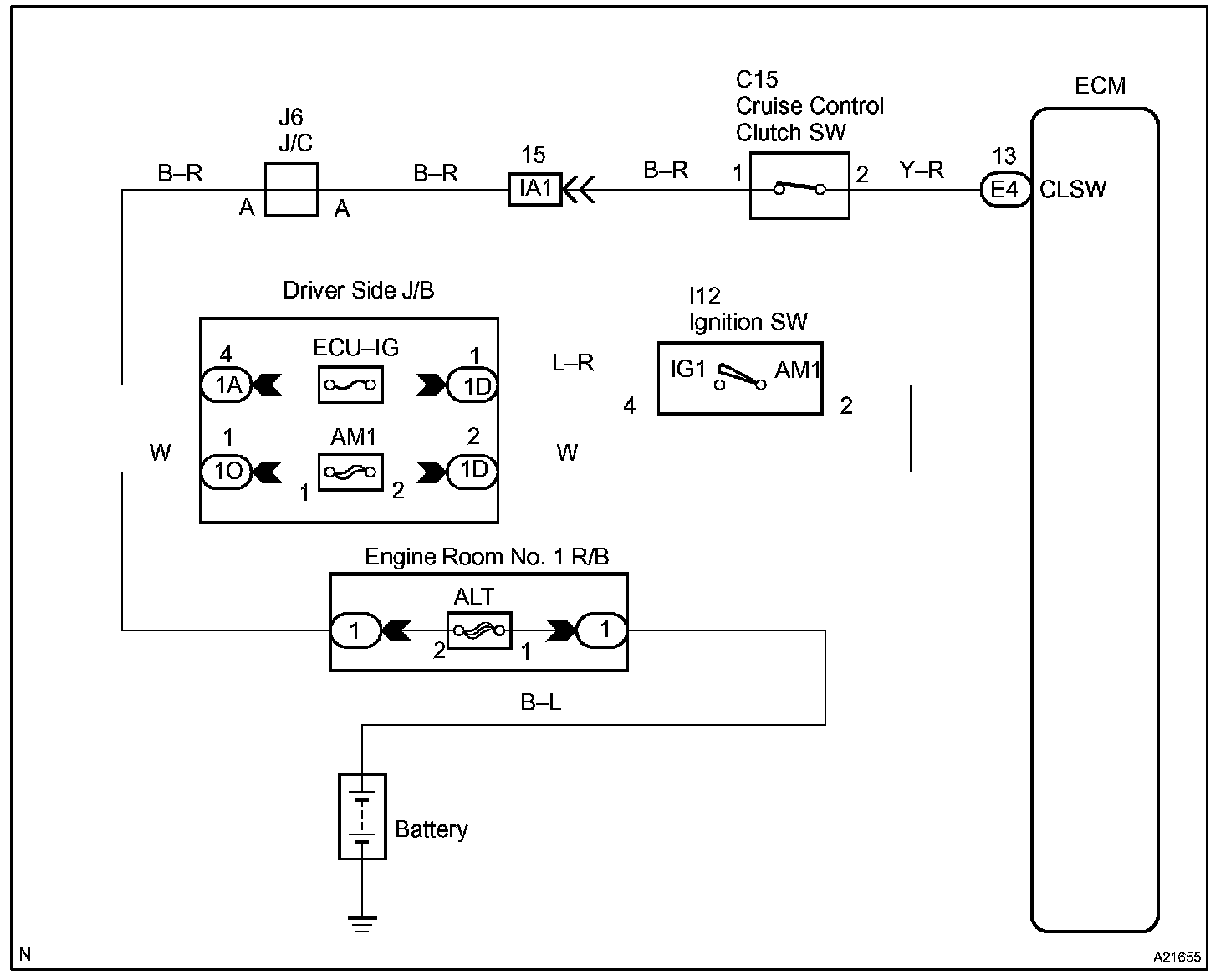

Wiring Diagram:

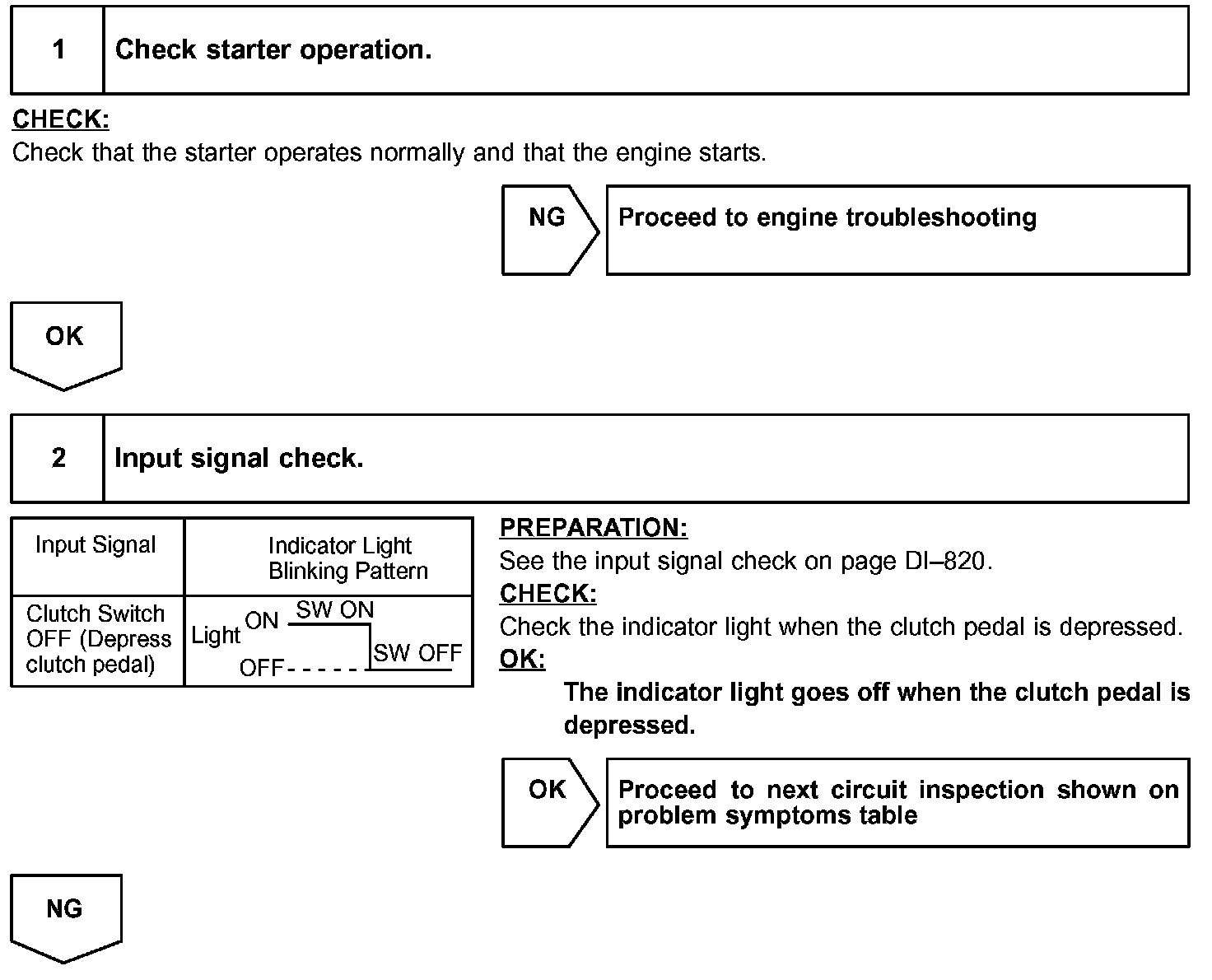

Step 1 - 2:

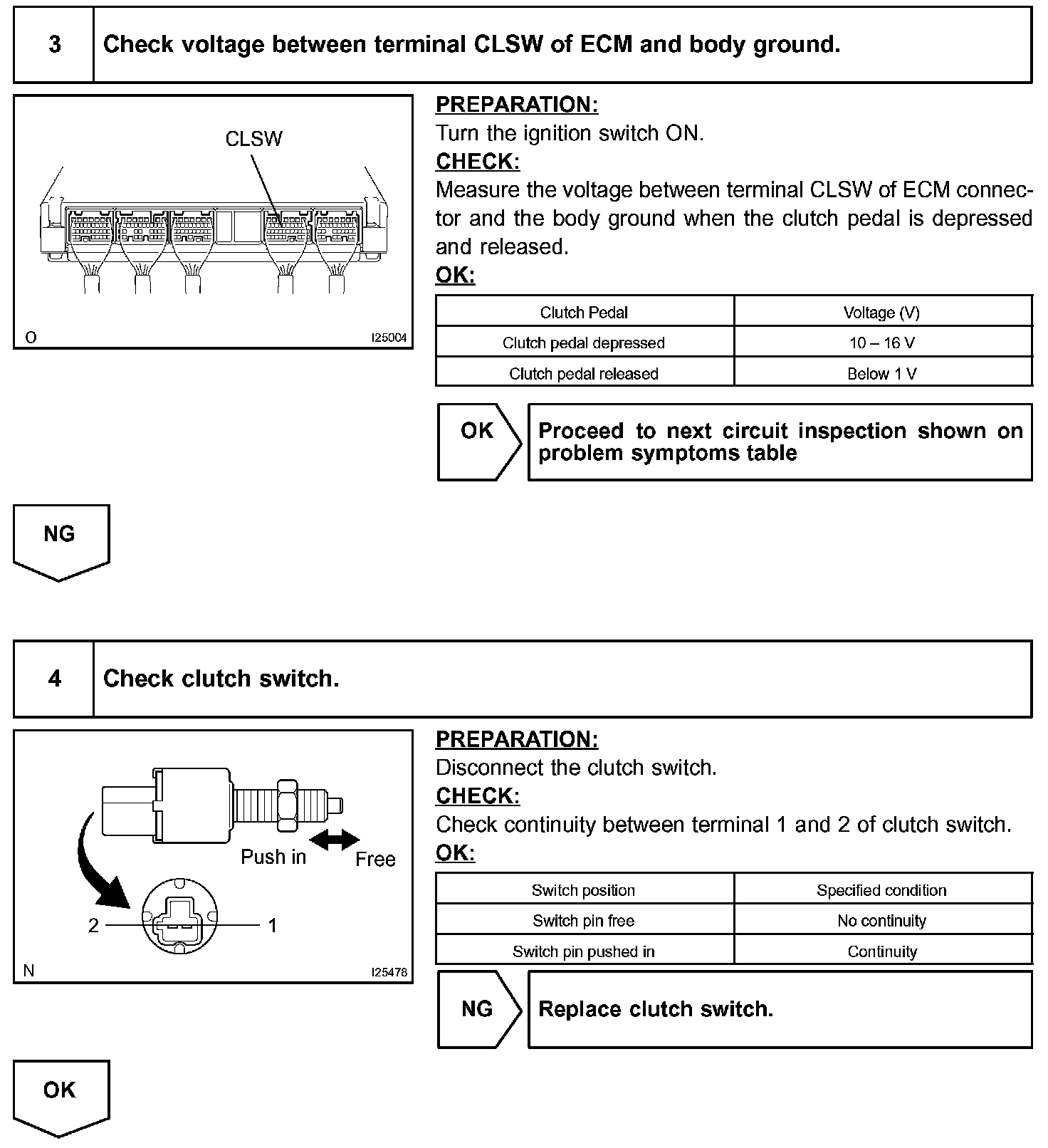

Step 3 - 4:

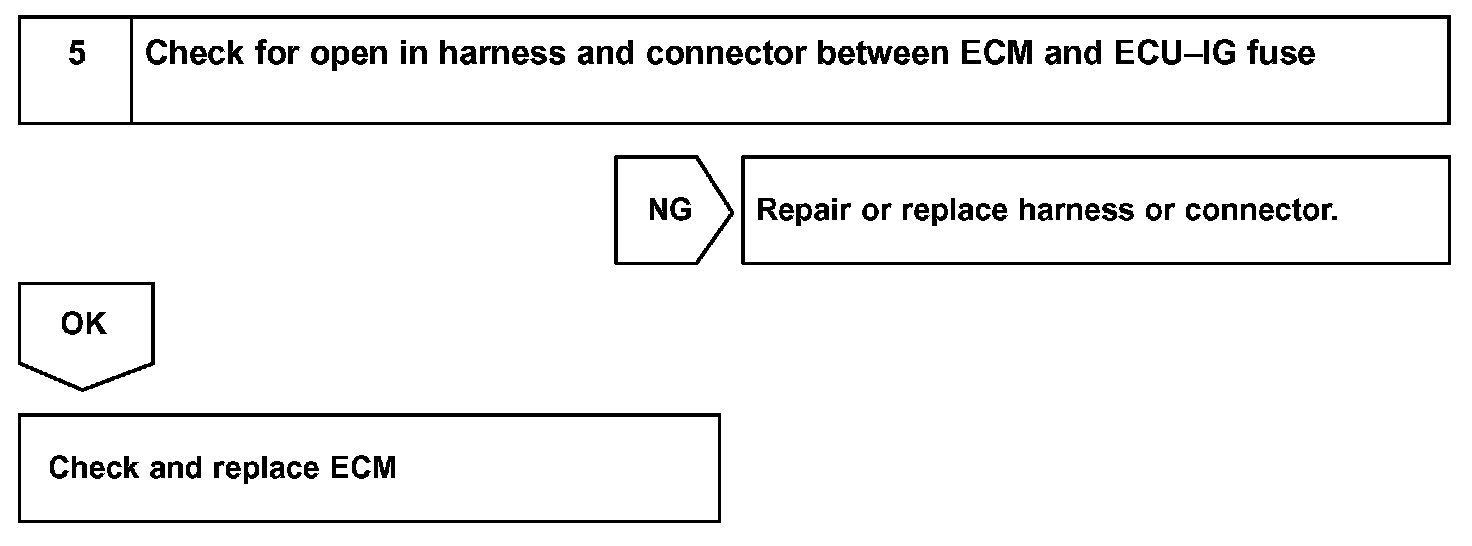

Step 5:

INSPECTION PROCEDURE
