Description of On-Board Diagnostics

DIAGNOSIS SYSTEM




ECM controls the function of the cruise control on a vehicle.

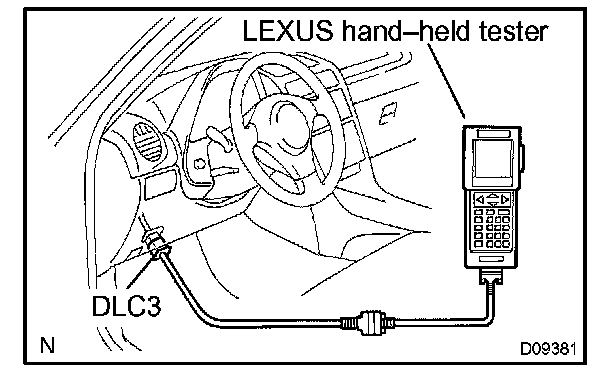

Data on the cruise control and on the DTC can be read from the DLC3 on the vehicle. If CRUISE MAIN indicator does not comes on after the DTC check, there is a malfunction on the cruise control.

Use the LEXUS hand-held tester or SST to check and solve the problem.
