Removal and Installation

REMOVAL
1. TAKE OUT FLUID WITH SYRINGE

NOTICE: Do not let brake fluid remain on a painted surface. Wash it off immediately.

2. DISCONNECT BRAKE FLUID LEVEL SWITCH CONNECTOR





3. DISCONNECT BRAKE LINES

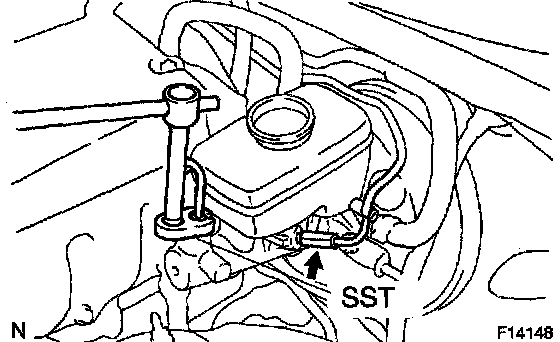

Using SST, disconnect the 2 brake lines.
SST 09023-00100
Torque: 15 Nm (155 kgf-cm, 11 ft. lbs.)





4. REMOVE MASTER CYLINDER
a. Disconnect the 2 brake hoses.

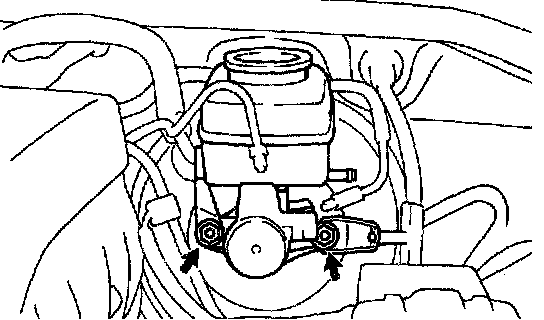

b. Remove the 2 nuts, and pull out the check valve bracket, brake hose clamp, master cylinder and gasket.
Torque: 13 Nm (130 kgf-cm, 9 ft. lbs.)

INSTALLATION
Installation is in the reverse order of removal.

HINT:
- Before installation, adjust length of brake booster push rod. After installation, fill the brake reservoir with brake fluid, bleed brake system, and check for leaks.
- Check and adjust brake pedal.
