Without Scan Tool

Check the DTC

In case of not using hand-held tester:

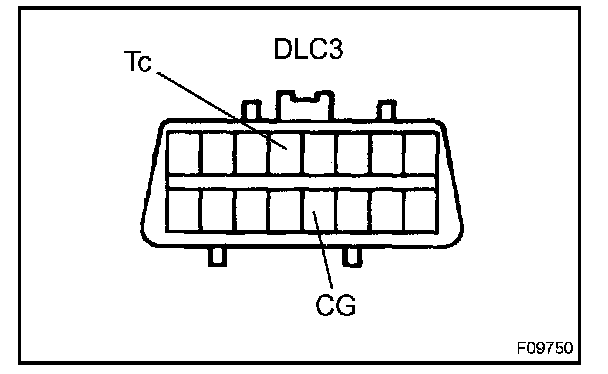

1. Using SST, connect terminals Tc and CG of DLC3.

SST 09843-18040

2. Turn the ignition switch ON.
3. Read the DTC from the ABS warning light and TRAC OFF indicator light on the combination meter.

HINT:
- If no code appears, inspect the ABS warning light circuit or TRAC OFF indicator light circuit.

Trouble Area
ABS warning light circuit
TRAC OFF indicator light circuit

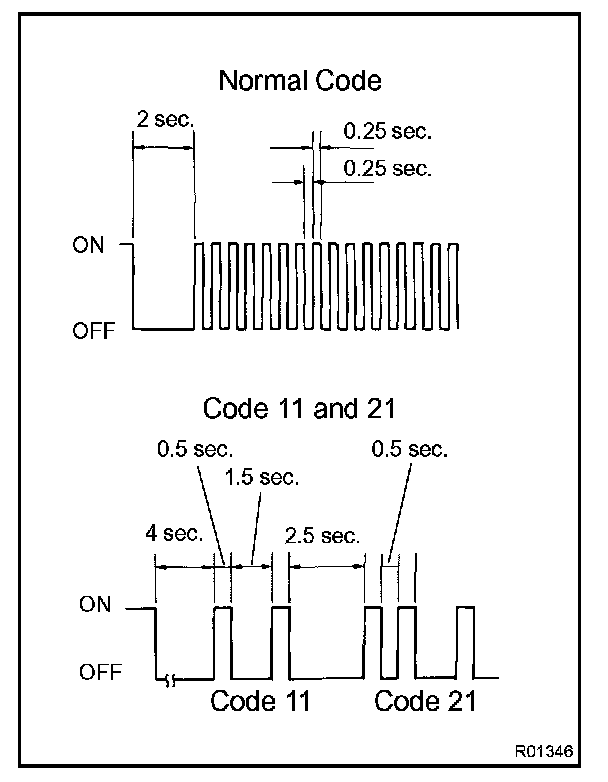

- As an example, the blinking patterns for normal code and codes 11 and 21 are shown.

4. Codes are explained in the code table.
5. After completing the check, disconnect terminals Tc and CG of DLC3 and turn off the display.
If 2 or more malfunctions are indicated at the same time the lowest numbered DTC will be displayed 1st.
