Without Scan Tool

Check the DTC of ABS system

In case of not using the hand-held tester:

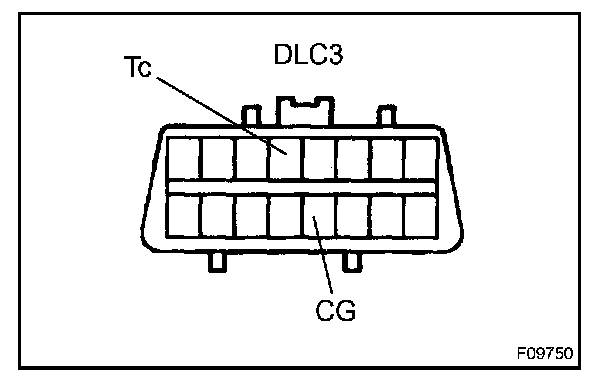

1. Using SST, connect terminals Tc and CG of DLC3.

SST 09843-18040

2. Turn the ignition switch ON.
3. Read the DTC from the ABS warning light and VSC warning light on the combination meter.

HINT:
- If no code appears, inspect the ABS warning light circuit and VSC warning light circuit.

Trouble Area
ABS warning light circuit
VSC warning light circuit

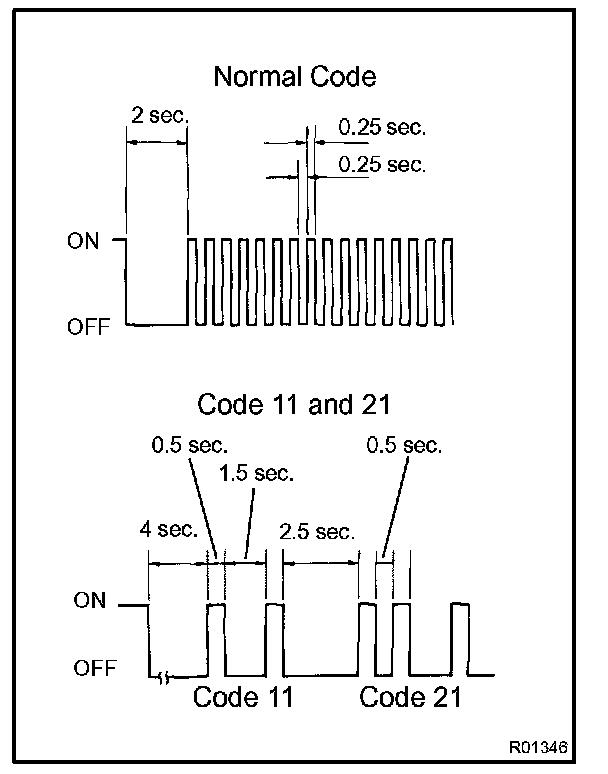

- As an example, the blinking patterns for the normal code and codes 11 and 21 are shown.

4. Codes are examples in the code table.
5. After completing the check, disconnect terminal Tc and CG of DLC3, and turn off the display.

If 2 or more malfunctions are detected at the same time, the lowest numbered DTC will be displayed 1st.
