Without Scan Tool

Clear the DTC

In case of not using the hand-held tester:




1. Using SST, connect terminals Tc and CG of DLC3.

SST 09843-18040

2. Turn the ignition switch ON.

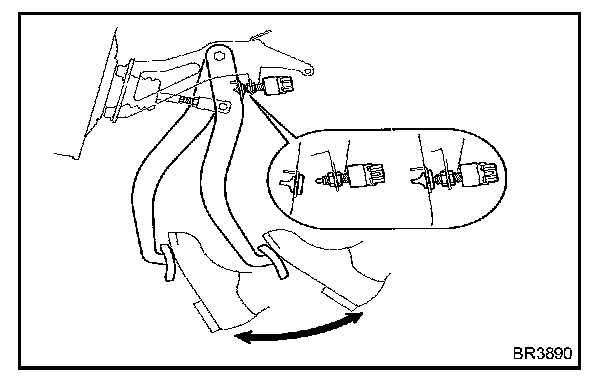

3. Clear the DTC stored in ECU by depressing the brake pedal 8 times or more within 5 sec.
4. Check that the warning light show the normal code.
5. Remove the SST from the terminals of DLC3.

SST 09843-18040
