Lexus
>>
2005
>>
IS 300 L6-3.0L (2JZ-GE)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>
ABS W/EBD & BA & TRAC & VSC System
ABS W/EBD & BA & TRAC & VSC System

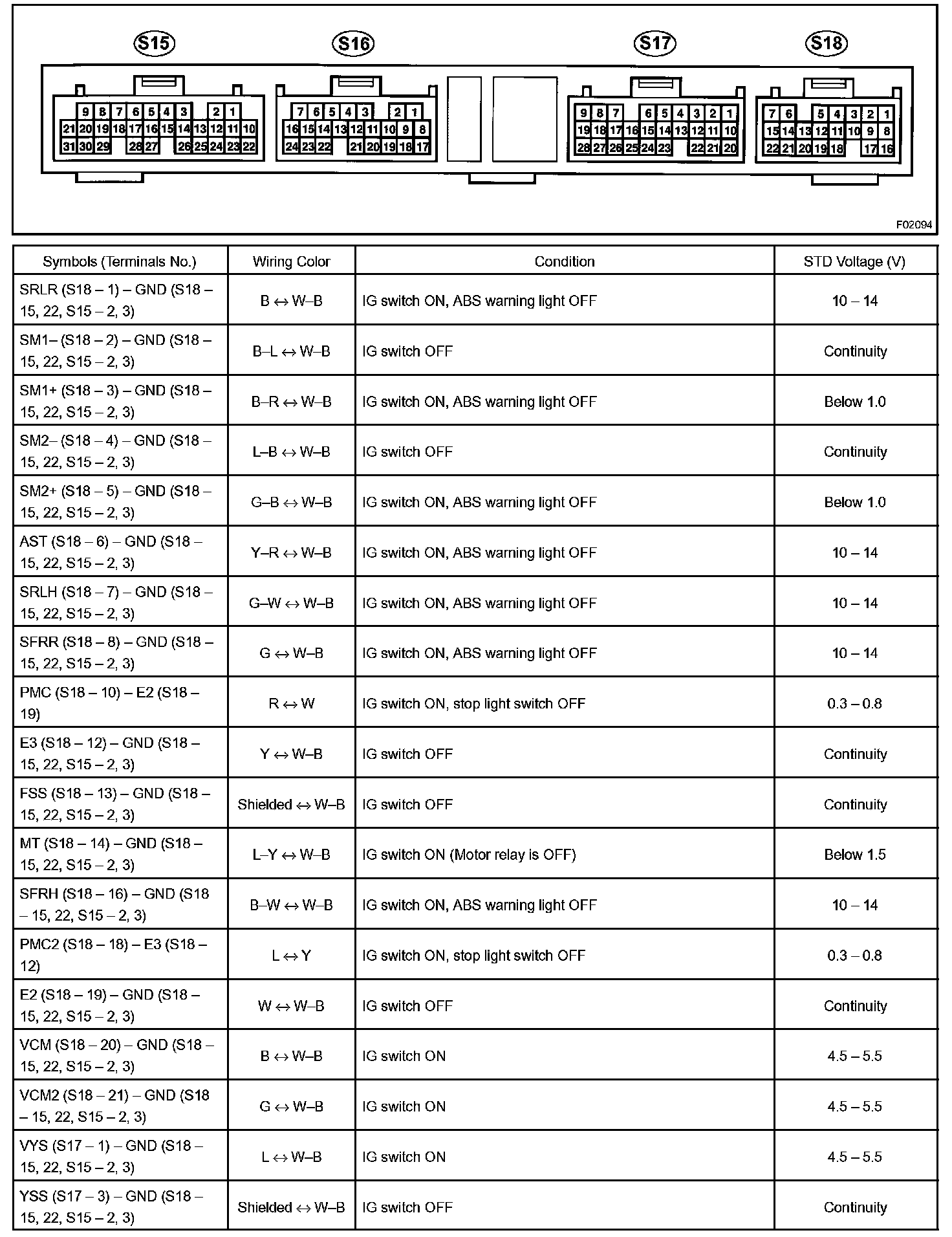

Terminals Of Control Module / Pinouts Part 1:

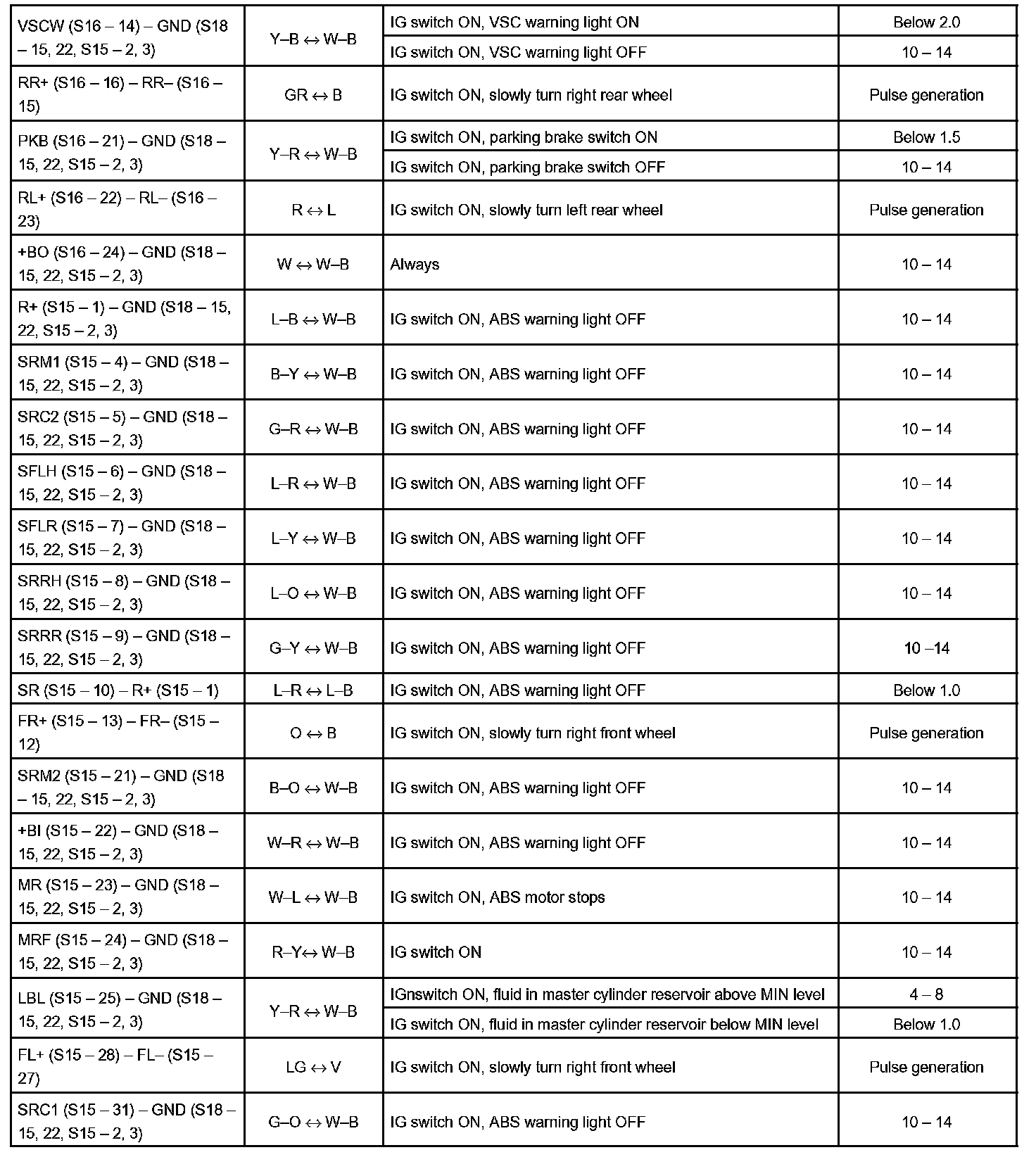

Terminals Of Control Module / Pinouts Part 2:

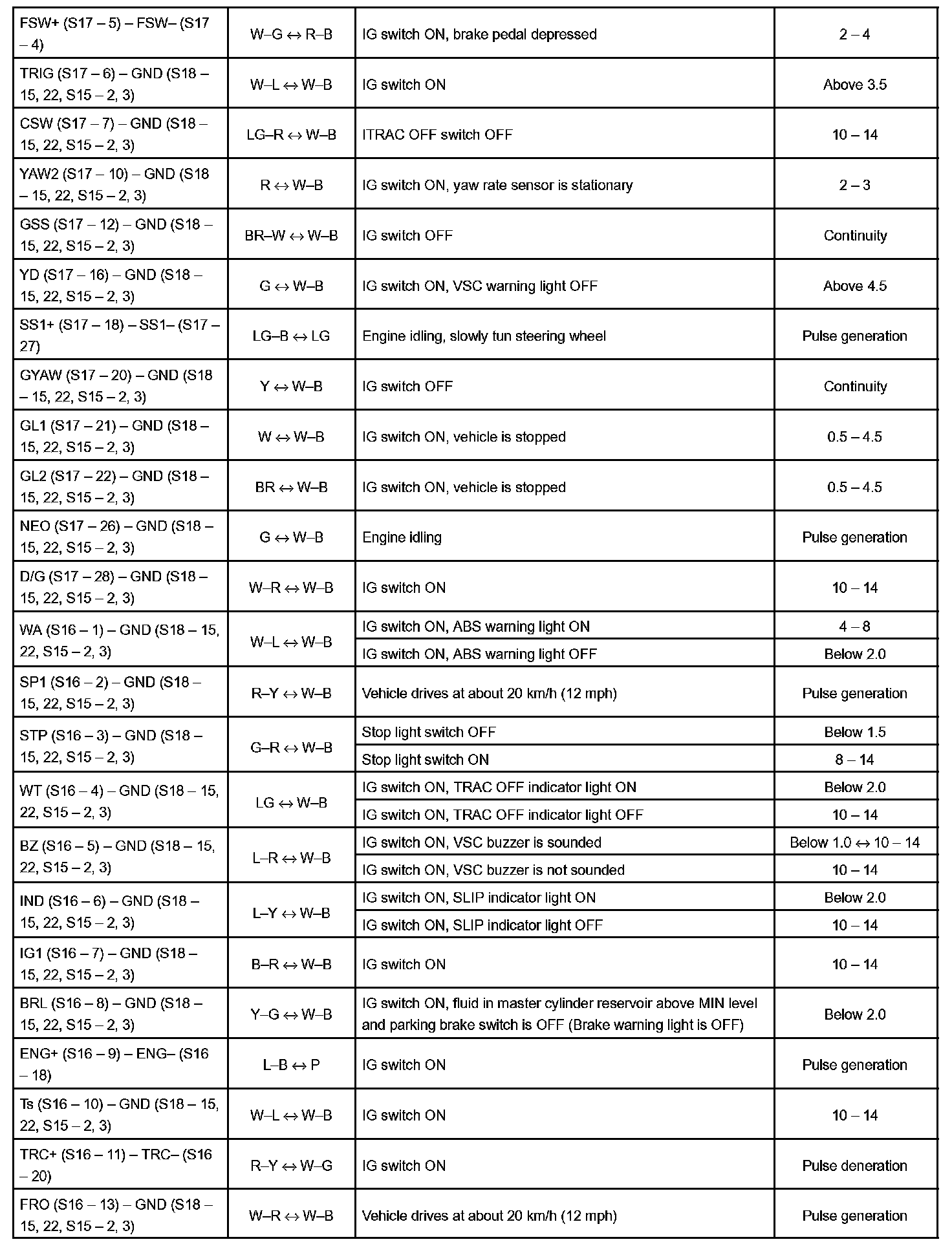

Terminals Of Control Module / Pinouts Part 3:
