Check the Warning Lights

Check the warning lights and indicator lights.




1. Release the parking brake lever.

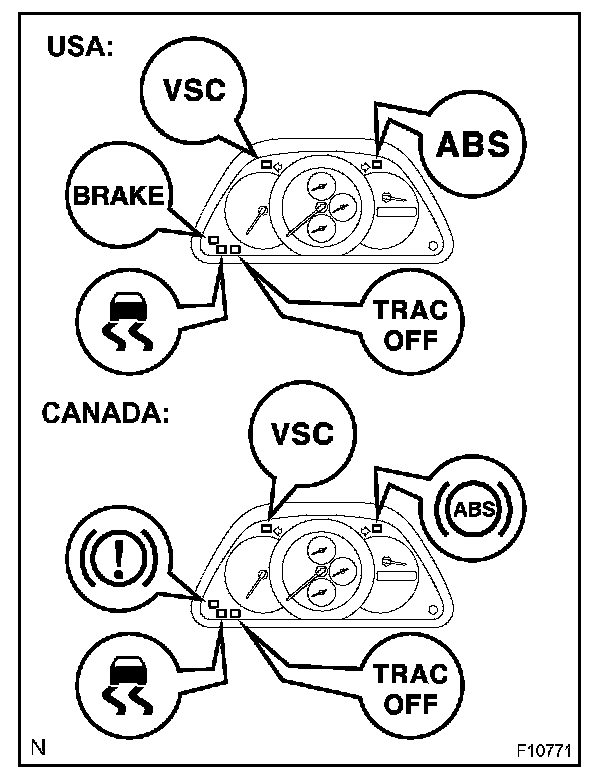

2. When the ignition switch is ON, check that the ABS warning light, BRAKE warning light, TRAC OFF indicator light and SLIP indicator light go on for 3 sec.

HINT:
- If the ECU stores DTC, VSC warning light, ABS warning light and TRAC OFF indicator light BRAKE warning light, are ON.
- If the check result is not normal, proceed to troubleshooting for the light circuit.

Trouble Area
ABS warning light circuit
BRAKE warning light circuit
VSC warning light circuit
TRAC OFF indicator light circuit
SLIP indicator light circuit
