TRAC OFF Indicator, TRAC Cut Switch Circuit

TRAC OFF Indicator, TRAC Cut Switch Circuit

CIRCUIT DESCRIPTION
This is the TRAC control main switch. When the TRAC cut switch is pushed on, TRAC control goes off and the TRAC OFF indicator lights up. This indicator blinks for warnings when the trouble occurs and for displaying DTC.

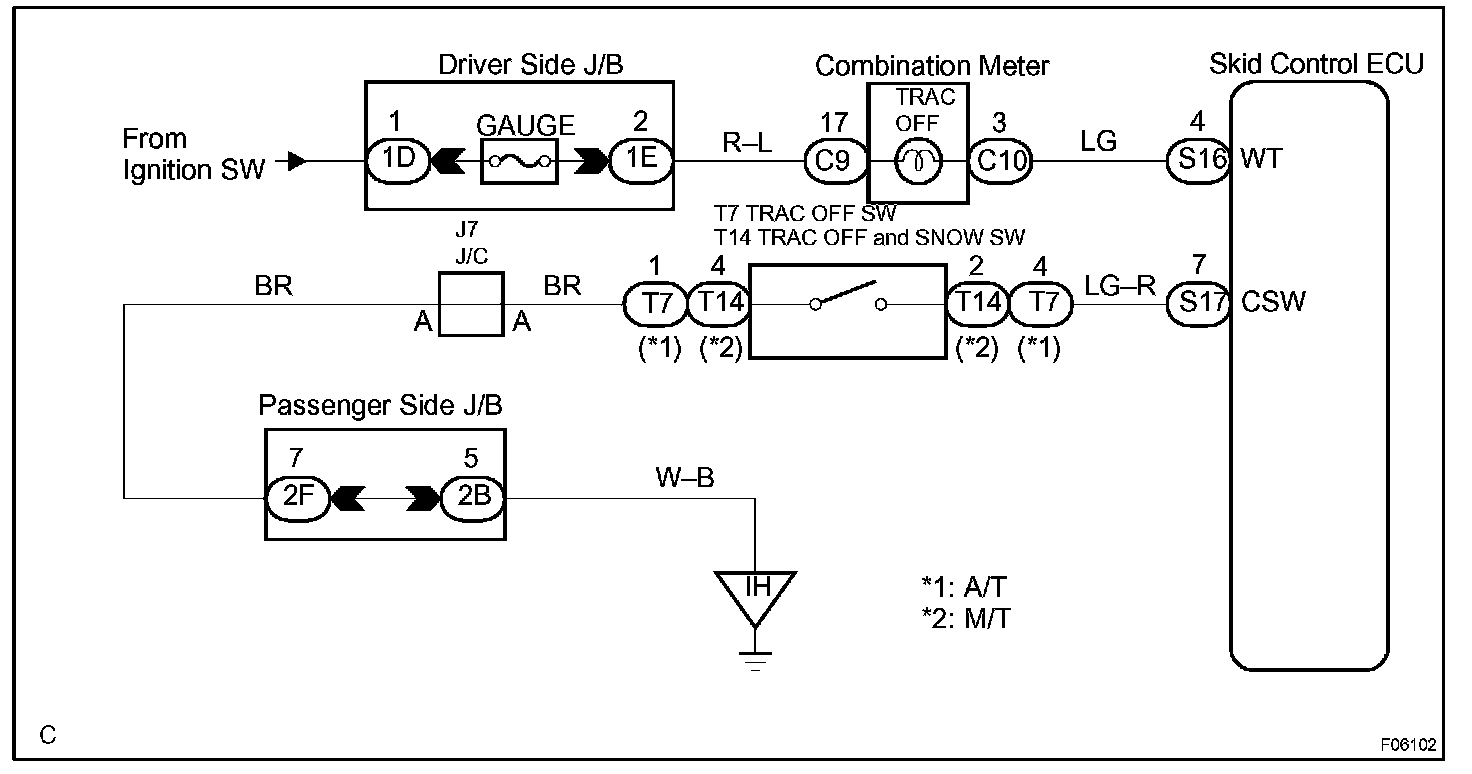

Wiring Diagram:

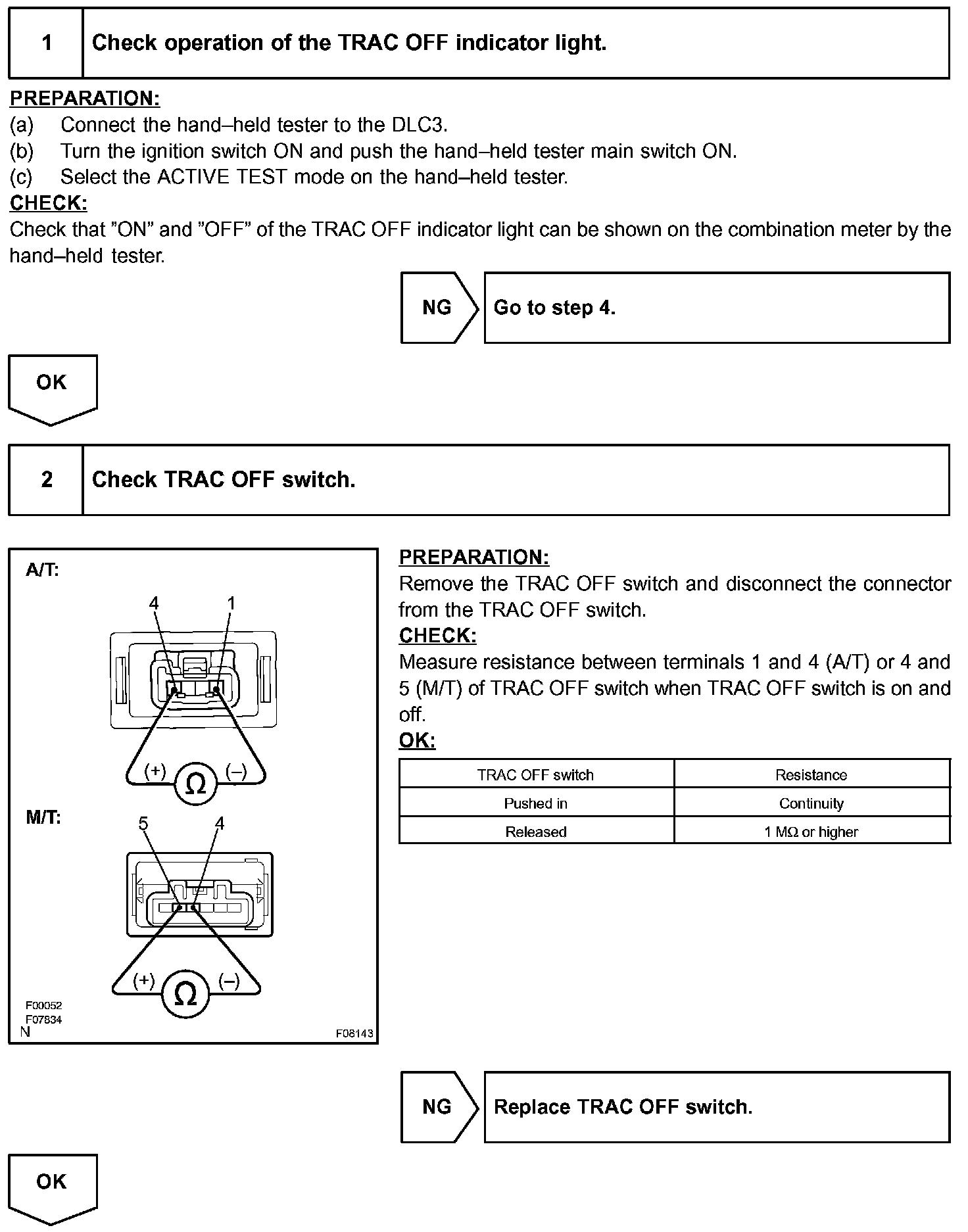

Step 1 - 2:

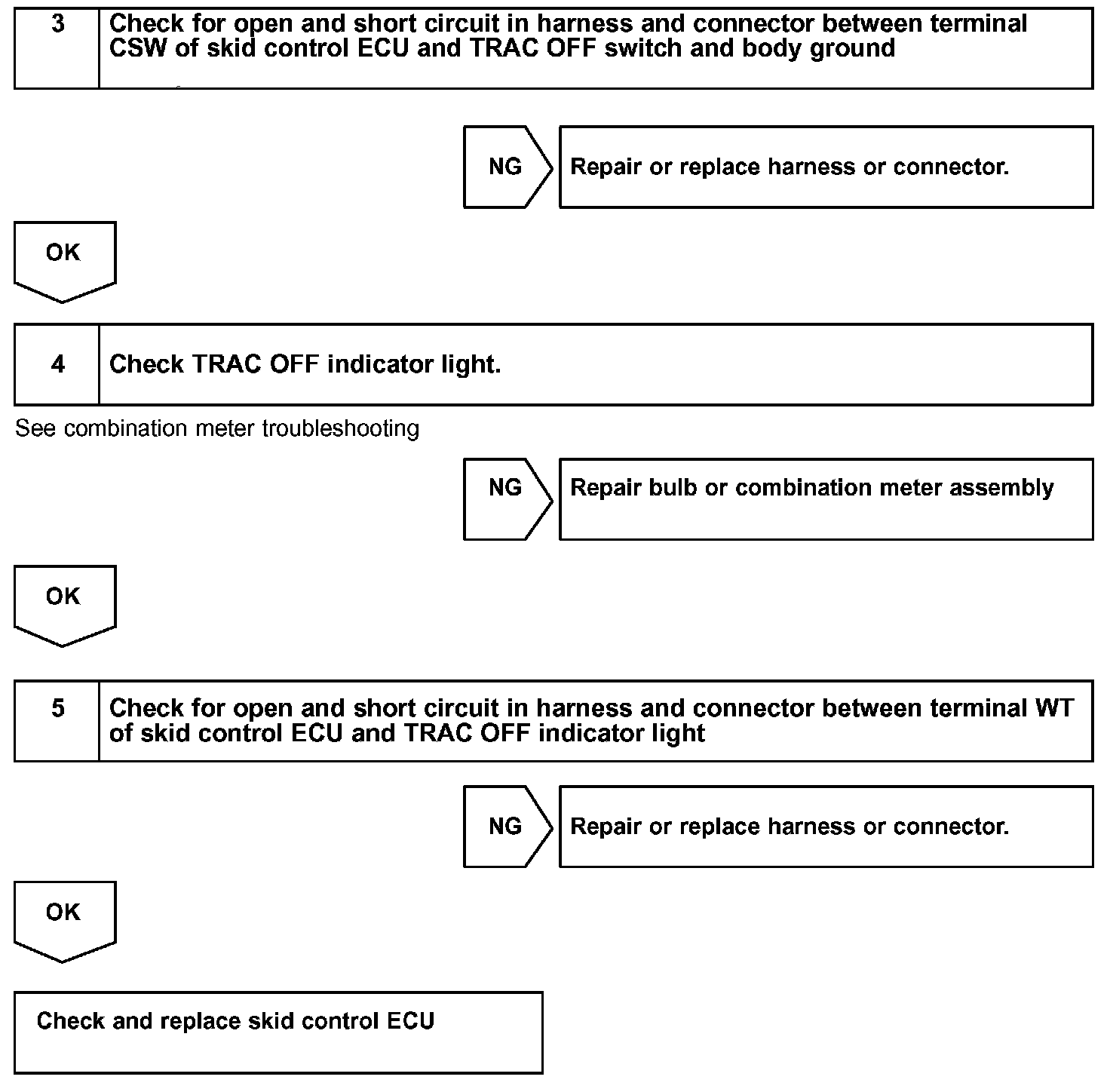

Step 3 - 5:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 in case of using the hand-held tester and start from step 2 in case of not using the hand-held tester.
