VSC Warning Buzzer Circuit

VSC Warning Buzzer Circuit

CIRCUIT DESCRIPTION
The VSC warning buzzer sounds during VSC operation.

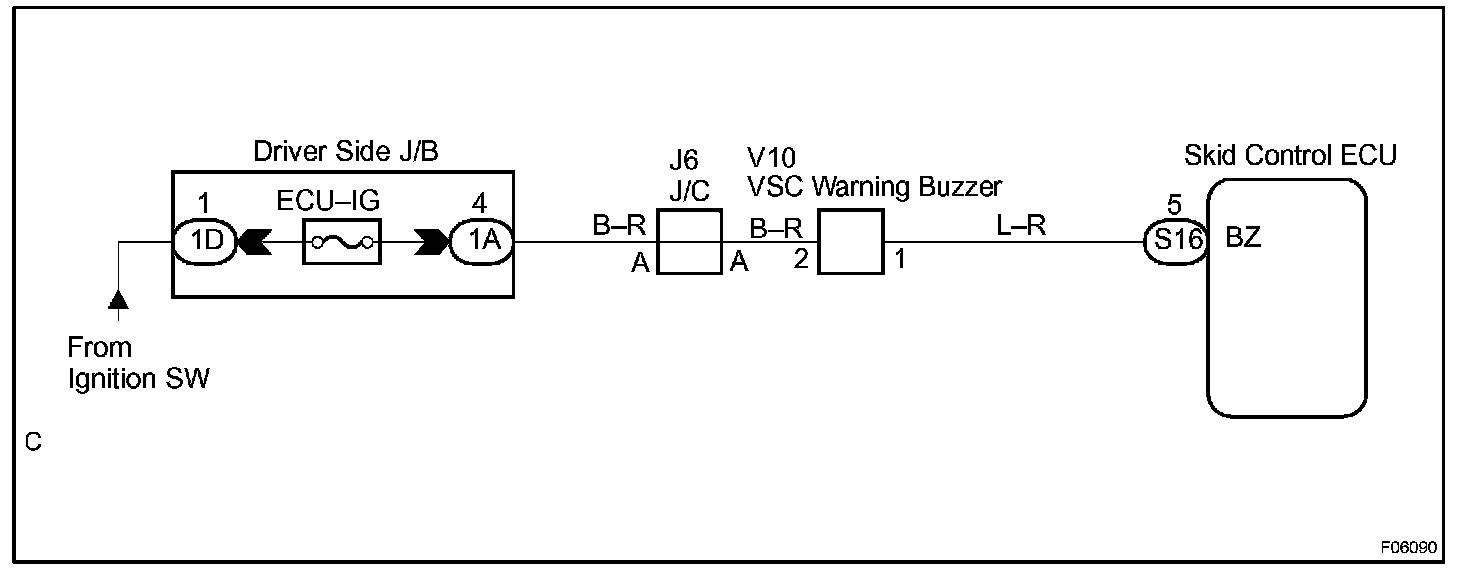

Wiring Diagram:

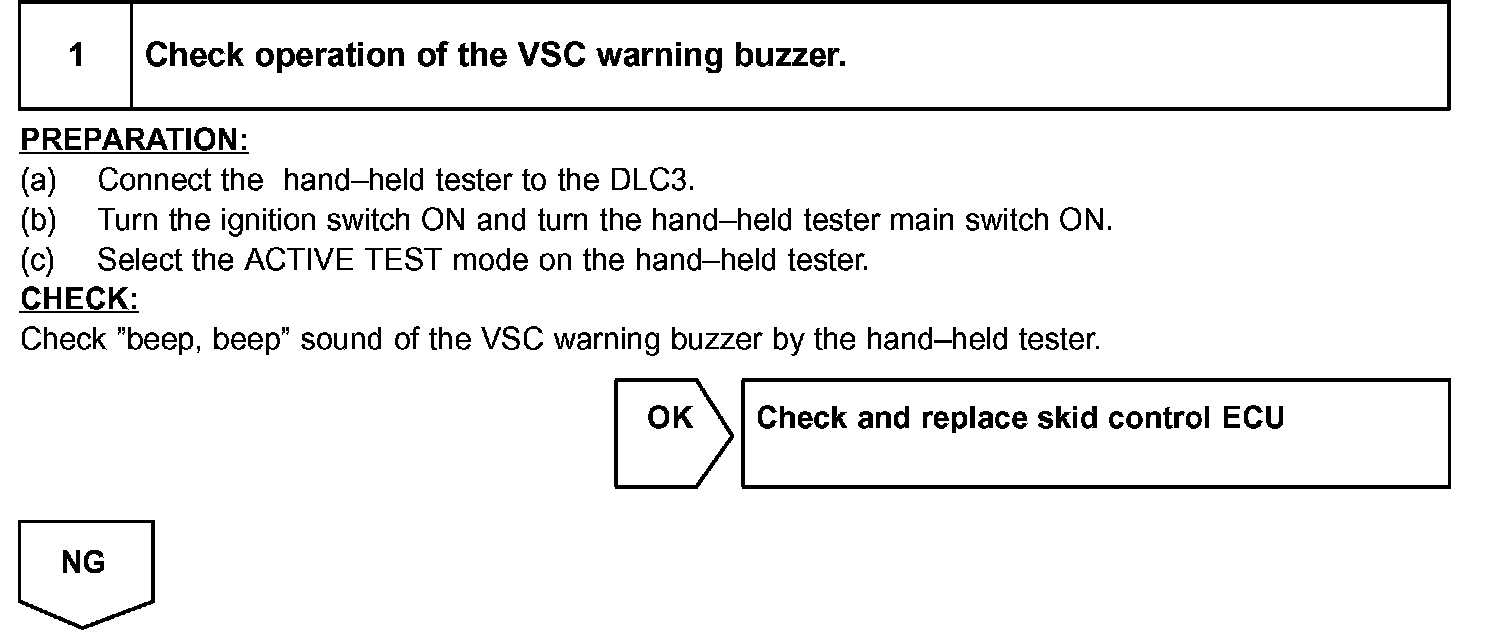

Step 1:

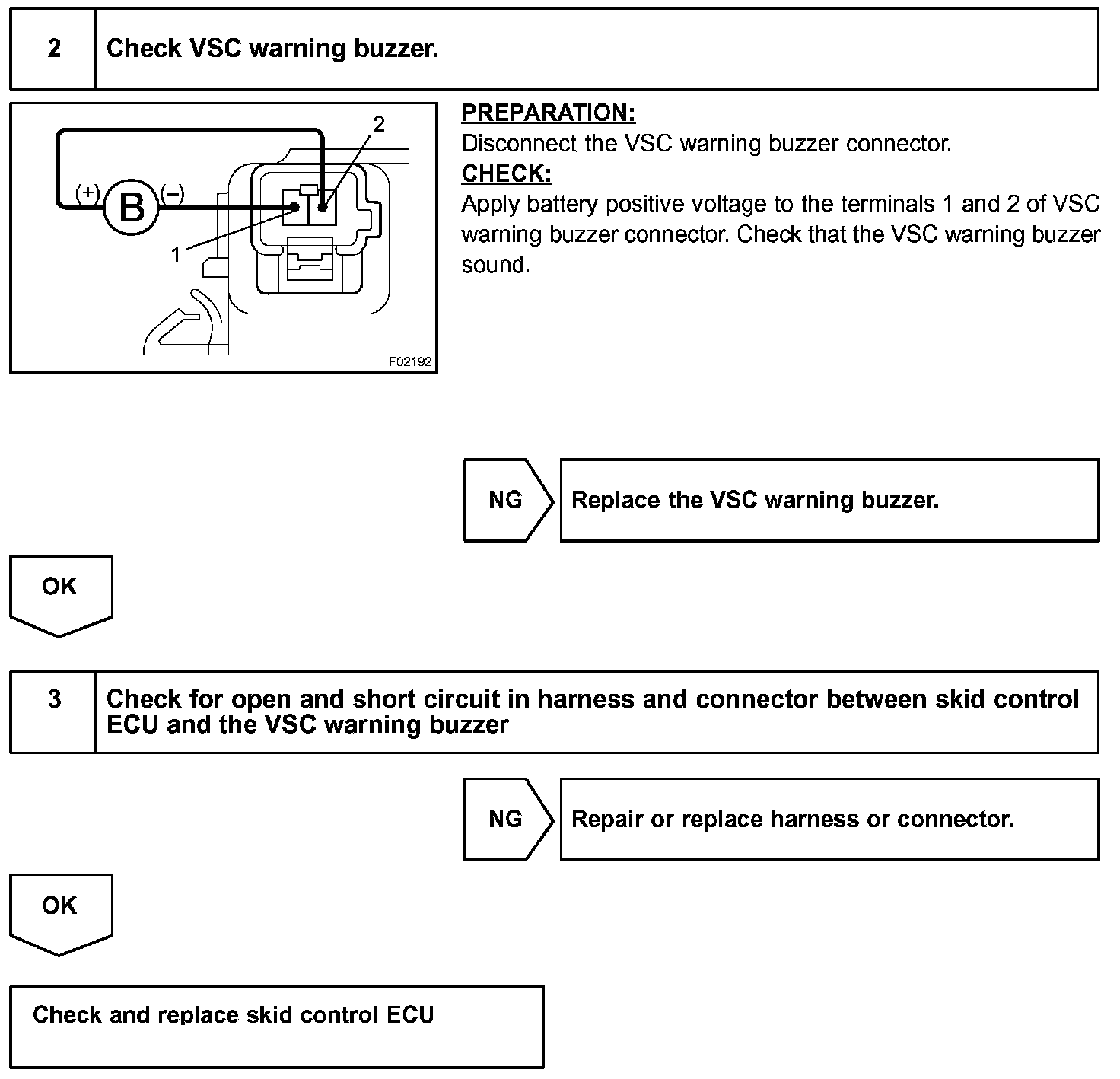

Step 2 - 3:

INSPECTION PROCEDURE

HINT: Start inspection from step 1 in case of using the hand-held tester and start from step 2 in case of not using the hand-held tester.
