ABS Warning Light Circuit
ABS Warning Light CircuitCIRCUIT DESCRIPTION
If the ECU detects a trouble, it lights the ABS warning light while at the same time prohibiting ABS control.
At this time, the ECU records a DTC in memory. Connect terminals Tc and CG of the DLC3 to make the ABS warning light blink and output the DTC.

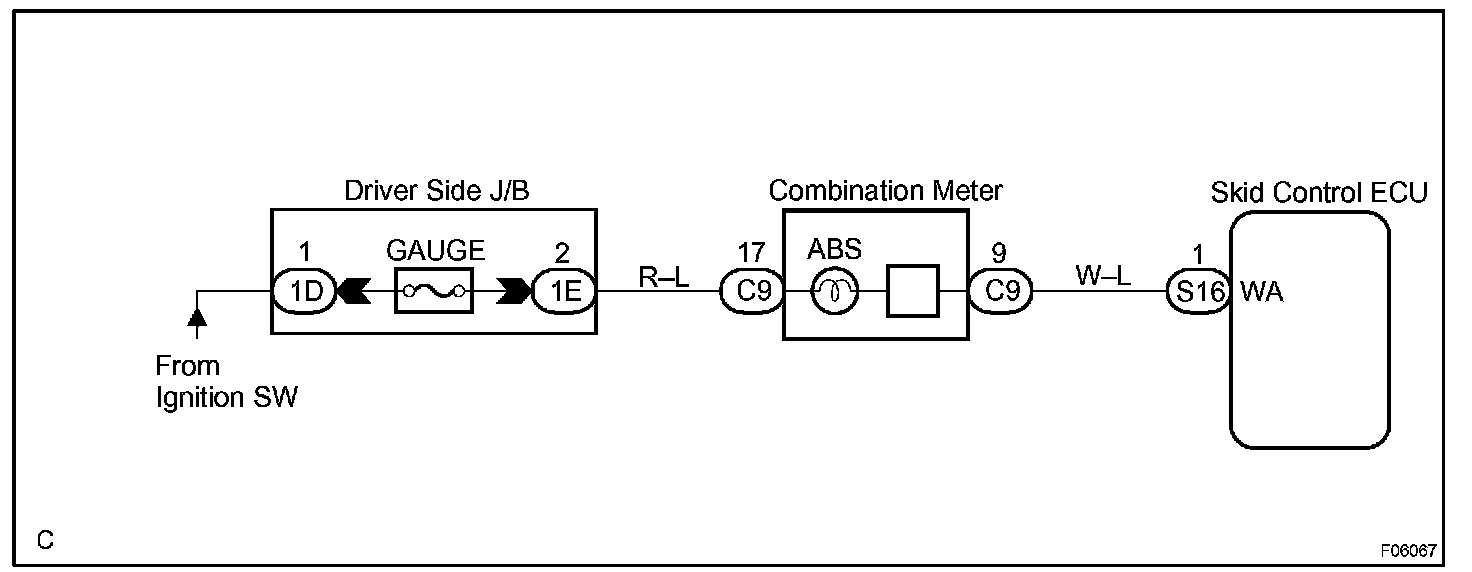

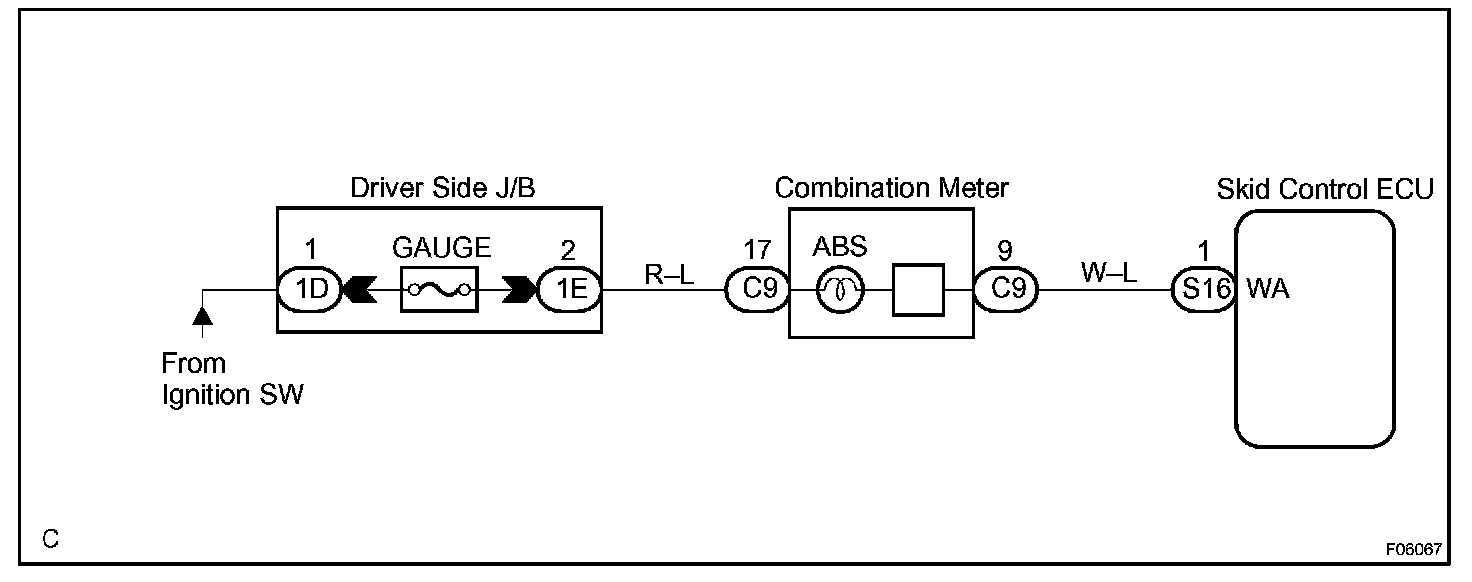

Wiring Diagram:

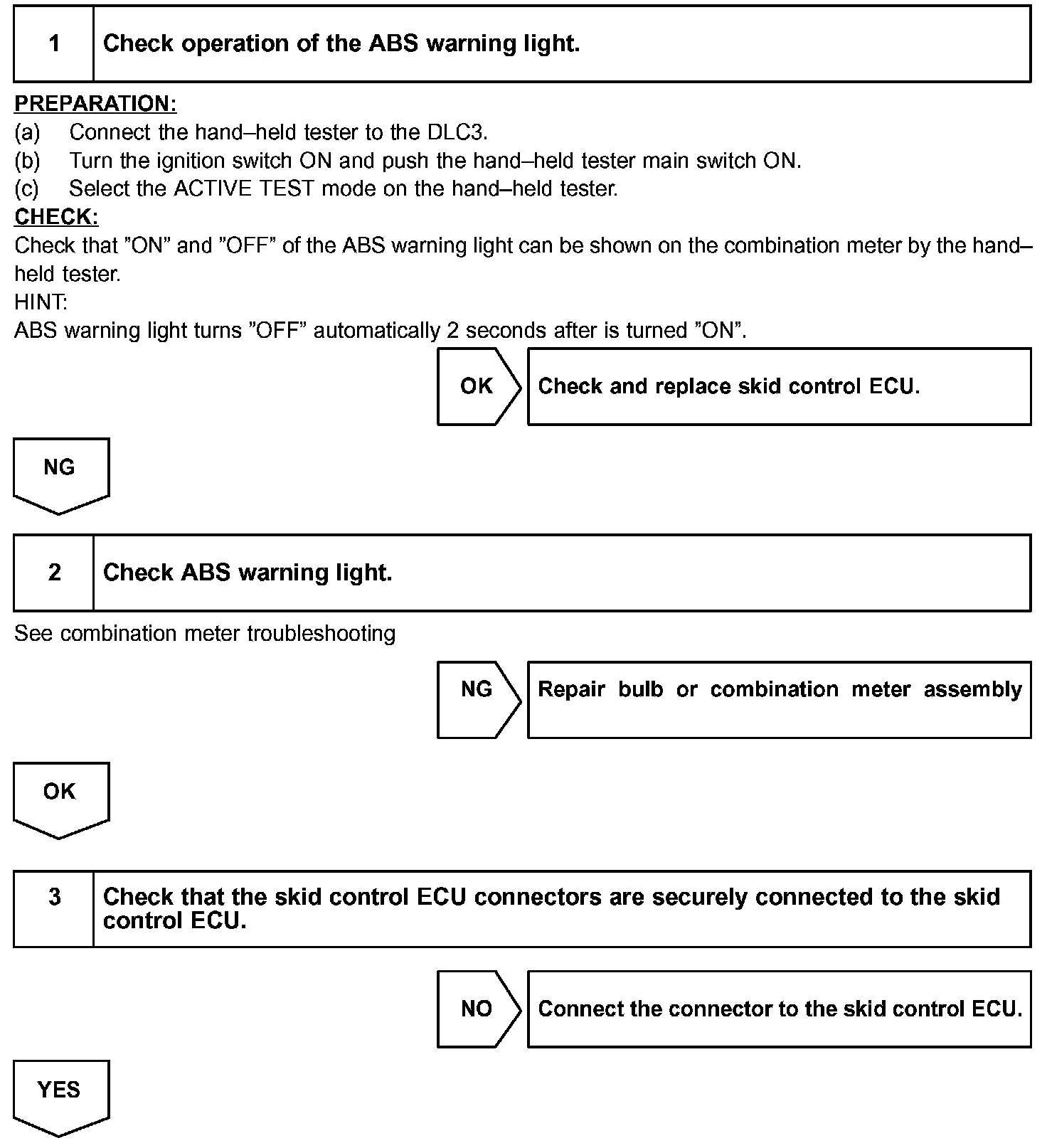

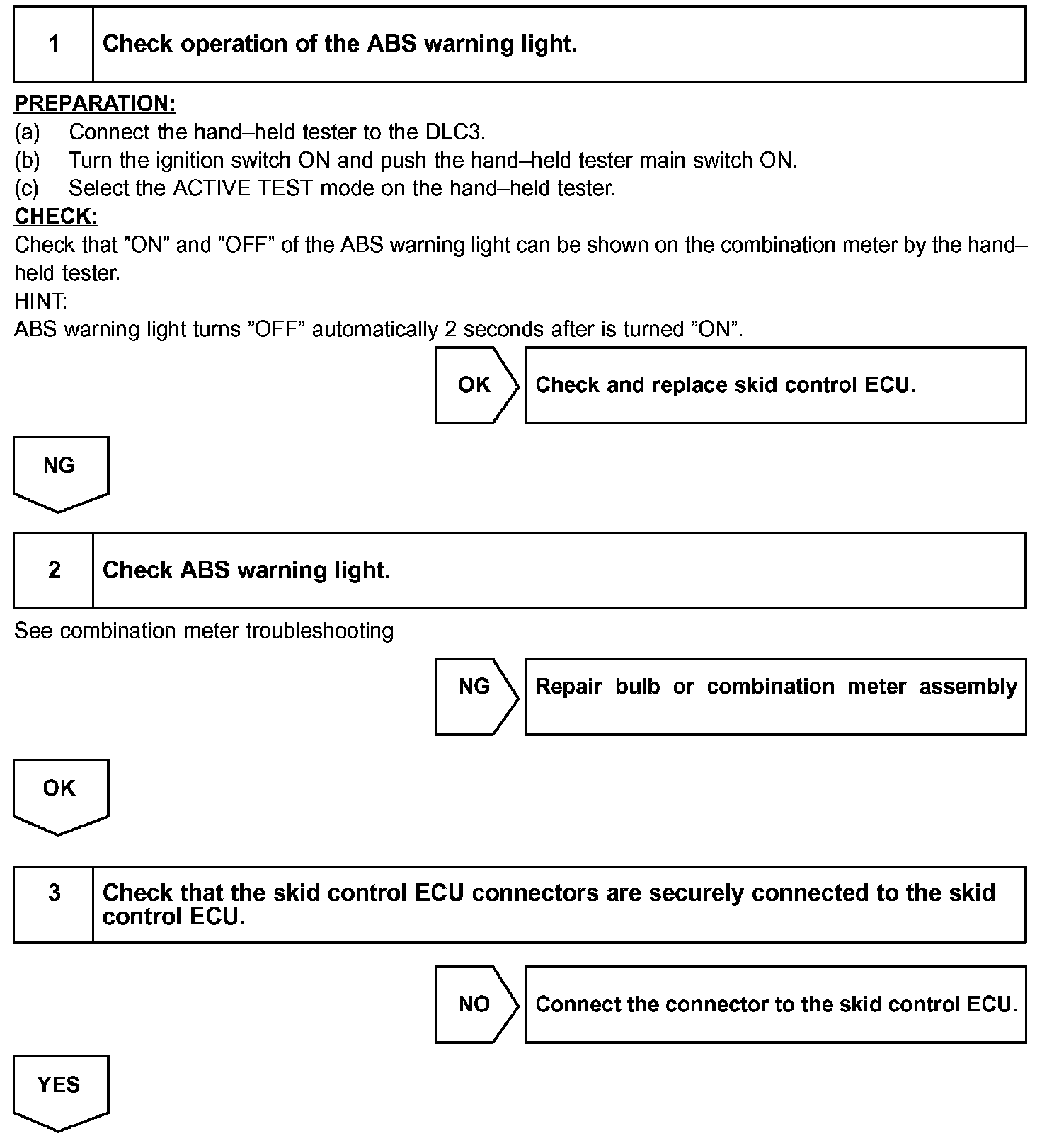

Step 1 - 3:

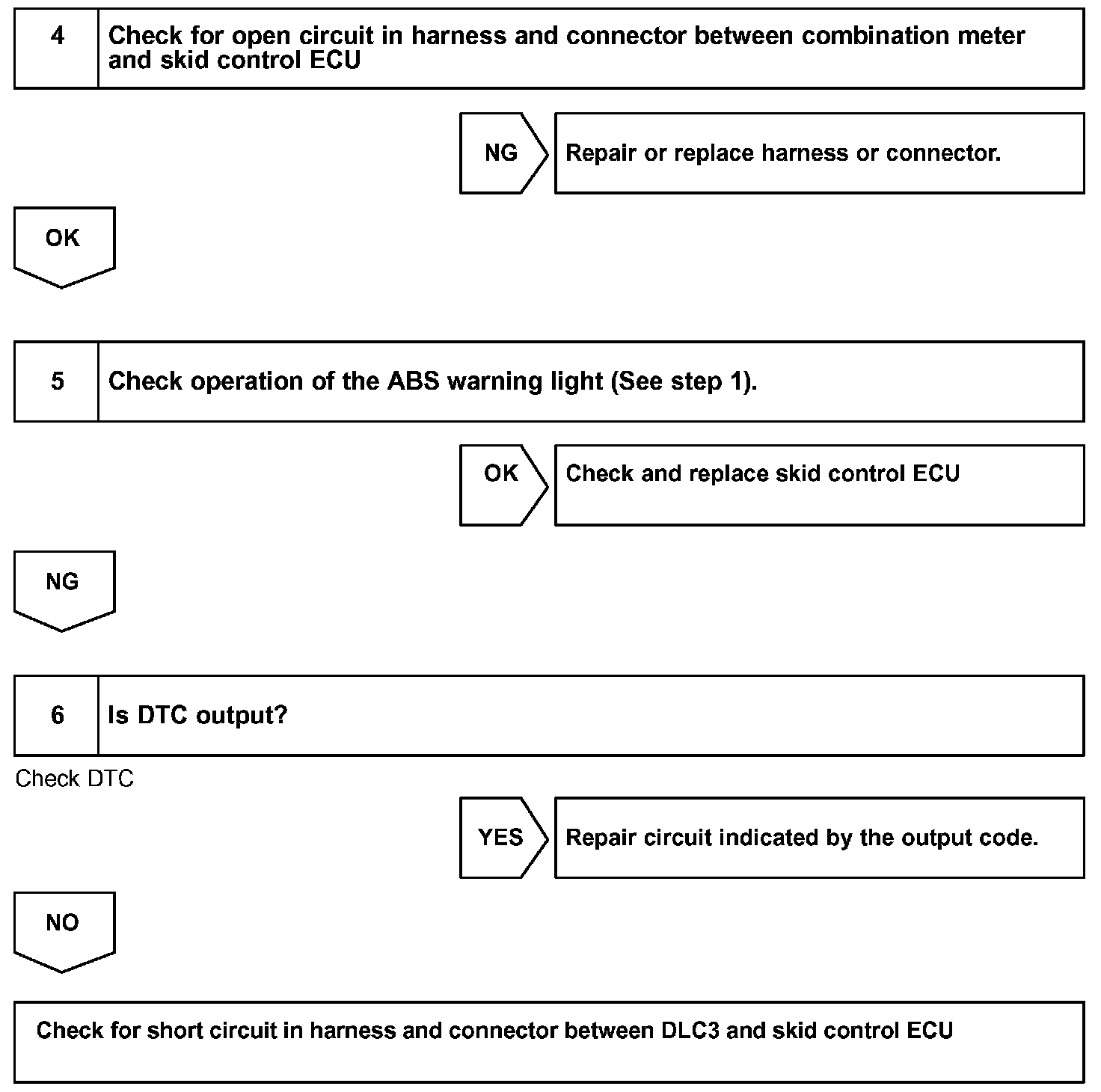

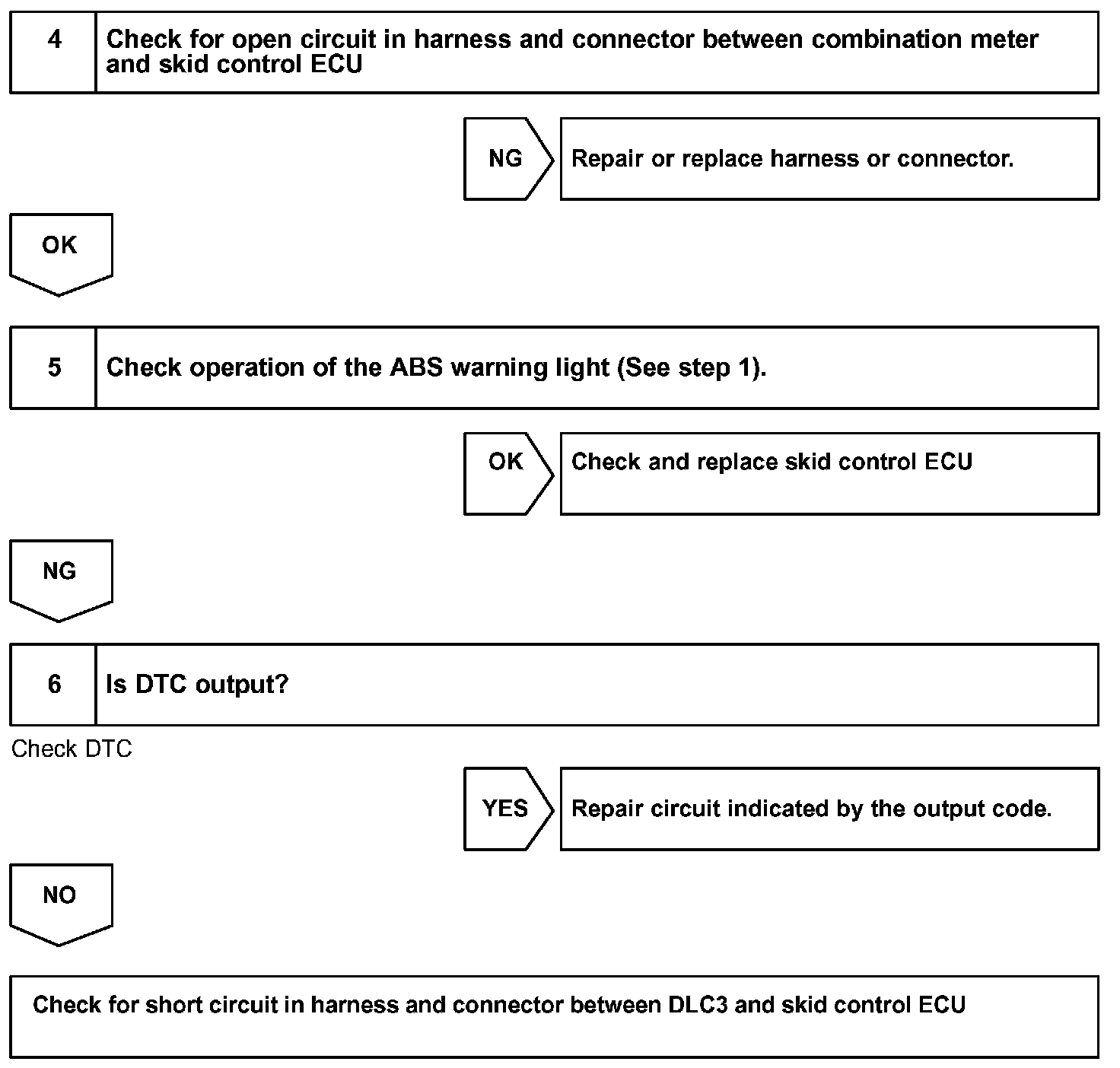

Step 4 - 6:
INSPECTION PROCEDURE
HINT: Troubleshooting in accordance with the chart below for each trouble symptom.
*1: Start the inspection from step 1 in case of using the hand-held tester and start from step 2 in case of not using hand-held tester.
*2: After inspection with step 3, start the inspection from step 4 in case of using the hand-held tester and start from step 5 in case of not using hand-held tester.
