Trunk / Liftgate Switch: Testing and Inspection

INSPECT LUGGAGE COMPARTMENT DOOR COURTESY SWITCH CONTINUITY

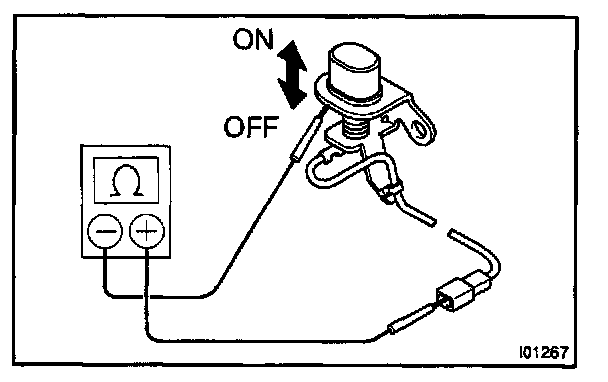

a. Check that continuity exists between terminals and the switch body with the switch ON (switch pin released: opened door).
b. Check that no continuity exists between terminals and the switch body with the switch OFF (switch pin pushed in: closed doors).
If operation is not as specified, replace the switch.







INSPECT LUGGAGE COMPARTMENT DOOR COURTESY SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

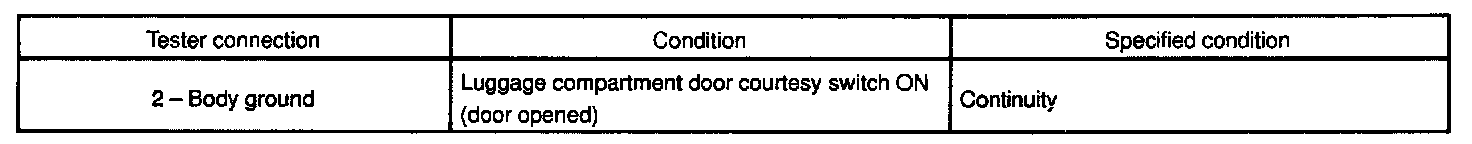

INSPECT LUGGAGE COMPARTMENT DOOR COURTESY SWITCH CIRCUIT

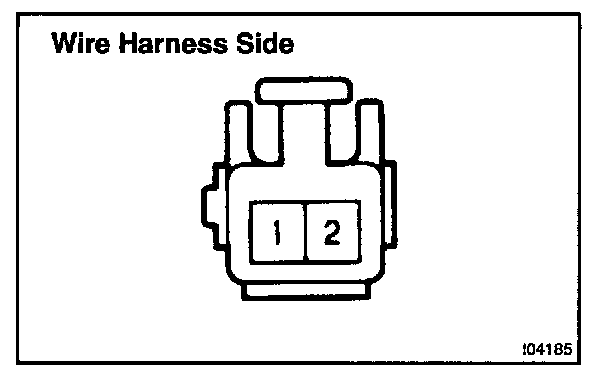

Disconnect the connector from the switch and inspect the connector on the wire harness side, as shown.
If circuit is not as specified, inspect power source or wire harness.
