Inspection

INSPECTION

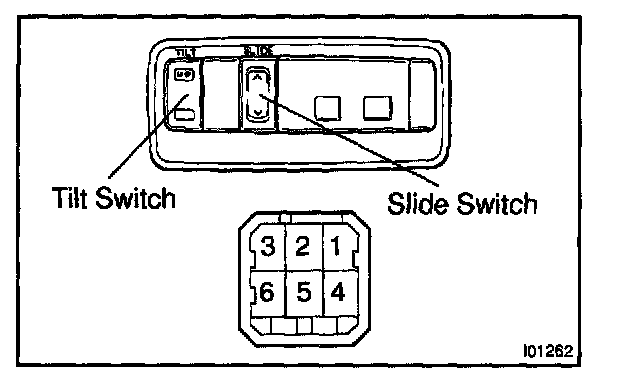

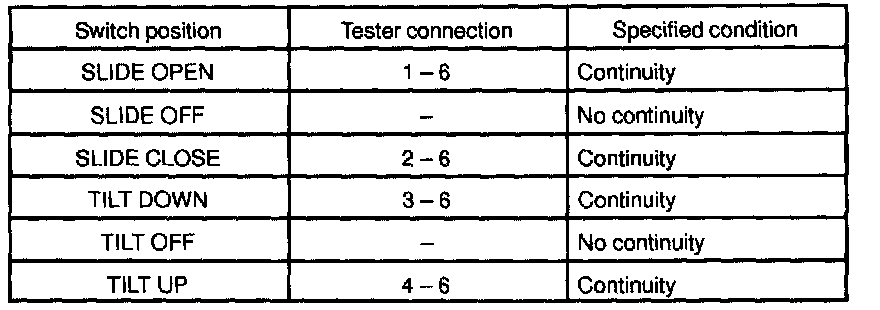

1. INSPECT SLIDING ROOF SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

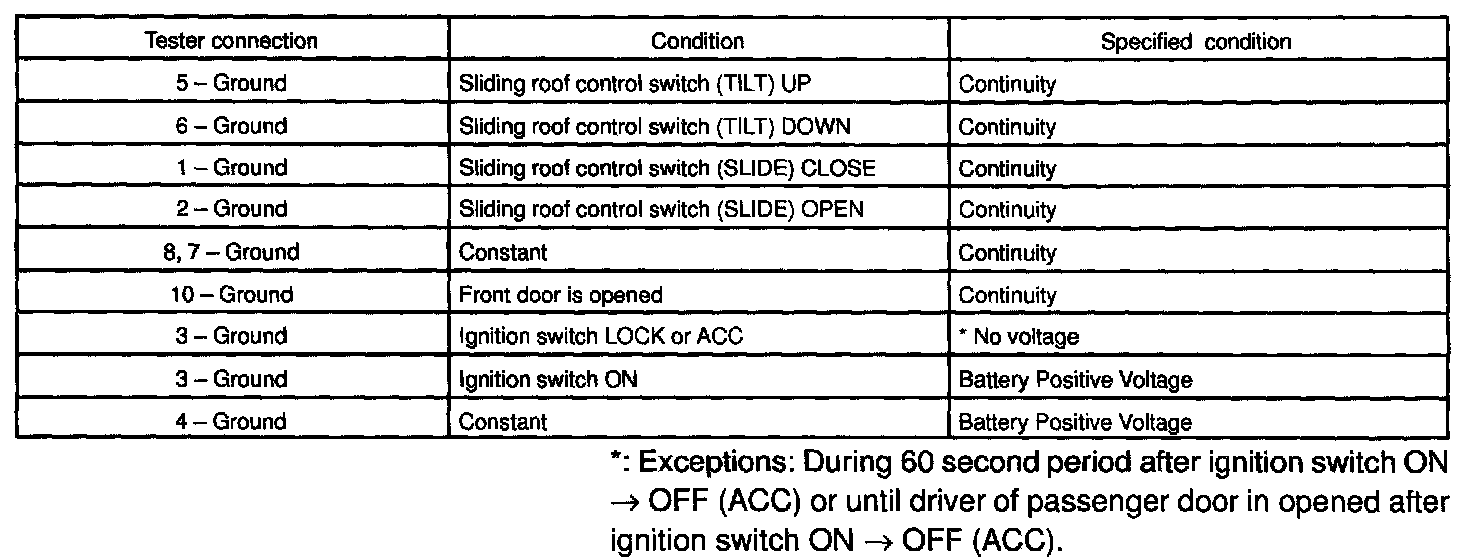

2. INSPECT SLIDING ROOF CONTROL ASSEMBLY CIRCUIT

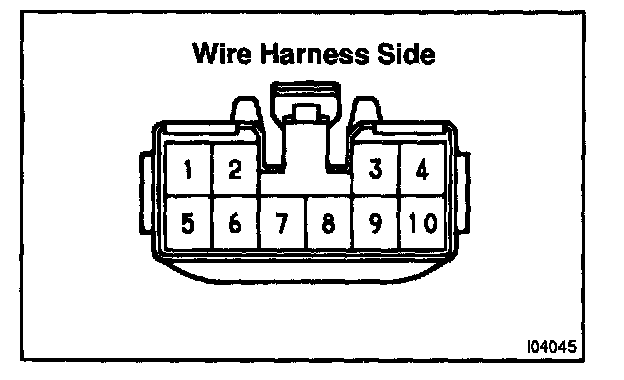

Disconnect the connector from the ECU and inspect the connector on the wire harness side, as shown in the chant.
If circuit is as specified, replace the relay.
