Power Mirror Control System

INSPECTION

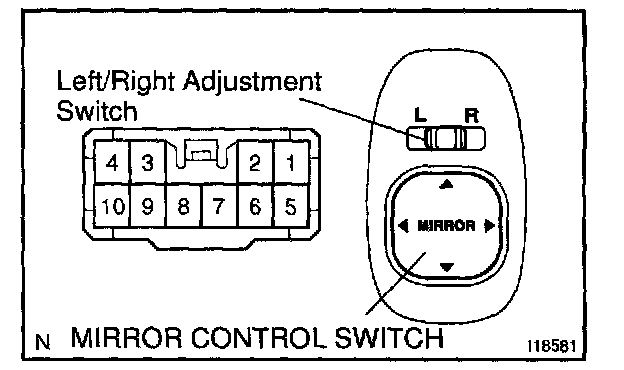

1. Left/right adjustment switch (Left side):

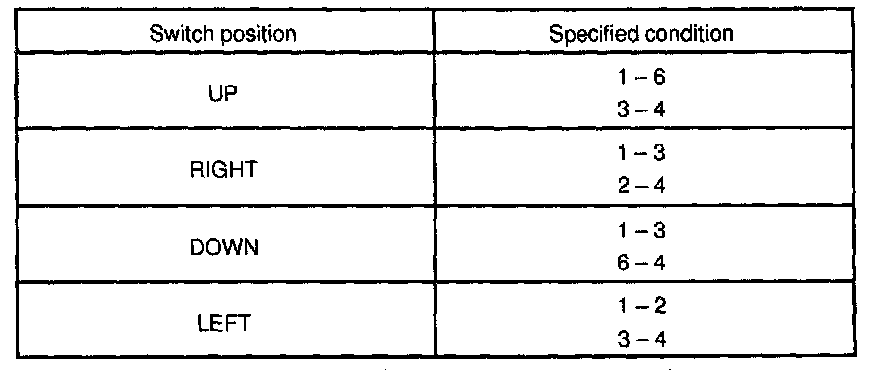

INSPECT MIRROR SWITCH CONTINUITY
If continuity is not as specified, replace the switch.




2. Left/right adjustment switch (Right side):

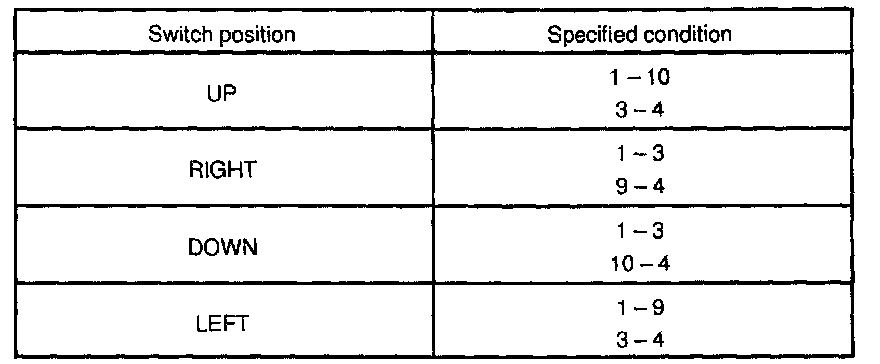

INSPECT MIRROR SWITCH CONTINUITY
If continuity is not as specified, replace the switch.




3. INSPECT MIRROR MOTOR OPERATION

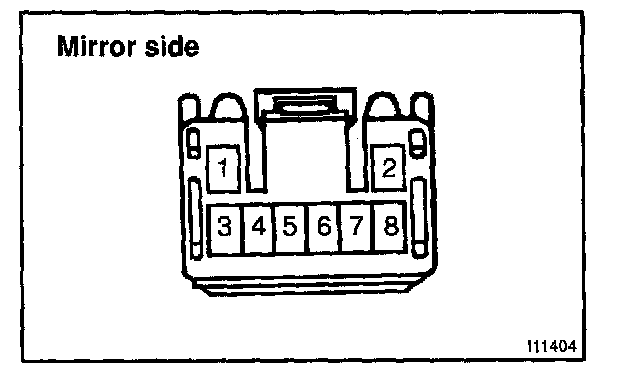

a. Connect the positive (+) lead from the battery to terminal 8 and the negative (-) lead to terminal 7, and check that the mirror turns to the upward.
b. Reverse the polarity, and check that the mirror turns to the downward.
c. Connect the positive (+) lead from the battery to terminal 6 and the negative (-) lead to terminal 7, and check that the mirror turns to the inside.
d. Reverse the polarity, and check that the mirror turns out side.
If operation is not as specified, replace the mirror assembly.
