Roof Headlining (Wagon)

REMOVAL

HINT: A bolt without a torque specification is shown in the standard bolt chart.

1. REMOVE REAR SEAT CUSHION
2. REMOVE SIDE SEATBACK ASSEMBLY

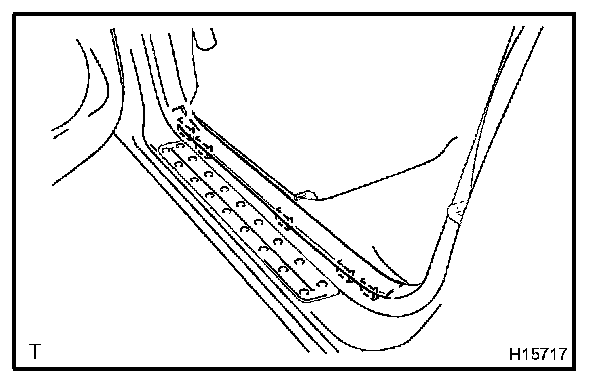

3. REMOVE FRONT DOOR INSIDE SCUFF PLATE
a. Using a screwdriver, remove the front door inside scuff plate as shown in the illustration.

HINT: Tape the screwdriver tip before use.

b. Employ the same manner described above to the other side.

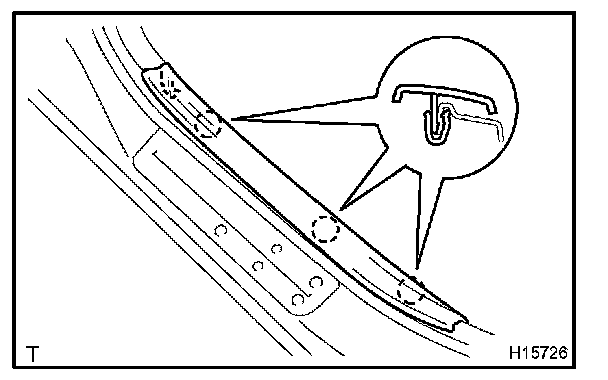

4. REMOVE REAR DOOR INSIDE SCUFF PLATE
a. Using a screwdriver, remove the rear door inside scuff plate as shown in the illustration.

HINT: Tape the screwdriver tip before use.

b. Employ the same manner described above to the other side.

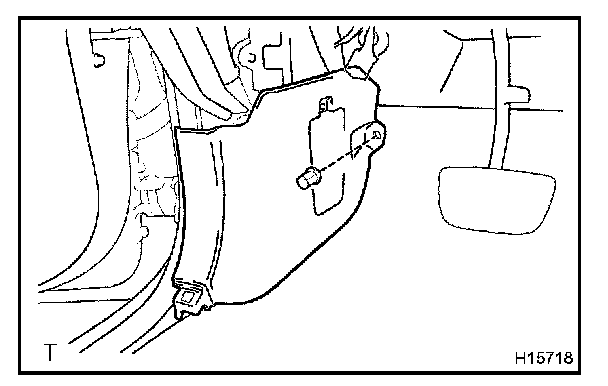

5. REMOVE COWL SIDE TRIM BOARD
a. Remove the clip and cowl side trim board.
b. Employ the same manner described above to the other side.

6. REMOVE FRONT DOOR OPENING TRIMS
7. REMOVE REAR DOOR OPENING TRIMS

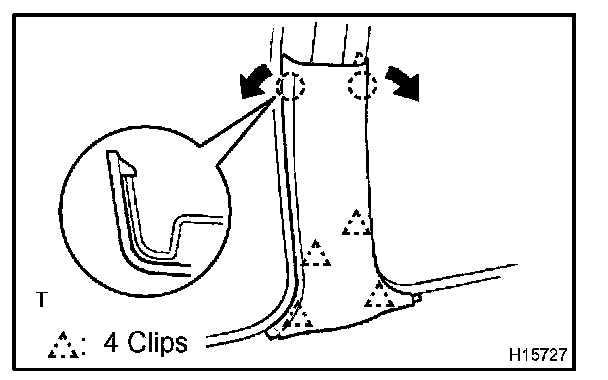

8. REMOVE CENTER PILLAR LOWER GARNISH
a. Using a screwdriver, remove the center pillar lower garnish.

HINT: Tape the screwdriver tip before use.

b. Employ the same manner described above to the other side.

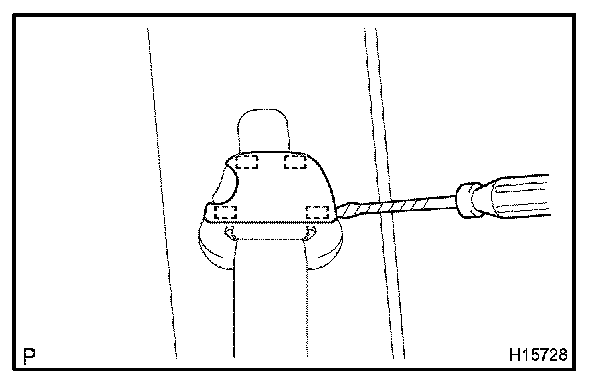

9. REMOVE FRONT SEAT OUTER BELT SHOULDER ANCHOR
a. Using a screwdriver, remove the anchor cap.

HINT: Tape the screwdriver tip before use.

b. Remove the bolt and front seat outer belt shoulder anchor.

Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)

c. Employ the same manner described above to the other side.

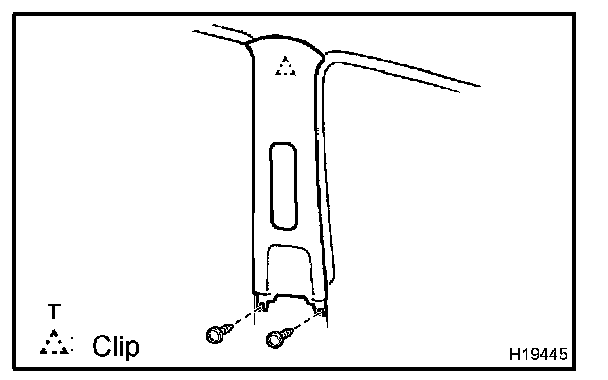

10. REMOVE CENTER PILLAR GARNISH
a. Remove the 2 screws.
b. Using a screwdriver, remove the center pillar garnish.

HINT: Tape the screwdriver tip before use.

c. Employ the same manner described above to the other side.

11. REMOVE REAR SEAT CUSHION
12. REMOVE REAR SIDE SEAT BACK
13. REMOVE REAR SEAT FLOOR BOARD NO. 4
a. Remove the seat back board carpets.
b. Remove the 2 bolts and rear floor board No. 4

14. REMOVE DECK FLOOR BOX FRONT
a. Remove the 2 bolts and 2 rope hook assemblies.
b. Remove the 2 bolts and 2 tether anchor brackets.

Torque: 21 N.m (214 kgf.cm, 15 ft.lbf)

c. Remove the restraint seat tether anchor cover.
d. Remove the deck floor box front.

15. REMOVE DECK BOARD NO. 2
16. REMOVE REAR FLOOR BOARD NO. 2
17. REMOVE REAR FLOOR BOARD NO. 3
18. REMOVE TONNEAU COVER ASSEMBLY

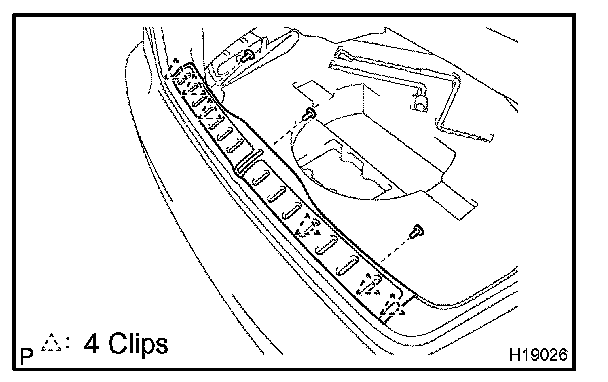

19. REMOVE REAR FLOOR FINISH PLATE
a. Remove the 2 bolts and 2 rope hook assemblies.
b. Remove the 3 clips.
c. Using a screwdriver, remove the rear floor finish plate.

HINT: Tape the screwdriver tip before use.




20. RH Side:

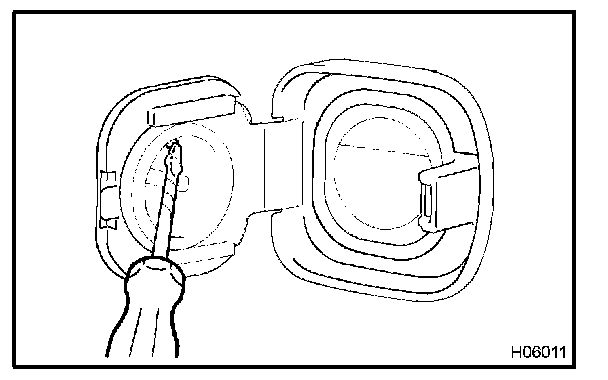

REMOVE ACCESSORY SOCKET

a. Using a screwdriver, disengage the claw on the accessory socket cover from the hole in the accessory socket, then pull out the accessory socket approx. 10 mm (0.39 in.).

HINT: Tape the screwdriver tip before use.

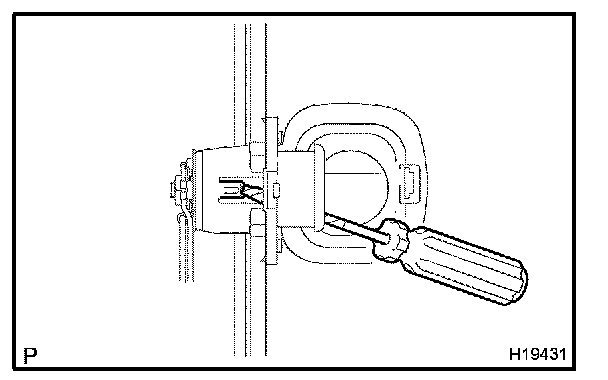

b. Using a screwdriver, disengage the claw on the accessory socket cover from the body and remove the accessory socket and cover as a unit.

HINT: Tape the screwdriver tip before use.

c. Disconnect the connector.
d. Disassemble the accessory socket from the socket cover.




21. REMOVE DECK TRIM SIDE PANEL ASSEMBLY
a. Remove the 2 bolts and 2 floor hooks.
b. Remove the screw, bolt and clip.
c. Using a screwdriver, remove the deck trim side panel assembly then disconnect the connector.

HINT: Tape the screwdriver tip before use.

d. Employ the same manner described above to the other side.




22. REMOVE ROOF SIDE INNER GARNISH
a. Using a screwdriver, remove the roof side inner garnish.

HINT: Tape the screwdriver tip before use.

b. Employ the same manner described above to the other side.

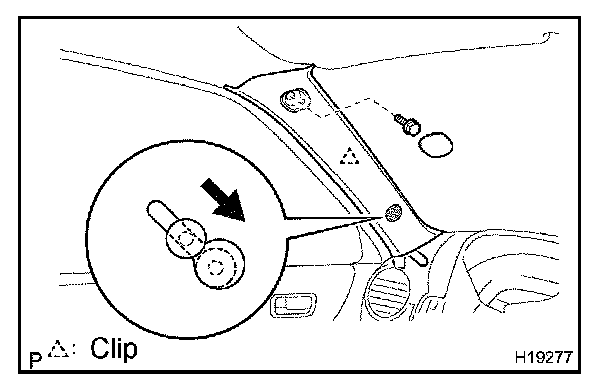

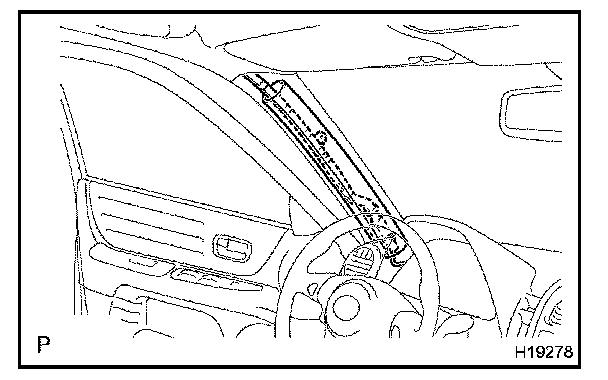

23. REMOVE FRONT PILLAR GARNISH
a. Using a screwdriver, remove the front pillar garnish cover.

HINT: Tape the screwdriver tip before use.

b. Remove the bolt.
c. Using a screwdriver, remove the front pillar garnish.
d. Remove the bolt.




e. Pack the airbag with protection cover.
f. Employ the same manner described above to the other side.

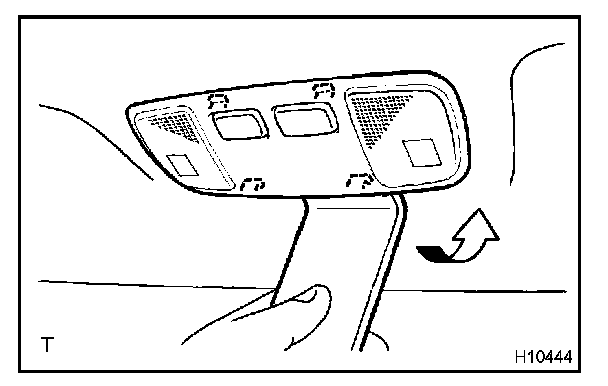

24. w/o Sliding roof:
REMOVE MAP LIGHT ASSEMBLY

a. Using a moulding remover, remove the lens.
b. Remove the 2 screws and map light assembly.
c. Disconnect the connector.

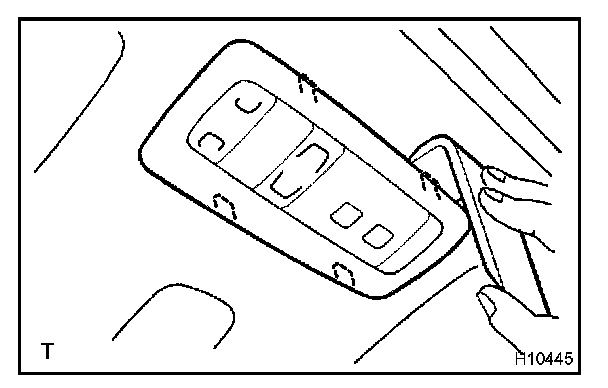

25. w/ Sliding roof:
REMOVE MAP LIGHT ASSEMBLY

a. Using a moulding remover, remove the cover.
b. Remove the 2 screws and map light assembly.
c. Disconnect the connector.

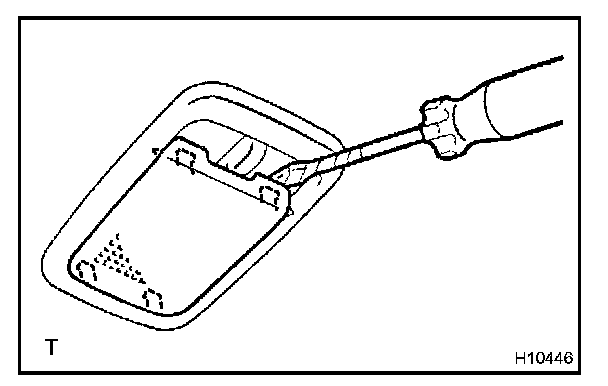

26. REMOVE ROOM LIGHT ASSEMBLY
a. Using a screwdriver, remove the lens.

HINT: Tape the screwdriver tip before use.

b. Remove the 2 screws and room light assembly.
c. Disconnect the connector.

27. w/ Sliding Roof:
REMOVE SLIDING ROOF OPENING TRIM

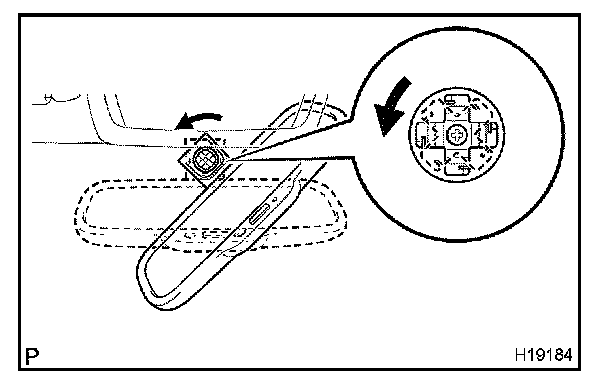

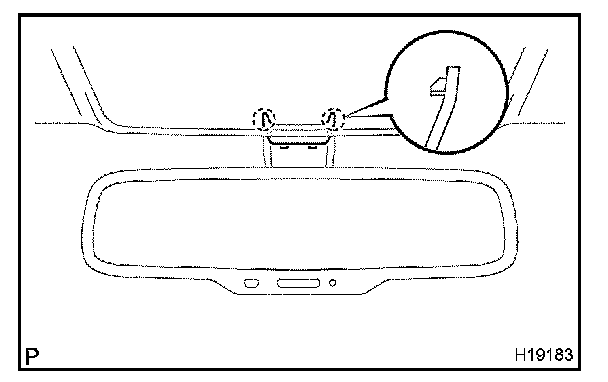

28. REMOVE INNER REAR VIEW MIRROR
a. Using a screwdriver, remove the inner rear view mirror stay holder cover.

HINT: Tape the screwdriver tip before use.




b. Electro Chromic Inner Mirror:
Disconnect the connector.

c. Remove the mirror assembly by turning the stay part of the mirror counterclockwise.

29. REMOVE ASSIST GRIPS
a. Using a screwdriver, remove the caps.

HINT: Tape the screwdriver tip before use.

b. Remove the 6 bolts and 3 assist grips.

30. REMOVE 2 SUN VISOR
a. Remove the 4 screws and pull the sun visors downward.
b. Disconnect the connectors.

31. REMOVE 2 SUN VISOR HOLDER
Remove the 2 screws and 2 holders.

32. REMOVE SHOULDER BELT ANCHOR COVER UPPER
Remove the 2 screws and shoulder belt anchor cover upper.

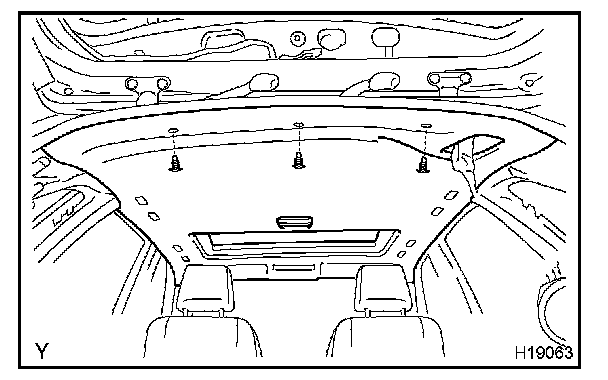

33. REMOVE ROOF HEADLINING
a. Remove the 3 clips.
b. Pull the roof headlining downward to remove it.

INSTALLATION
The installation procedures are the removal procedures in reverse order.
