Roof Headlining (Sedan)
REMOVALHINT: A bolt without a torque specification is shown in the standard bolt chart.

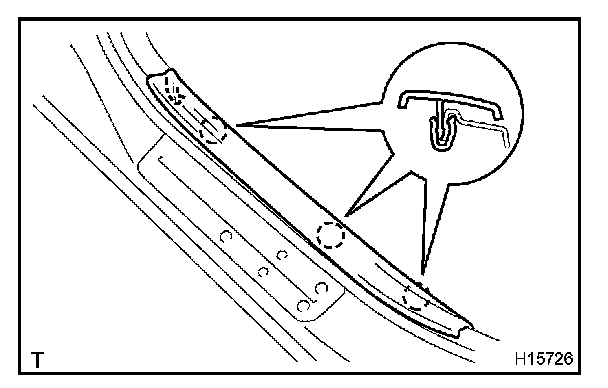

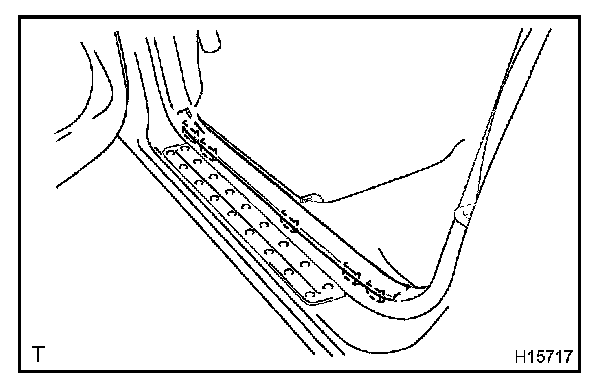

1. REMOVE REAR SEAT CUSHION
2. REMOVE REAR SEATBACK
3. REMOVE FRONT DOOR INSIDE SCUFF PLATE
a. Using a screwdriver, remove the front door inside scuff plate as shown in the illustration.
HINT: Tape the screwdriver tip before use.
b. Employ the same manner described above to the other side.
4. REMOVE REAR DOOR INSIDE SCUFF PLATE
a. Using a screwdriver, remove the rear door inside scuff plate as shown in the illustration.
HINT: Tape the screwdriver tip before use.
b. Employ the same manner described above to the other side.

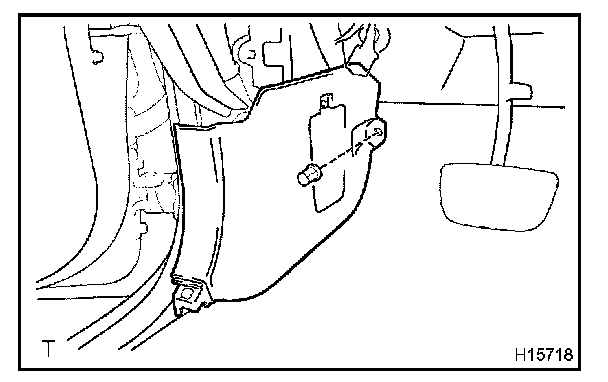

5. REMOVE COWL SIDE TRIM BOARD
a. Remove the clip and cowl side trim board.
b. Employ the same manner described above to the other side.
6. REMOVE FRONT DOOR OPENING TRIMS
7. REMOVE REAR DOOR OPENING TRIMS

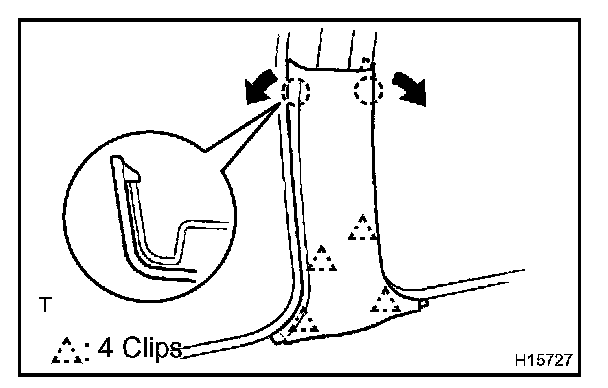

8. REMOVE CENTER PILLAR LOWER GARNISH
a. Using a screwdriver, remove the center pillar lower garnish.
HINT: Tape the screwdriver tip before use.
b. Employ the same manner described above to the other side.

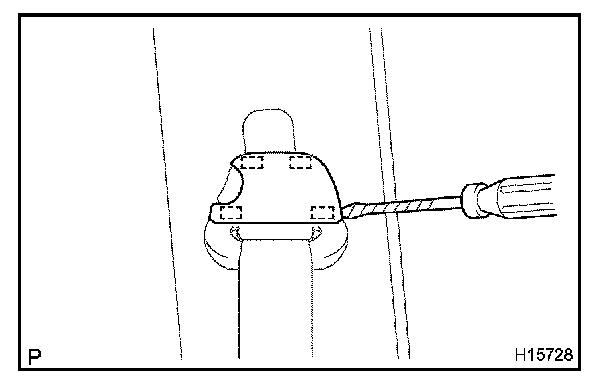

9. REMOVE FRONT SEAT OUTER BELT SHOULDER ANCHOR
a. Using a screwdriver, remove the anchor cap.
HINT: Tape the screwdriver tip before use.
b. Remove the bolt and front seat outer belt shoulder anchor.
Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)
c. Employ the same manner described above to the other side.

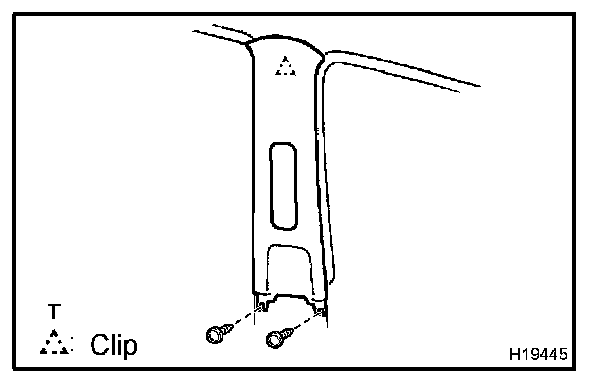

10. REMOVE CENTER PILLAR GARNISH
a. Remove the 2 screws.
b. Using a screwdriver, remove the center pillar garnish.
HINT: Tape the screwdriver tip before use.
c. Employ the same manner described above to the other side.

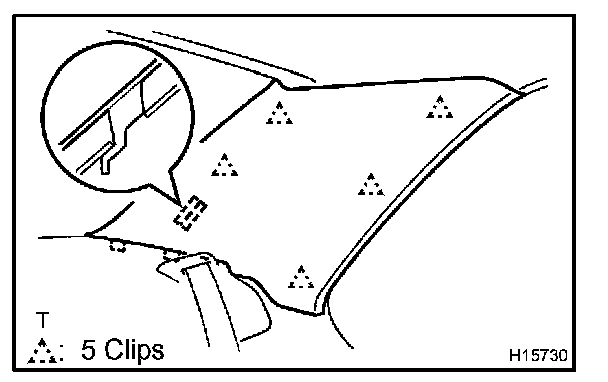

11. REMOVE ROOF SIDE INNER GARNISH
a. Using a screwdriver, remove the roof side inner garnish.
HINT: Tape the screwdriver tip before use.
b. Employ the same manner described above to the other side.

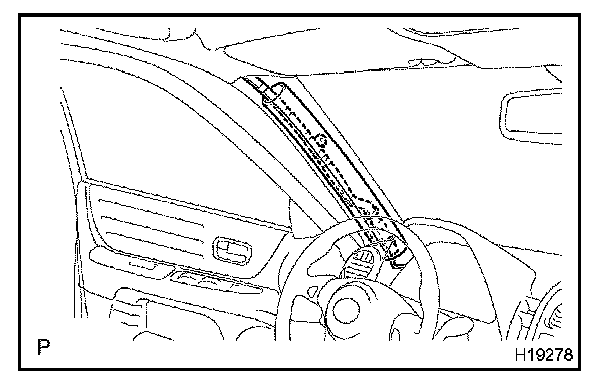

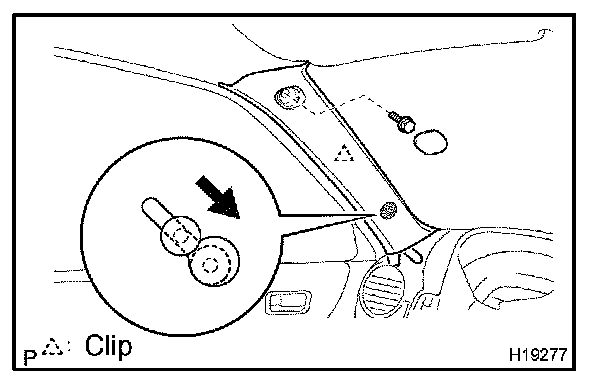

12. REMOVE FRONT PILLAR GARNISH
a. Using a screwdriver, remove the front pillar garnish cover.
HINT: Tape the screwdriver tip before use.
b. Remove the bolt.
c. Using a screwdriver, remove the front pillar garnish.
d. Remove the bolt.
e. Pack the airbag with protection cover.
f. Employ the same manner described above to the other side.
13. w/o Sliding roof:

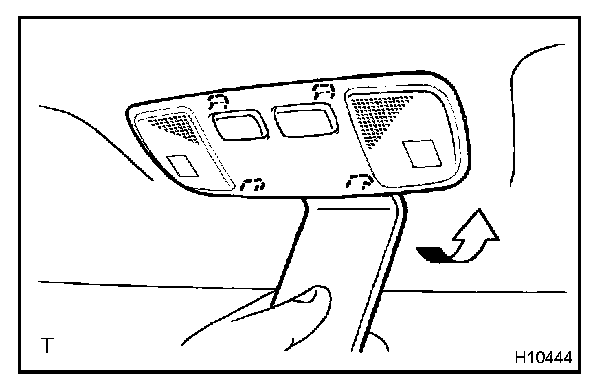

REMOVE MAP LIGHT ASSEMBLY
a. Using a moulding remover, remove the lens.
b. Remove the 2 screws and the map light assembly.
c. Disconnect the connector.
14. w/ Sliding roof:
REMOVE MAP LIGHT ASSEMBLY
a. Using a moulding remover, remove the cover.
b. Remove the 2 screws and the the map light assembly.
c. Disconnect the connector.

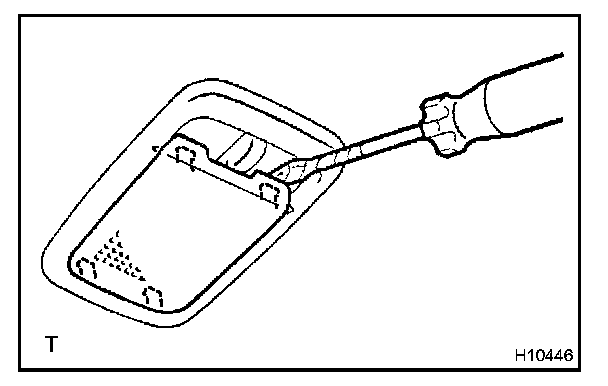

15. REMOVE ROOM LIGHT ASSEMBLY
a. Using a screwdriver, remove the lens.
HINT: Tape the screwdriver tip before use.
b. Remove the 2 screws and the room light assembly.
c. Disconnect the connector.
16. w/ Sliding roof:
REMOVE ROOF OPENING TRIM

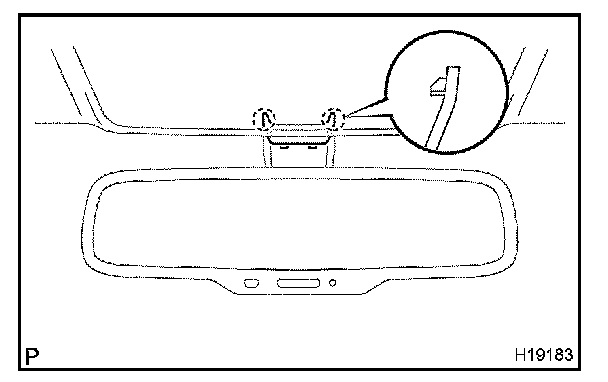

17. REMOVE INNER REAR VIEW MIRROR
a. Using a screwdriver, remove the inner rear view mirror stay holder cover.
HINT: Tape the screwdriver tip before use.
b. Electro chromic inner mirror:
Disconnect the connector.

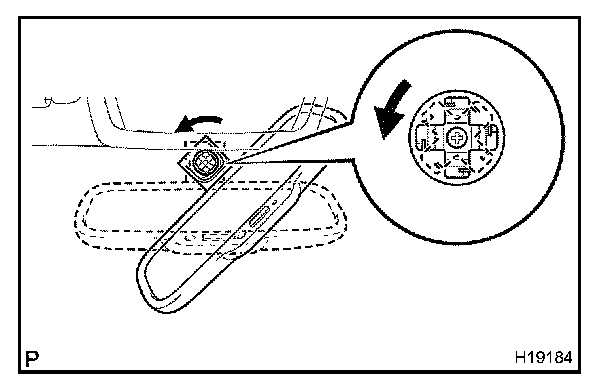

c. Remove the mirror assembly by turning the stay part of the mirror counterclockwise.
18. REMOVE ASSIST GRIPS
a. Using a screwdriver, remove the caps.
HINT: Tape the screwdriver tip before use.
b. Remove the 6 bolts and 3 assist grips.
19. REMOVE SUN VISORS
a. Remove the 4 screws and pull the sun visors downward.
b. Disconnect the connectors.
20. REMOVE SUN VISOR HOLDERS
Remove the 2 screws and 2 holders.

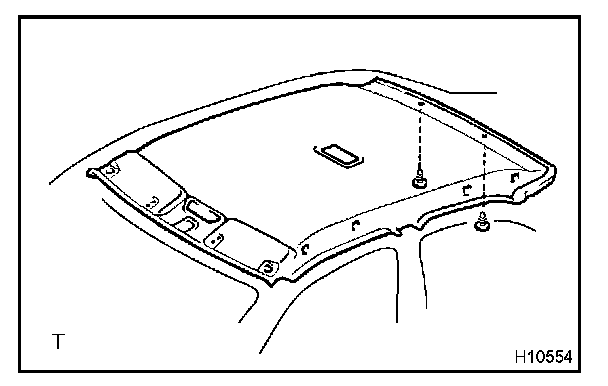

21. REMOVE ROOF HEADLINING
a. Remove the 2 clips.
b. Pull the roof headlining downward to remove it.
INSTALLATION
The installation procedures are the removal procedures in reverse order.
