Hood Sensor/Switch (For Alarm): Testing and Inspection

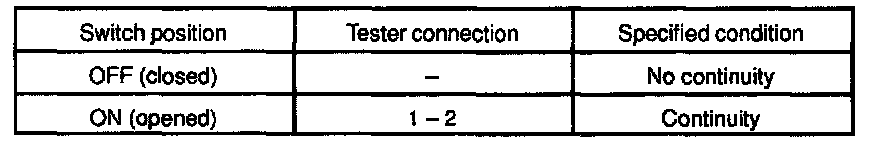

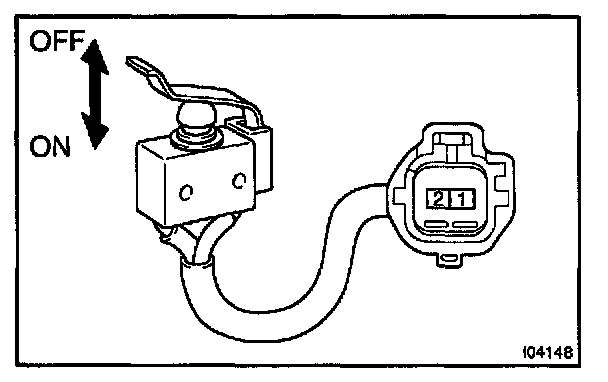

INSPECT ENGINE HOOD COURTESY SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

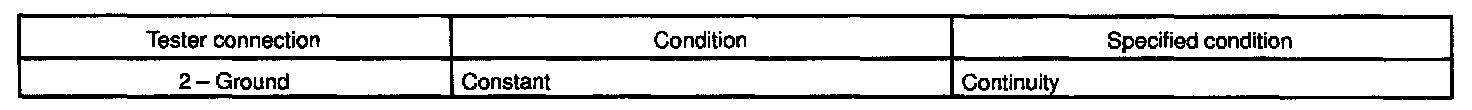

INSPECT ENGINE HOOD COURTESY SWITCH CIRCUIT

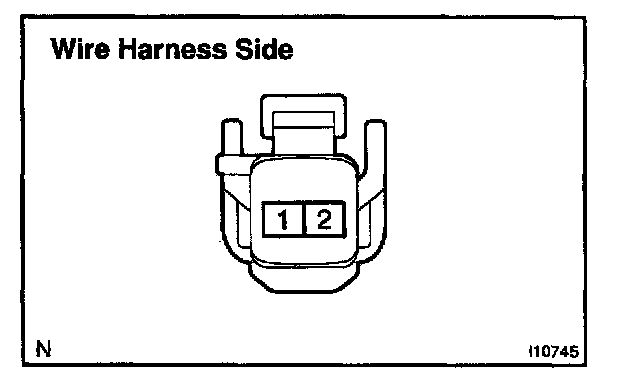

Disconnect the connector from the switch and inspect the connector on the wire harness side, as shown.
If circuit is not as specified, inspect power source or wire harness.
