Fuel Sender Gauge Circuit

Fuel Sender gauge circuit

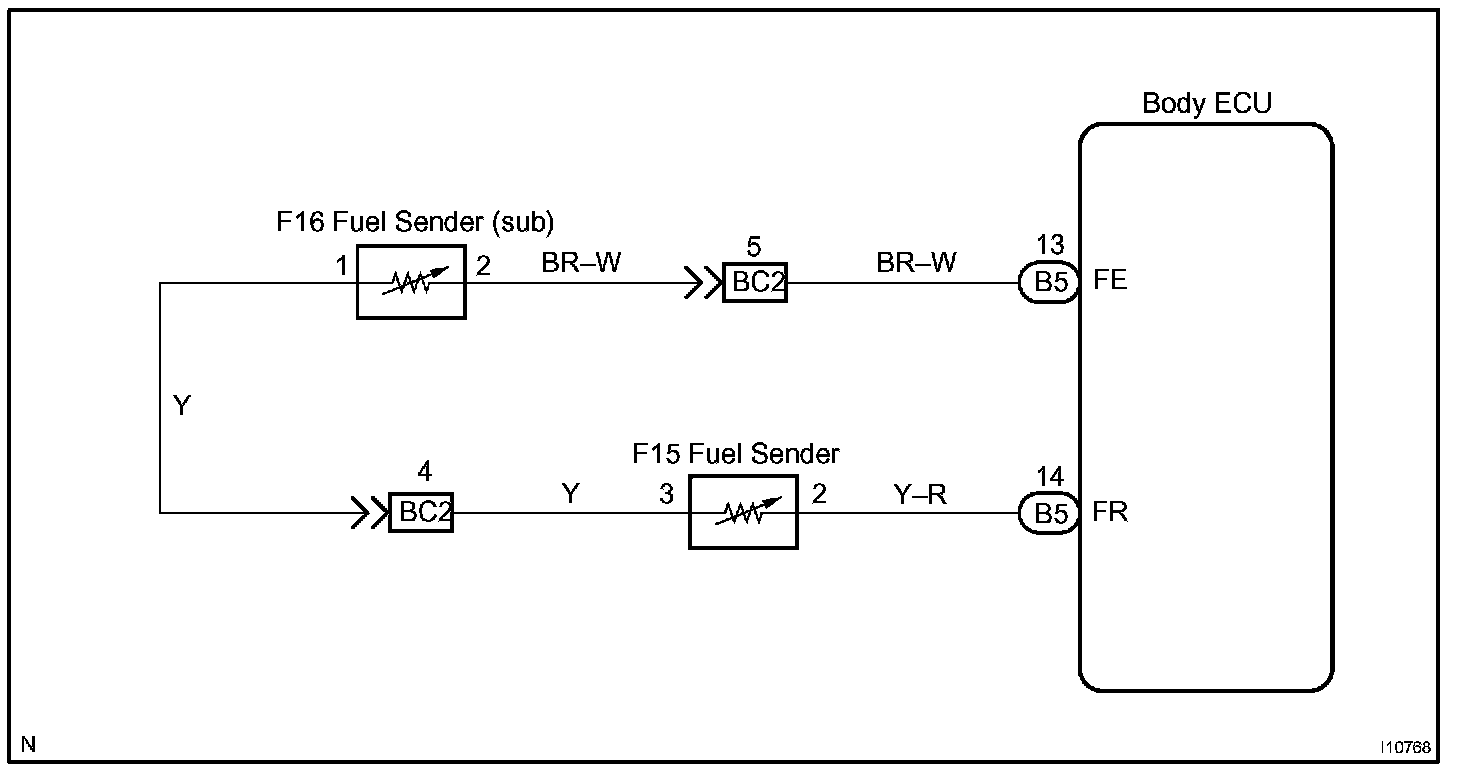

Wiring Diagram:

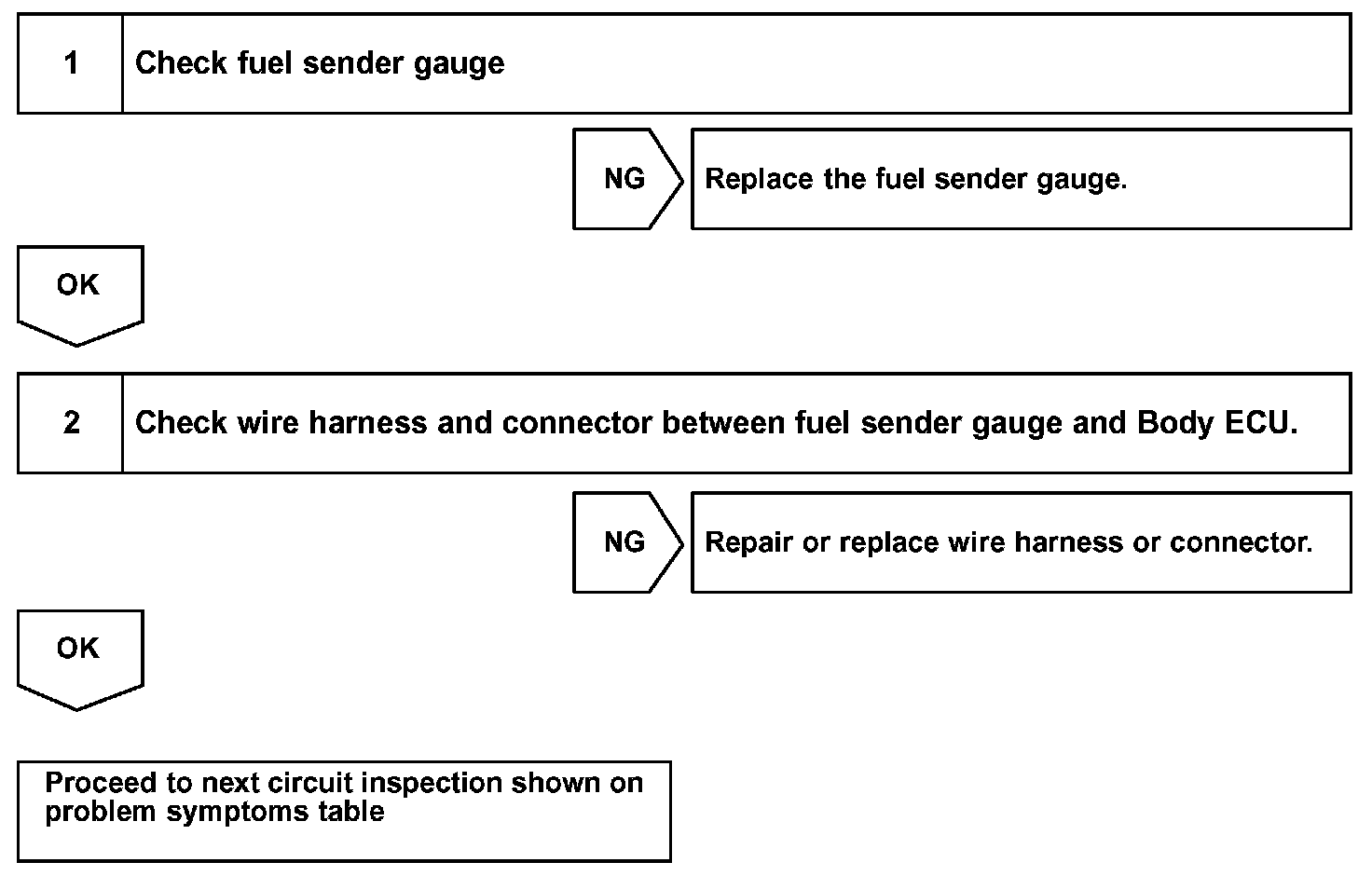

Step 1 - 2:




INSPECTION PROCEDURE
