Diagnosis Circuit

Diagnosis Circuit

CIRCUIT DESCRIPTION
This circuit sends a signal to the ECU that DTC output is required.

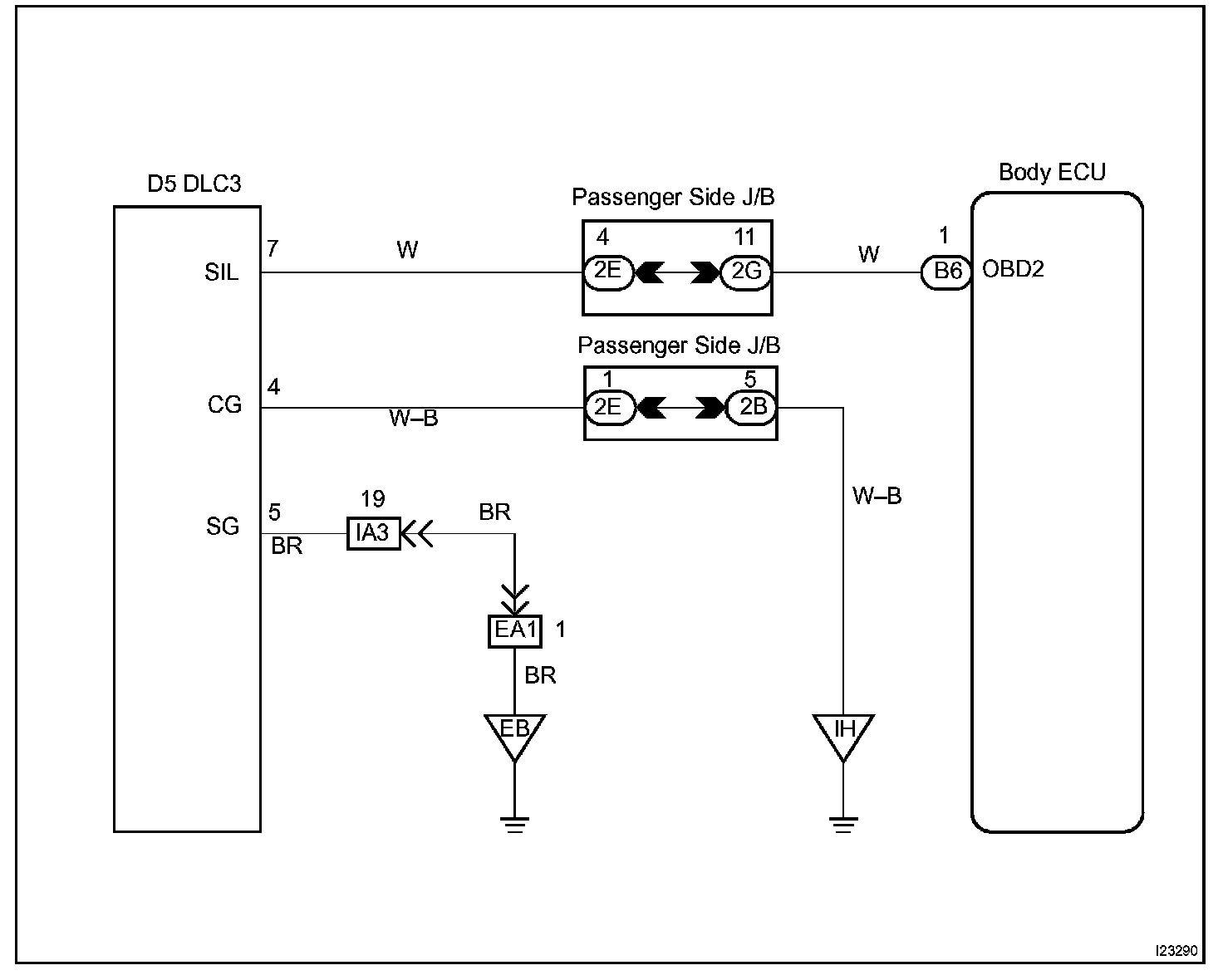

Wiring Diagram:

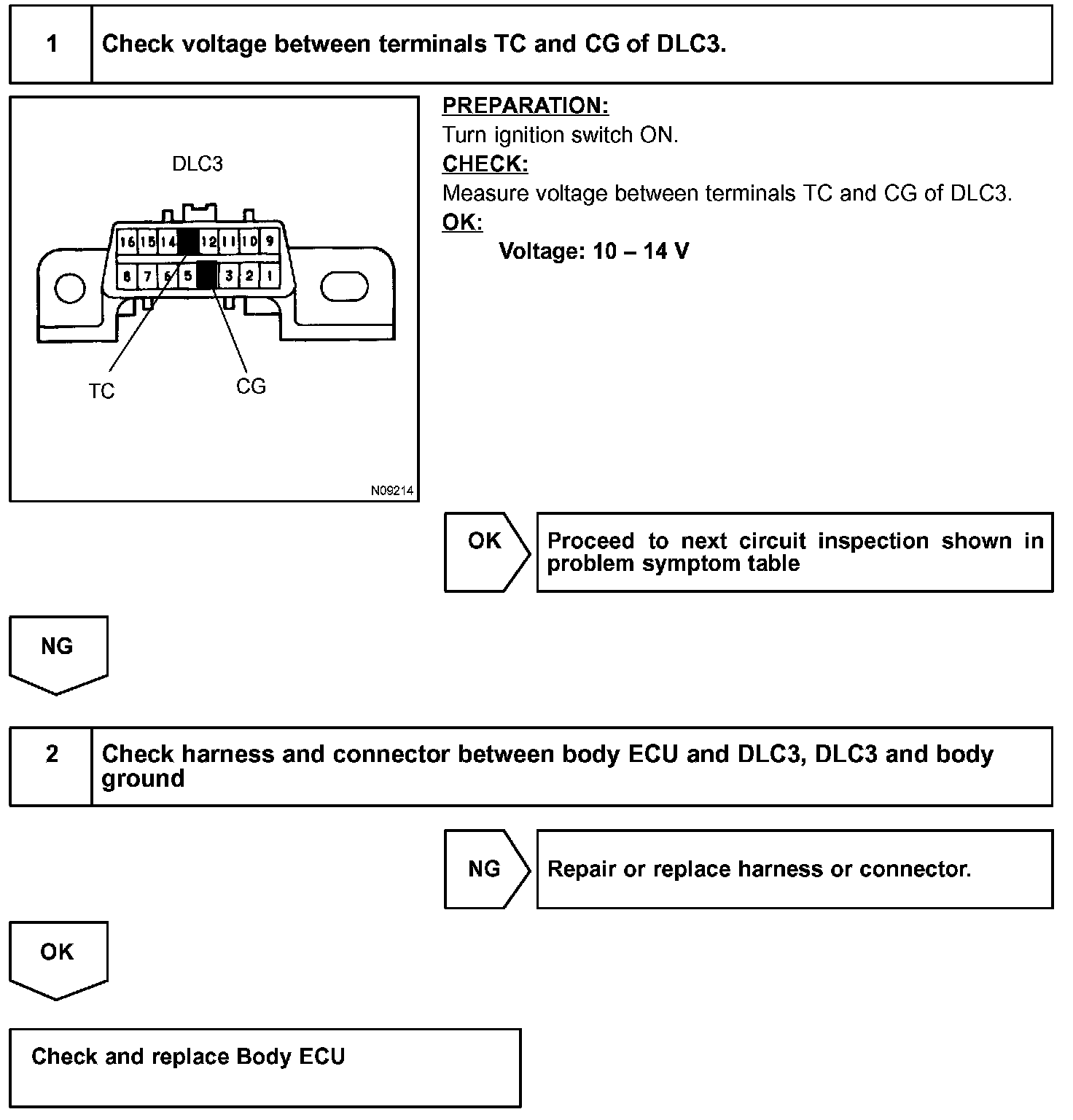

Step 1 - 2:




INSPECTION PROCEDURE
