Component Tests and General Diagnostics

INSPECTION

Part 1:

Part 2:

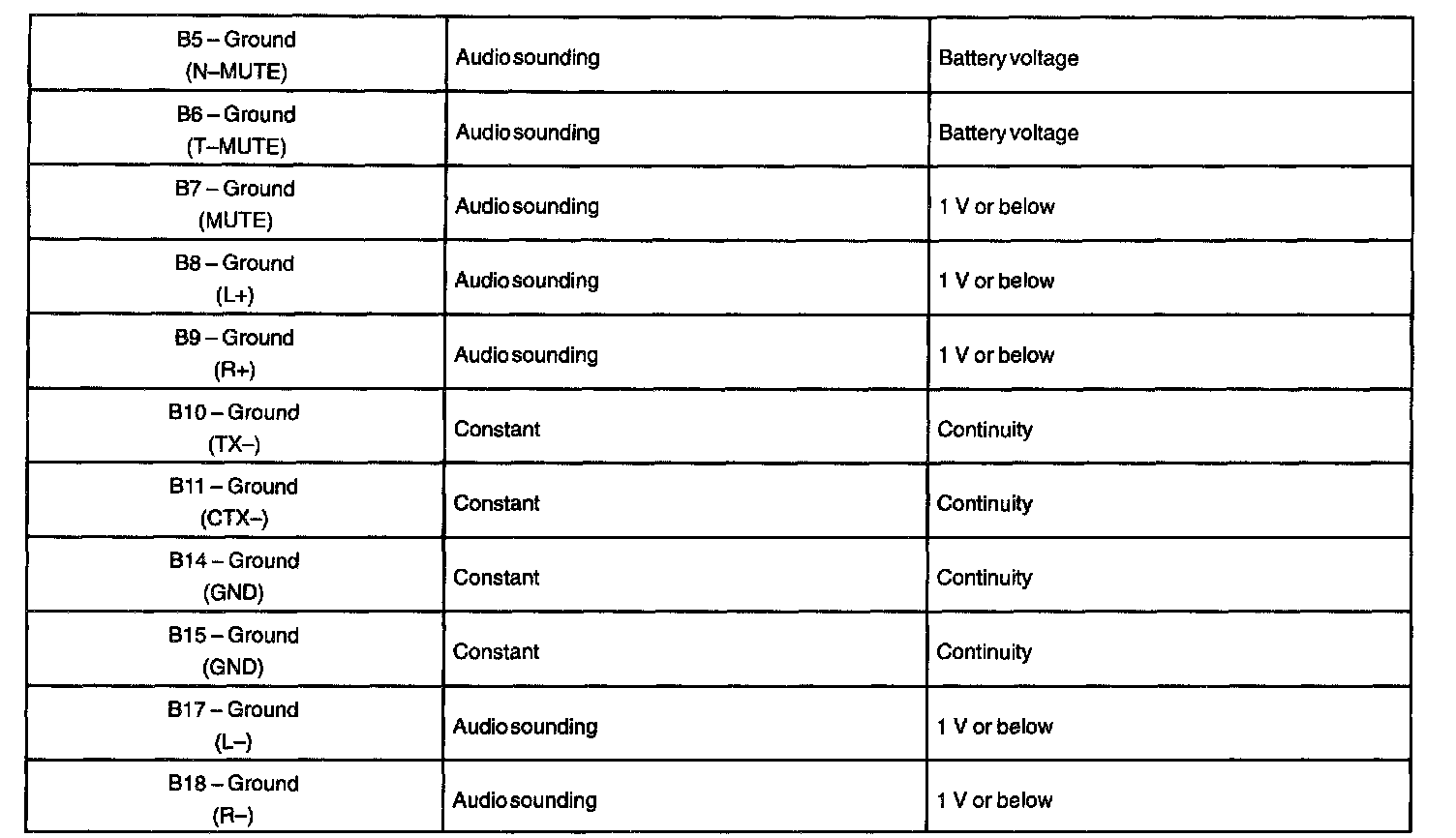

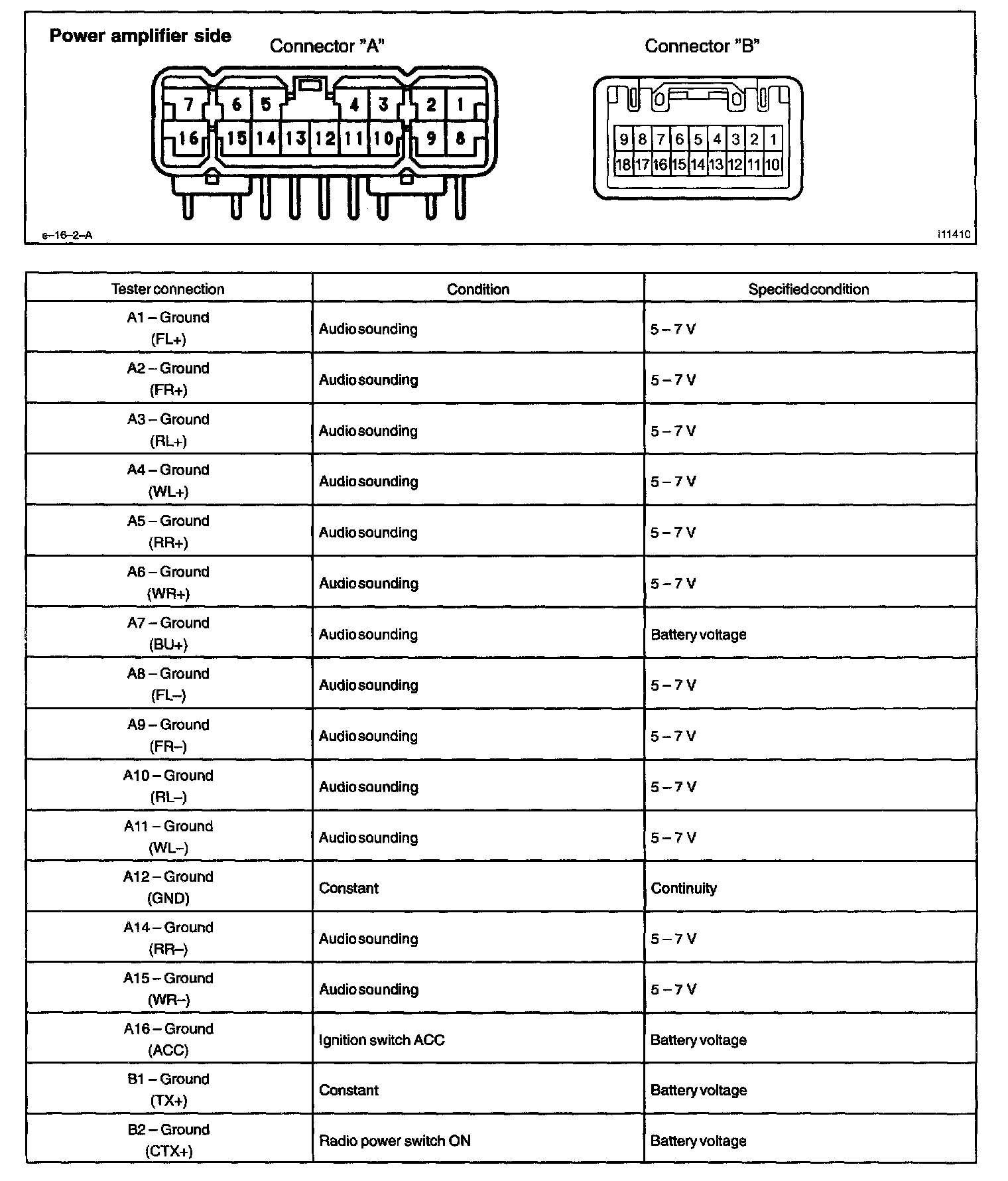

1. INSPECT POWER AMPLIFIER CIRCUIT
Connect the connector from power amplifier and inspect the connector on the wire harness side.
If the circuit is not as specified, inspect the circuits connected to other parts.

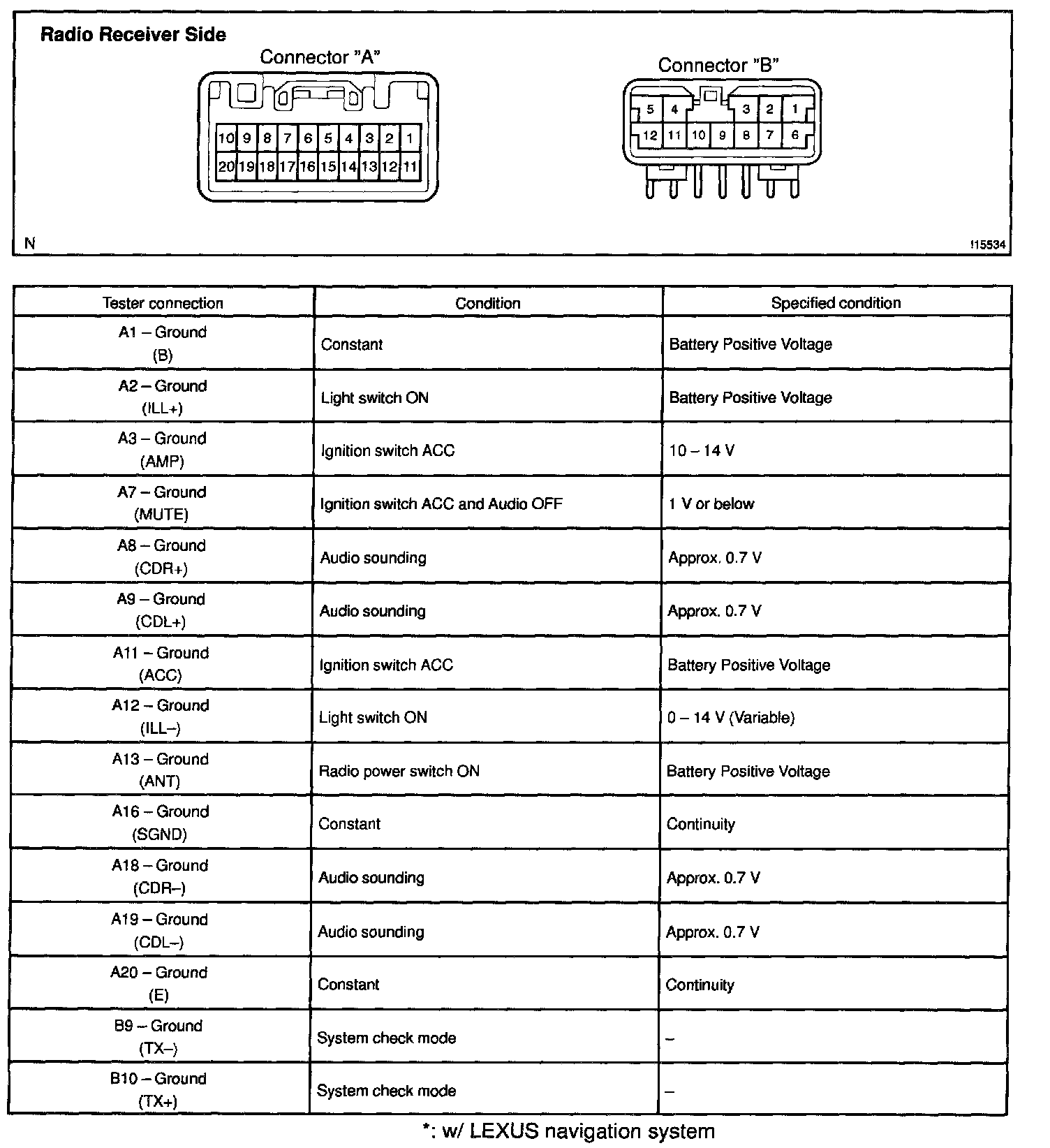

2. INSPECT RADIO RECEIVER ASSEMBLY CIRCUIT
Connect the connectors from the radio receiver assembly, and inspect the connector on the wire harness side.
If the circuit is not as specified, inspect the circuits connected to other parts.

HINT: Check the wire harness between radio receiver assembly and power amplifier.

3. INSPECT GLASS IMPRINTED ANTENNA
Use same procedure as for "INSPECT DEFOGGER WIRES".

4. REPAIR GLASS IMPRINTED ANTENNA
Use same procedure as for "REPAIR DEFOGGER WIRES".
