Diagnosis System Mode

DIAGNOSIS SYSTEM MODE

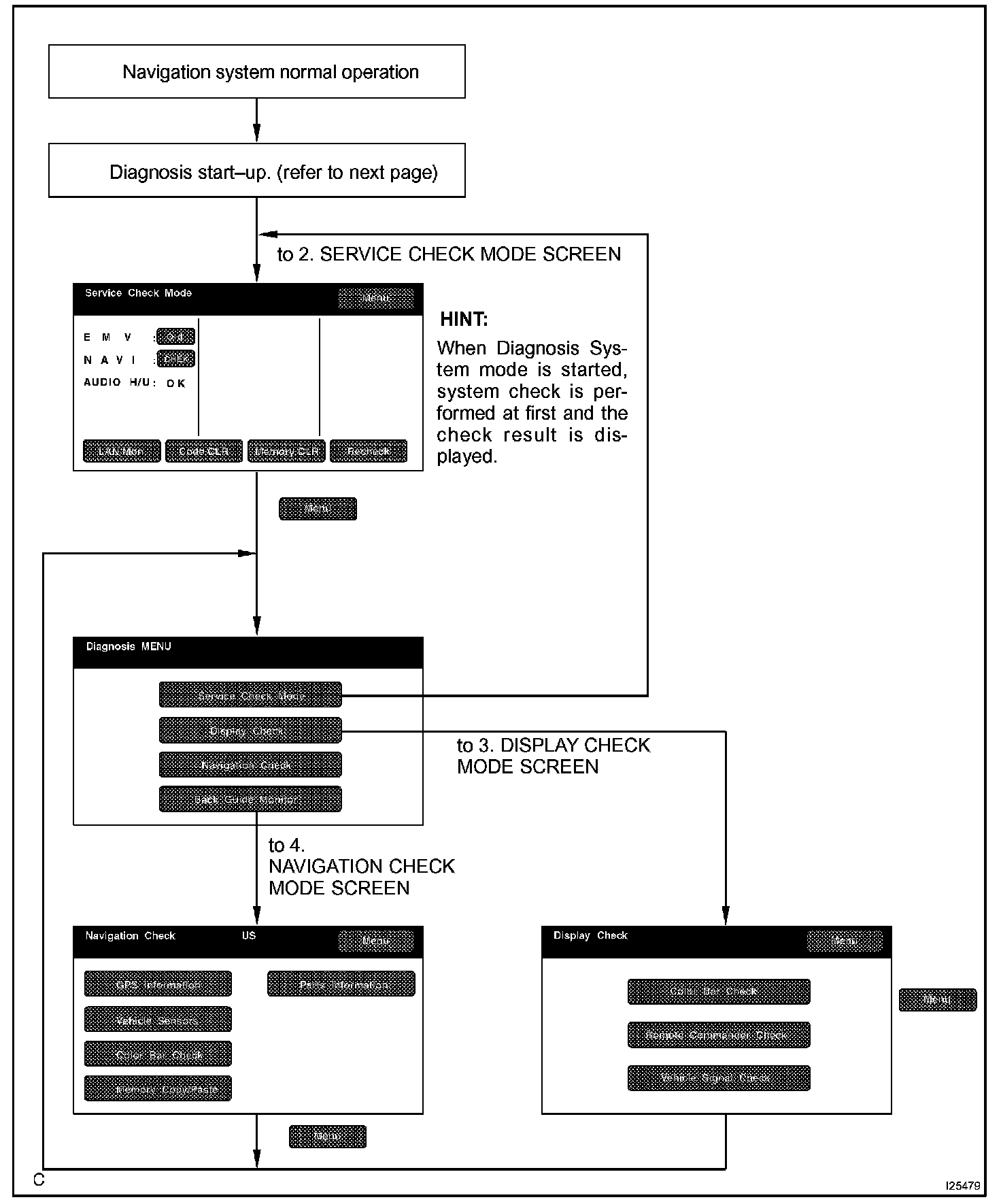

HINT: Diagnosis System Mode is operated as follows.

a. DIAGNOSIS START-UP
To start the diagnosis menu, there are 2 ways: using a diagnosis check wire and using a switch.

b. START-UP BY SWITCH OPERATION (light control switch)
1. Vehicle speed is 0 km/h (0 mph).
2. Parking brake switch is pressed.

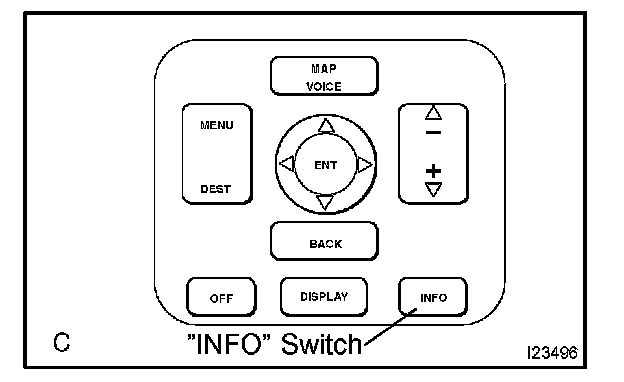

3. While pressing "INFO" switch, by turning the light control switch to OFF, TAIL, OFF, TAIL and OFF the system is started up.

HINT:

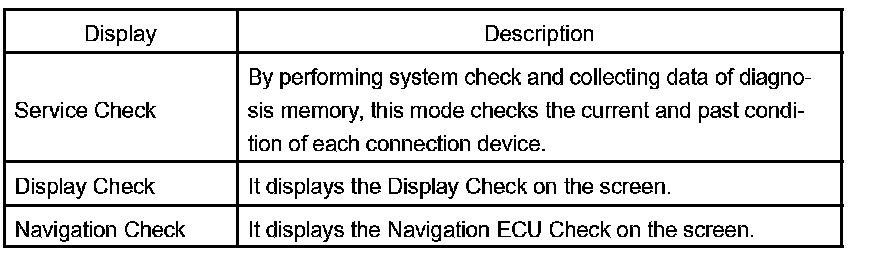

- When Diagnosis System starts, Service Check screen is displayed and the service check begins.
- Select MENU to display Diagnosis Check Menu.

c. FINISHING DIAGNOSIS SYSTEM MODE
Turn the ignition switch from ACC to OFF to finish the mode. If it is started by switch operation.
