Navigation Check Mode

NAVIGATION CHECK MODE






HINT: Navigation Check Mode is operated as follows.

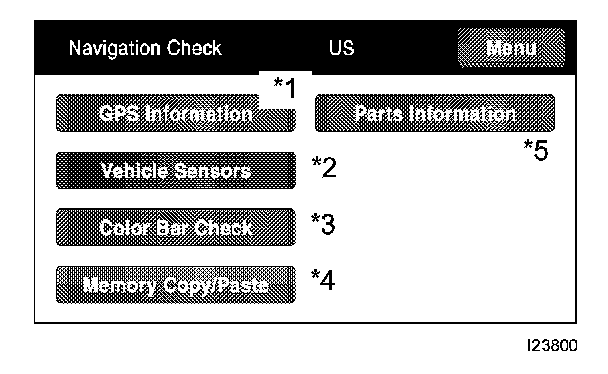

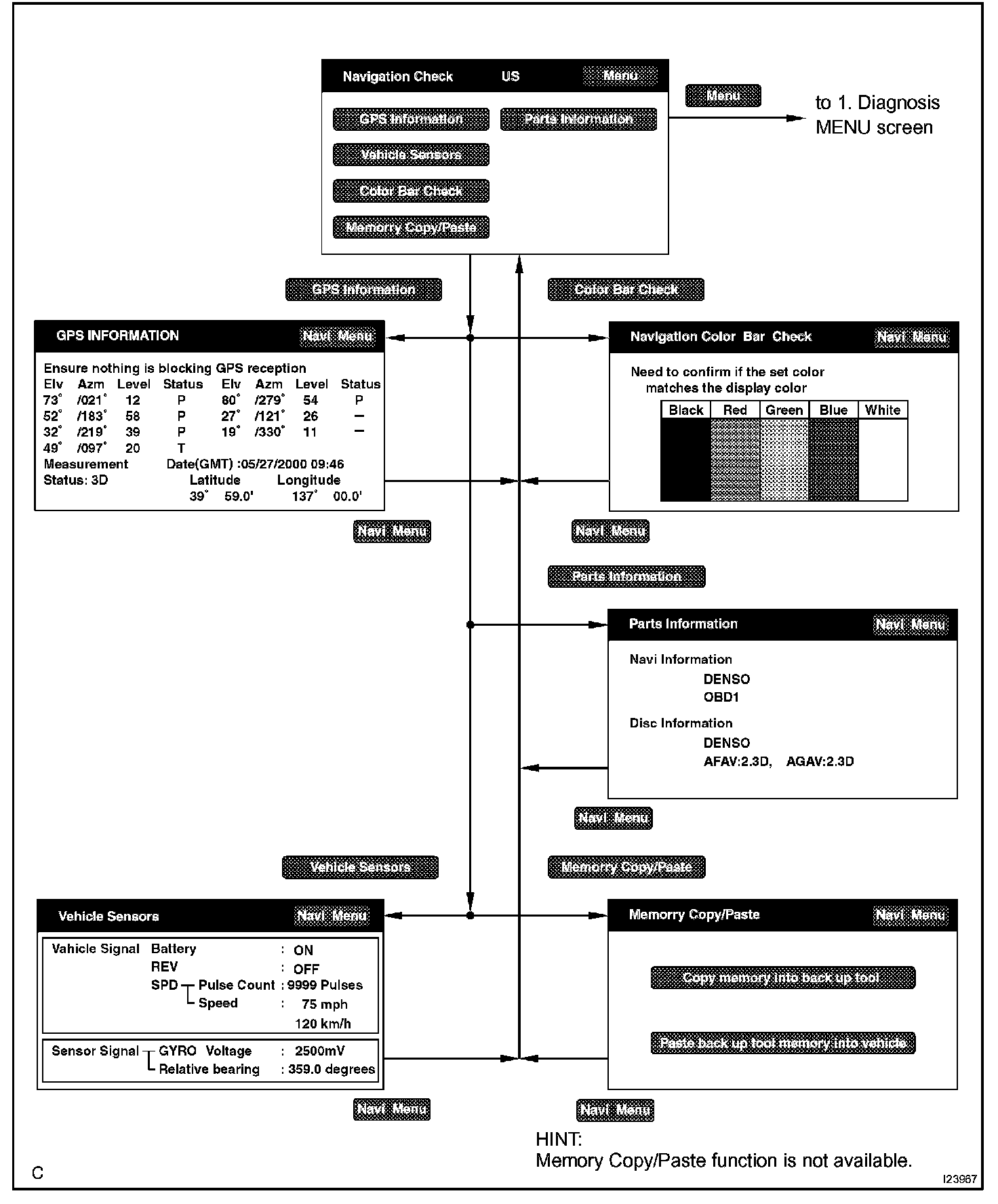

a. Navigation Check Mode

HINT:
- In the Navigation Check mode, the checks mentioned above can be conducted.
- The Navigation ECU operates each Navigation Check screen.










b. GPS Information
1. Start the Diagnosis system.
2. Select "MENU".
3. Select "Navigation Check".
4. Select "GPS Information".

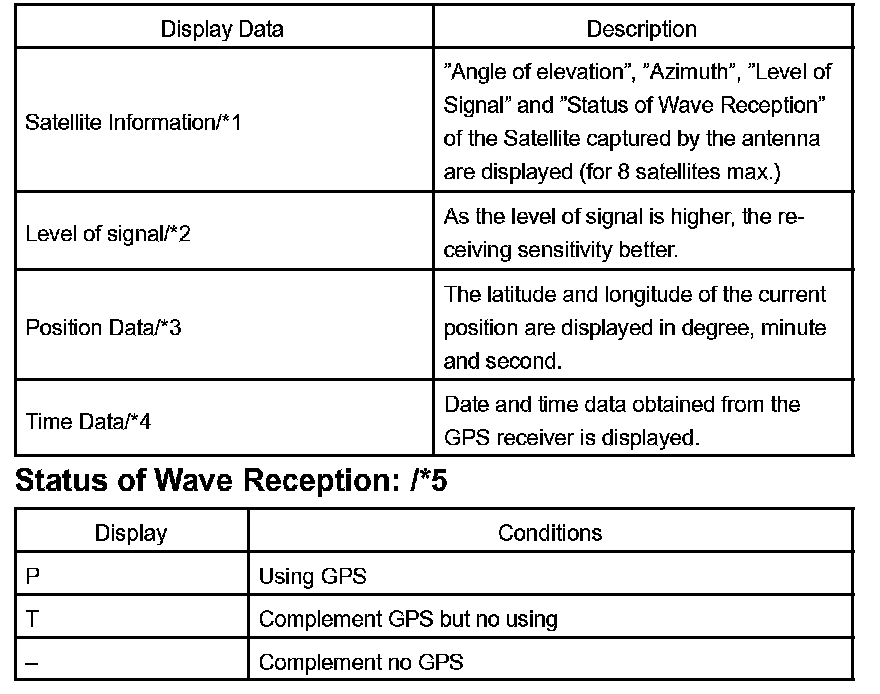

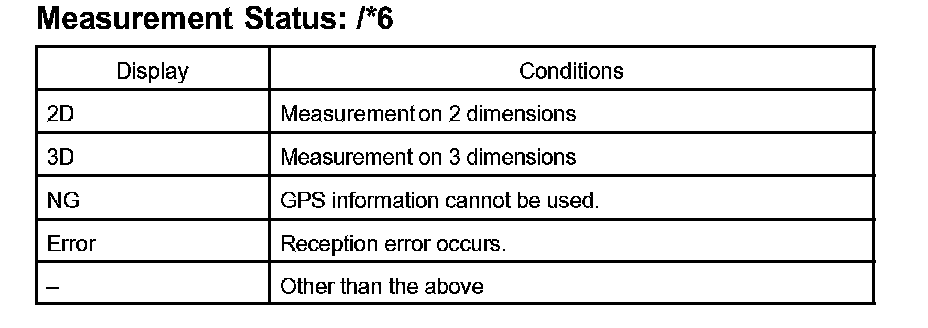

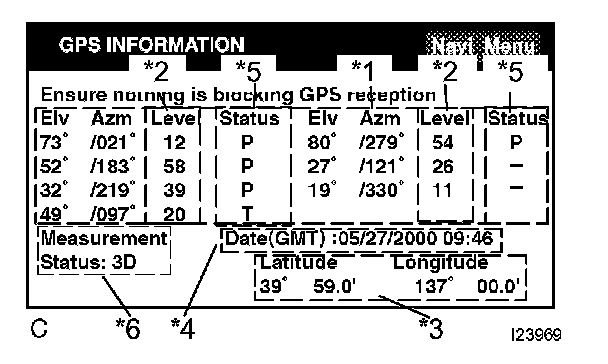

5. Check the GPS-related information.

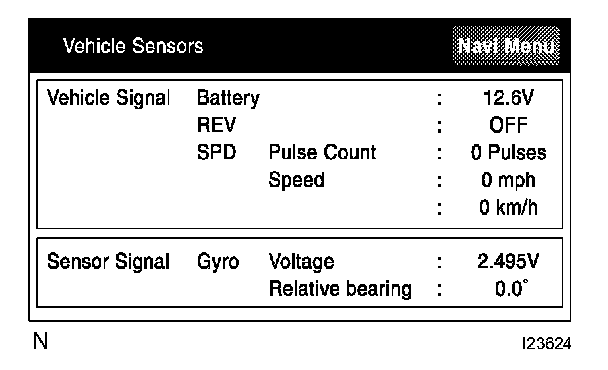

c. Vehicle Sensors
1. Start the Diagnosis system.
2. Select "MENU".
3. Select "Navigation Check".
4. Select "Vehicle sensors".

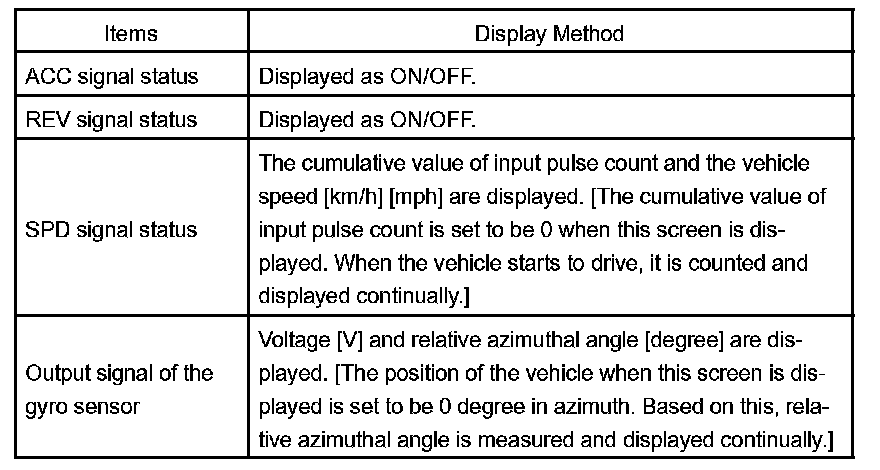

5. Check the vehicle signals (ACC, REV, SPD) and the output signal of the gyro sensor introduced into the navigation ECU.




d. Navigation Color Bar Check
1. Start the Diagnosis system.
2. Select "MENU".
3. Select "Navigation Check".
4. Select "Color Bar Check".

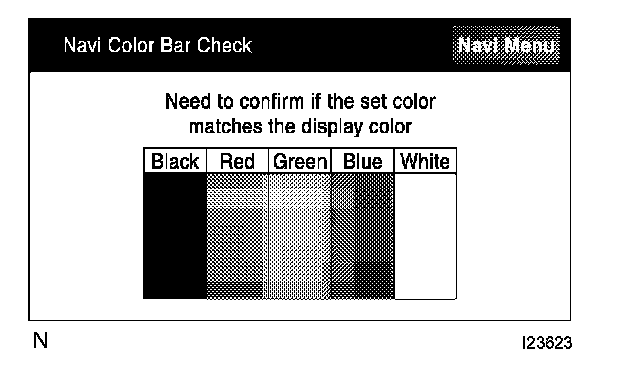

5. Make sure that the set color matches the display color.
6. Compare with the Color Bar Check in the Display Check and make sure that no difference is found.




e. Parts Information
1. Start the Diagnosis system.
2. Select "MENU".
3. Select "Navigation Check".
4. Select "Parts Information".

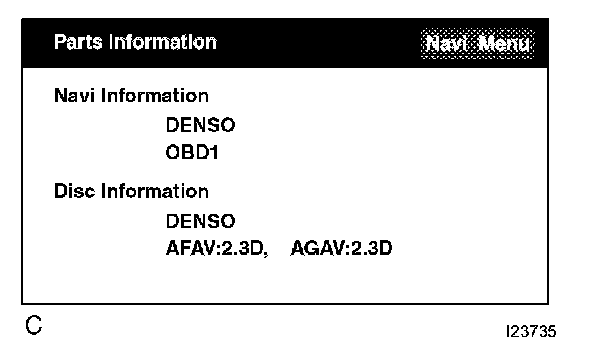

5. Check the program and disc version.

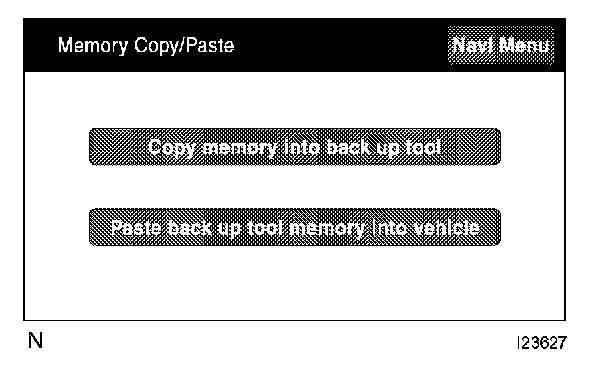

f. Memory/ Copy/ Paste

HINT: This function is not available.
