Display Check Mode

DISPLAY CHECK MODE

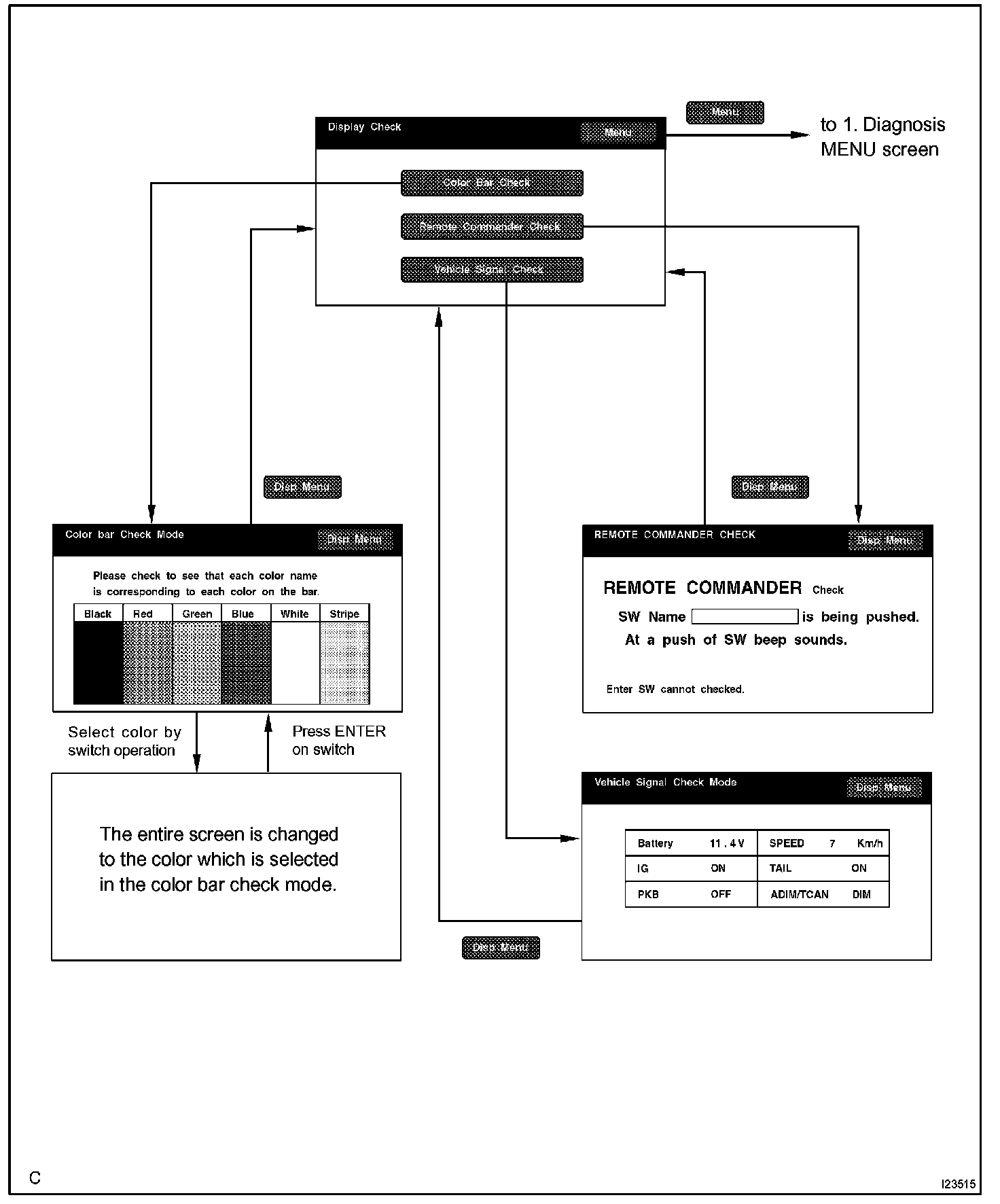

HINT: Display Check Mode is operated as follows.

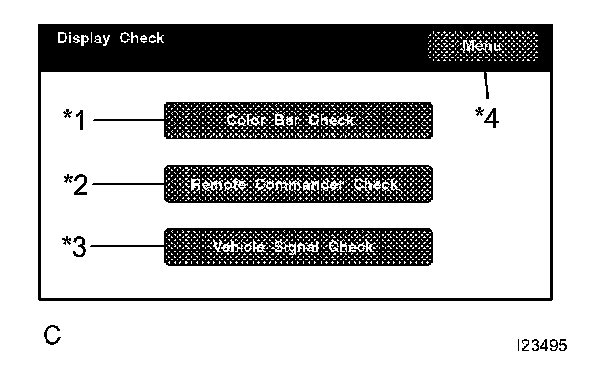

a. Display Check Mode

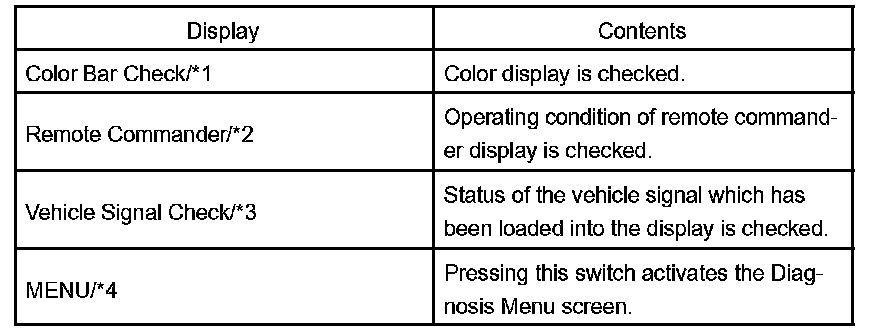

HINT: In Display Check Mode, above checks can be performed.

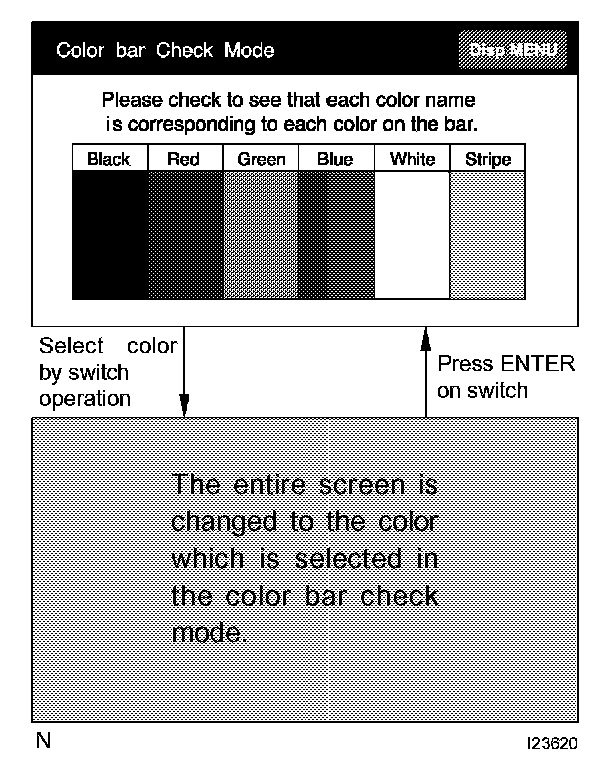

b. Display Color Bar Check
1. Start the Diagnosis System.
2. Select "MENU".
3. Select "Display Check".
4. Select "Color Bar Check".
5. Make sure that each color name is corresponding to each color on the bar.

HINT: Select Black, Red, Green, Blue, White and Stripe to display selected colors and stripe on the entire screen.

6. Compare with the Color Bar Check in the Navigation Check and make sure that no difference is found.

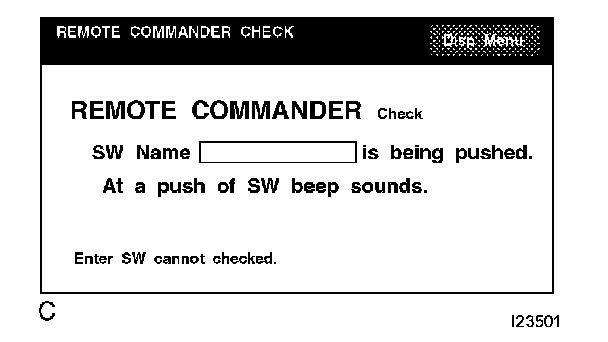

c. Display Remote Commander Check
1. Start the Diagnosis system.
2. Select "MENU".
3. Select "Display Check".
4. Select "Remote Commander".
5. Press each switch and make sure that it corresponds to the display on the screen.

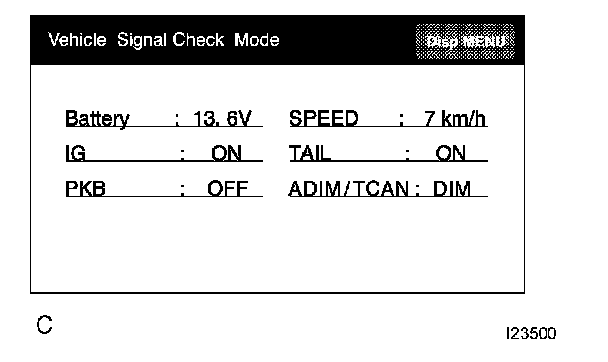

d. Display Vehicle Signal Check
1. Start the Diagnosis system.
2. Select "MENU".
3. Select "Display Check".
4. Select "Vehicle Signal Check".
5. Check the status of the vehicle signal (Battery, PKB, SPEED, TAIL, ADIM/TCAN) loaded into display.

HINT: Vehicle signal data is updated every 1 second.
