Power Source Circuit

Power source circuit

CIRCUIT DESCRIPTION
This circuit provides power to operate the Transponder Key amplifier.

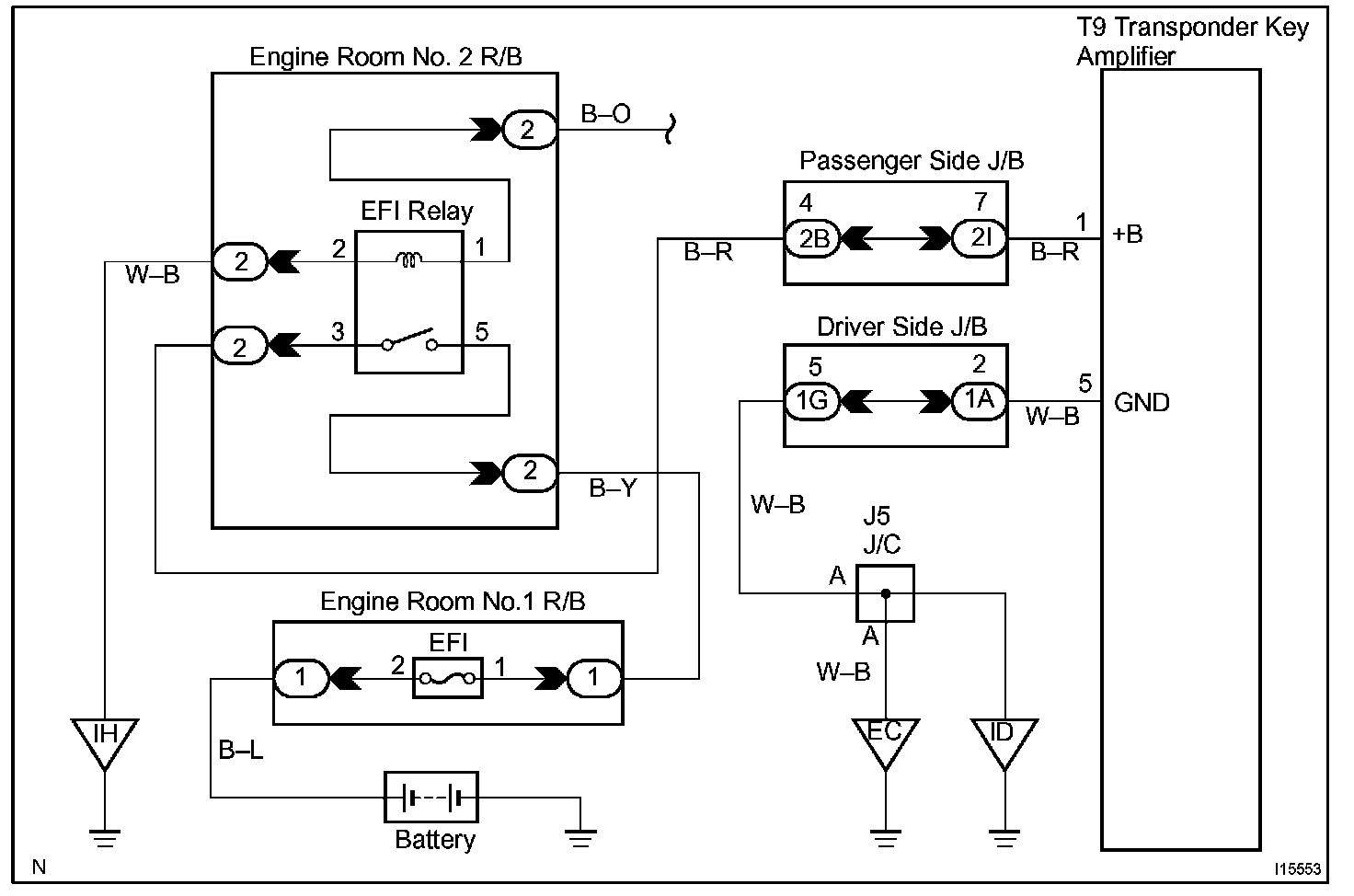

Wiring Diagram:






Step 1 - 3:

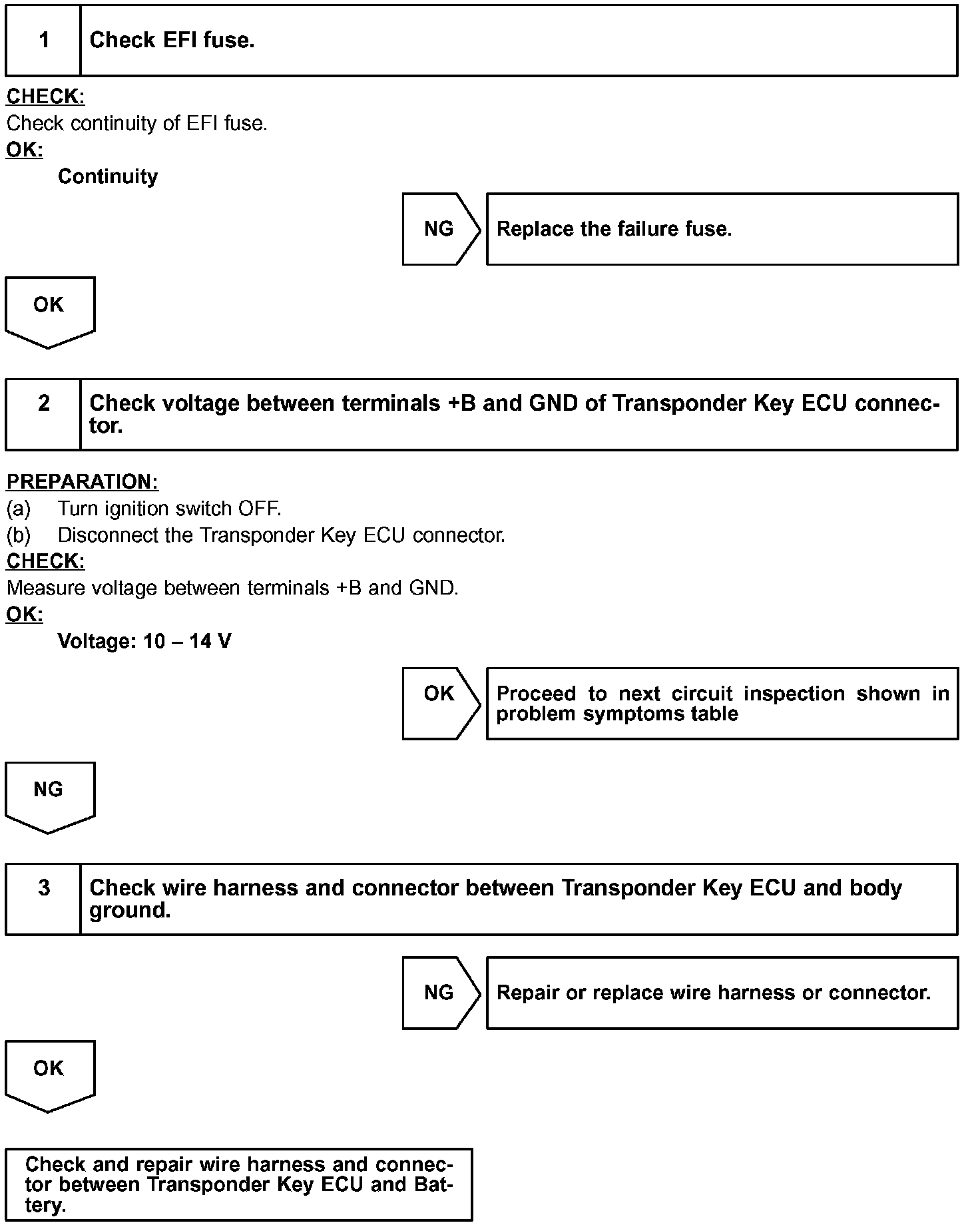

INSPECTION PROCEDURE
