Check the DLC3

Check the DLC3

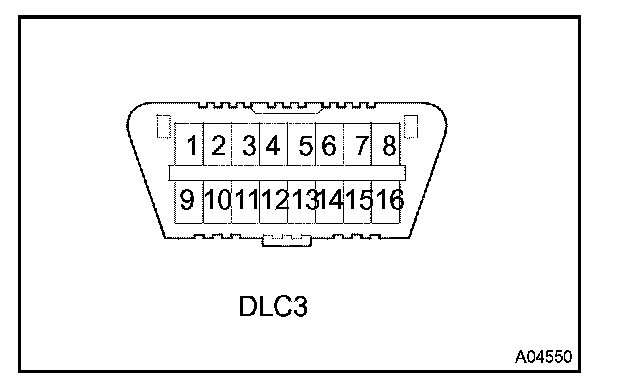

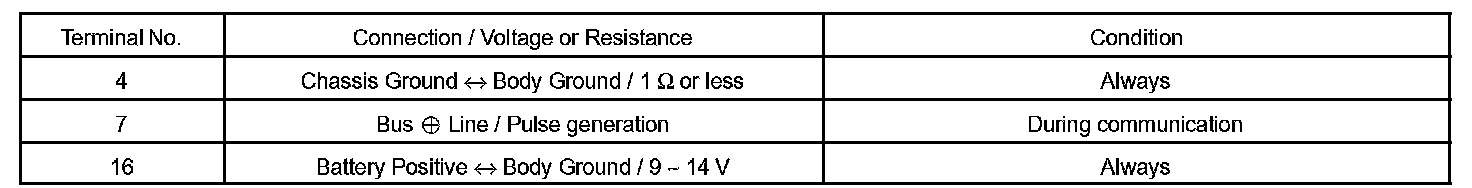

The vehicle's ECM uses ISO 9141-2 for communication. The terminal arrangement of DLC3 complies with SAE J1962 and matches the ISO 9141-2 format.

HINT: If your display shows "UNABLE TO CONNECT TO VEHICLE" when you have connected the cable of the LEXUS hand-held tester to DLC3, turned the ignition switch ON and operated the hand-held tester, there is a problem on the vehicle side or tool side.

- If communication is normal when connecting the tool to another vehicle, inspect DLC3 on the original vehicle.
- If communication is still not possible when connecting the tool to another vehicle, the problem is probably in the tool itself. Consult the Service Department listed in the tool's instruction manual in that case.
