Home >> Lexus >> 2005 >> IS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Ignition Key In Signal >> Testing and Inspection

Ignition Key In Signal: Testing and Inspection

INSPECTION

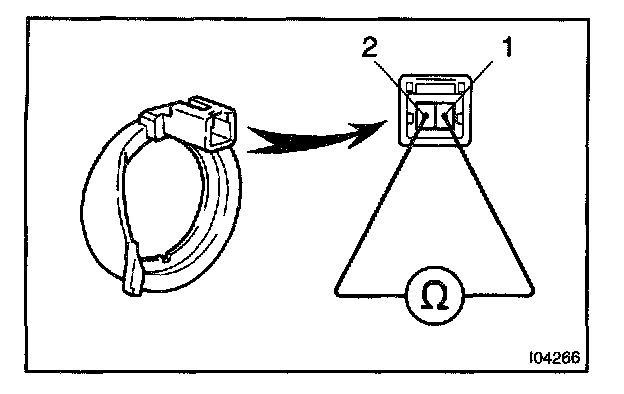

INSPECTION TRANSPONDER KEY COIL CONTINUITY
Check that continuity exists between terminals 1 and 2.
If continuity is not as specified, replace the coil.
