P0756

DTC P0756 Shift Solenoid "B" Performance (Shift Solenoid Valve S2)

SYSTEM DESCRIPTION

DTC Detection Conditions:

The ECM uses signals from the vehicle speed sensor and input turbine speed sensor to detect the actual gear position (1st, 2nd, 3rd, 4th or 5th gear). The ECM then compares the actual gear with the shift schedule in the ECM memory to detect mechanical trouble of the shift solenoid valves, valve body and automatic transmission (clutch, brake or gear etc.).

MONITOR DESCRIPTION

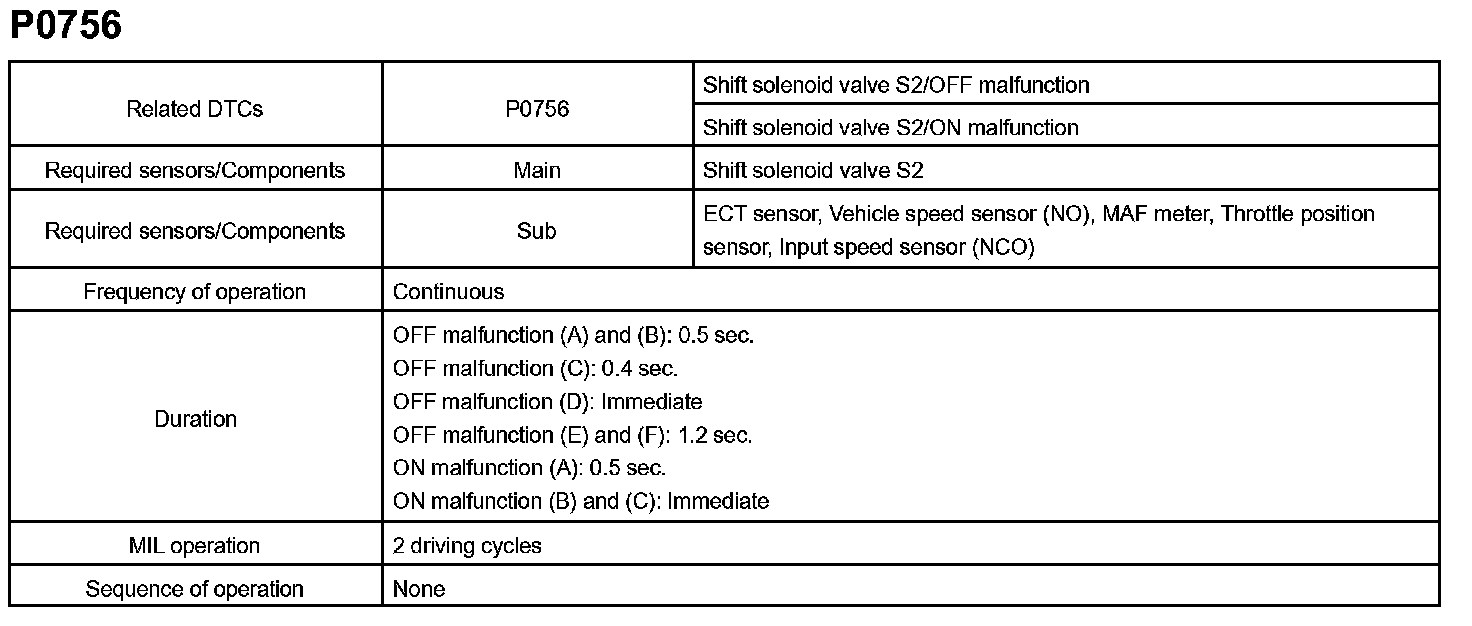

Monitor Strategy:

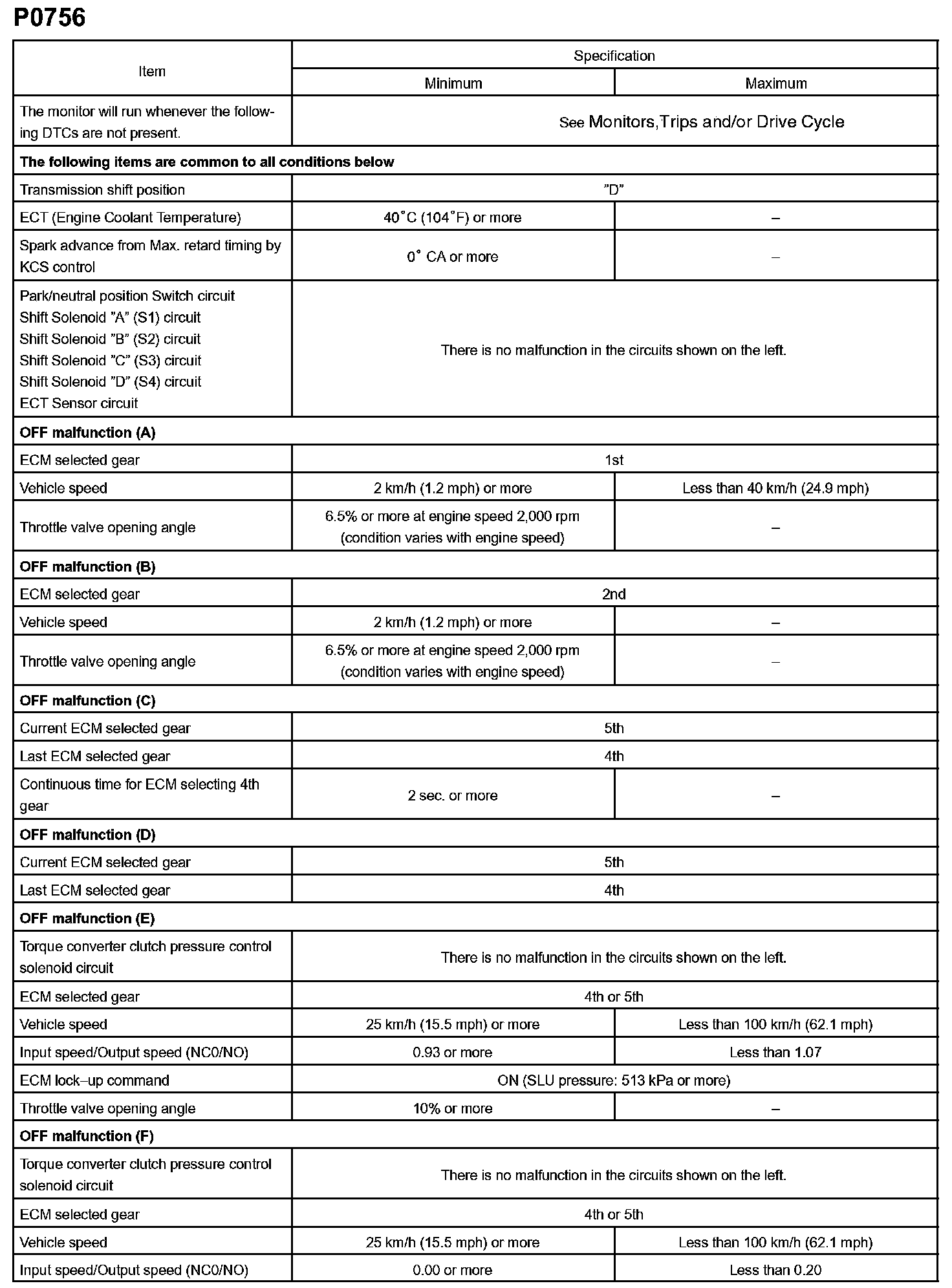

Typical Enabling Conditions Part 1:

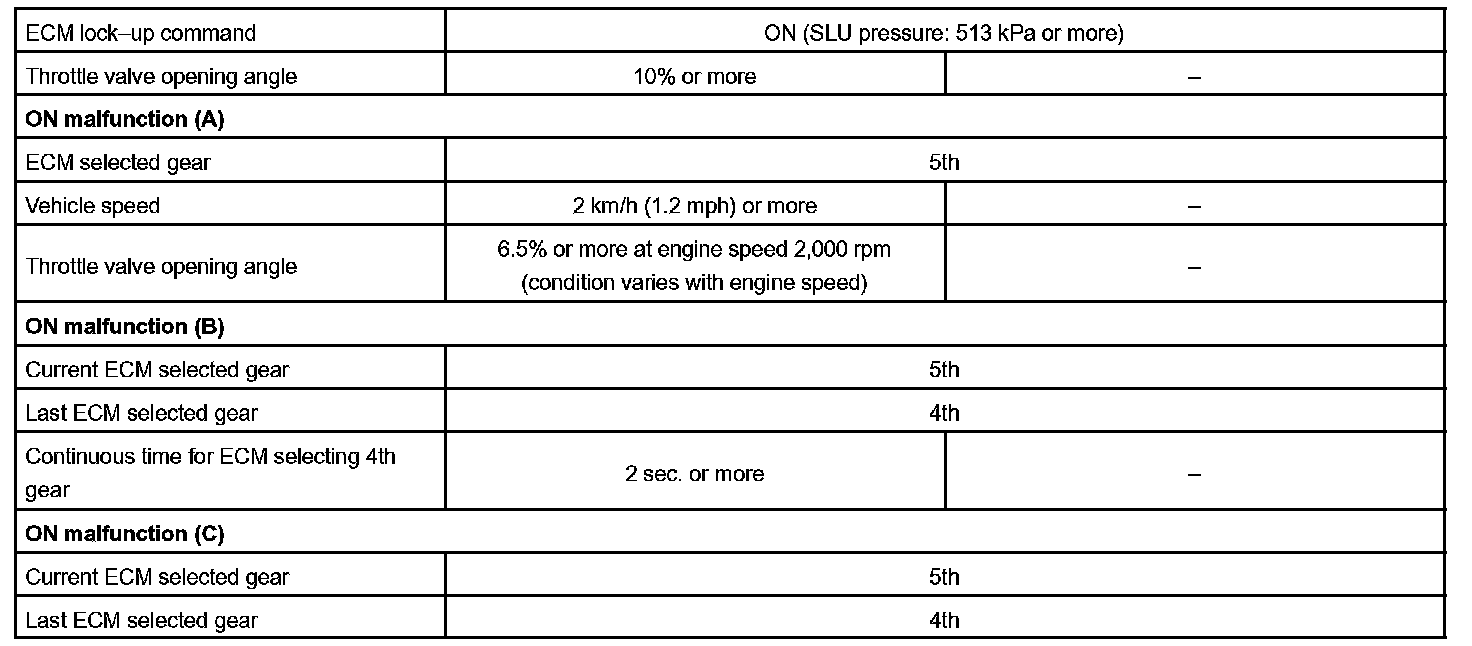

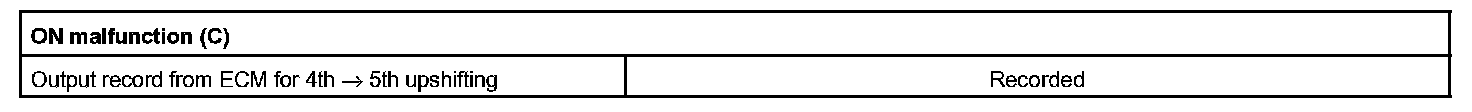

Typical Enabling Conditions Part 2:

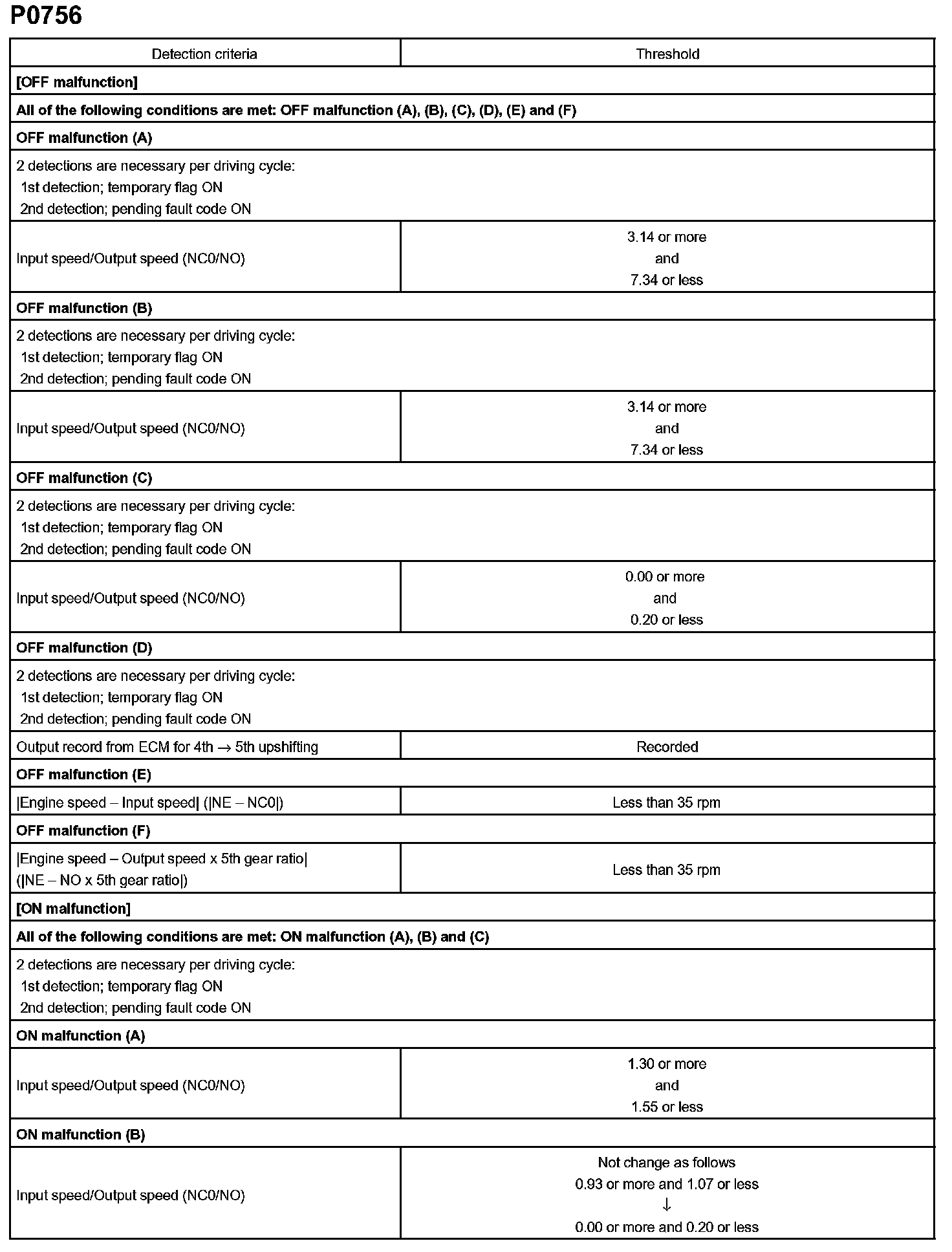

Typical Malfunction Thresholds Part 1:

Typical Malfunction Thresholds Part 2:

The ECM commands gear shifts by turning the shift solenoid valves "ON/OFF". When the gear position commanded by the ECM and the actual gear position are not same, the ECM illuminates the MIL and stores DTC.

Step 1:

Step 2:

INSPECTION PROCEDURE
