DTC 62

DTC 62 A/C ECU communication stop

CIRCUIT DESCRIPTION

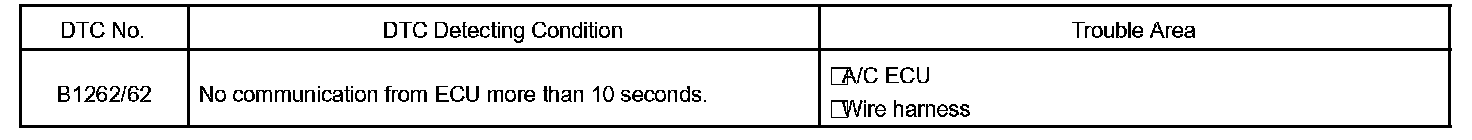

DTC Detecting Condition:

This DTC is output when communication stops between A/C ECU and Body ECU.

Wiring Diagram:

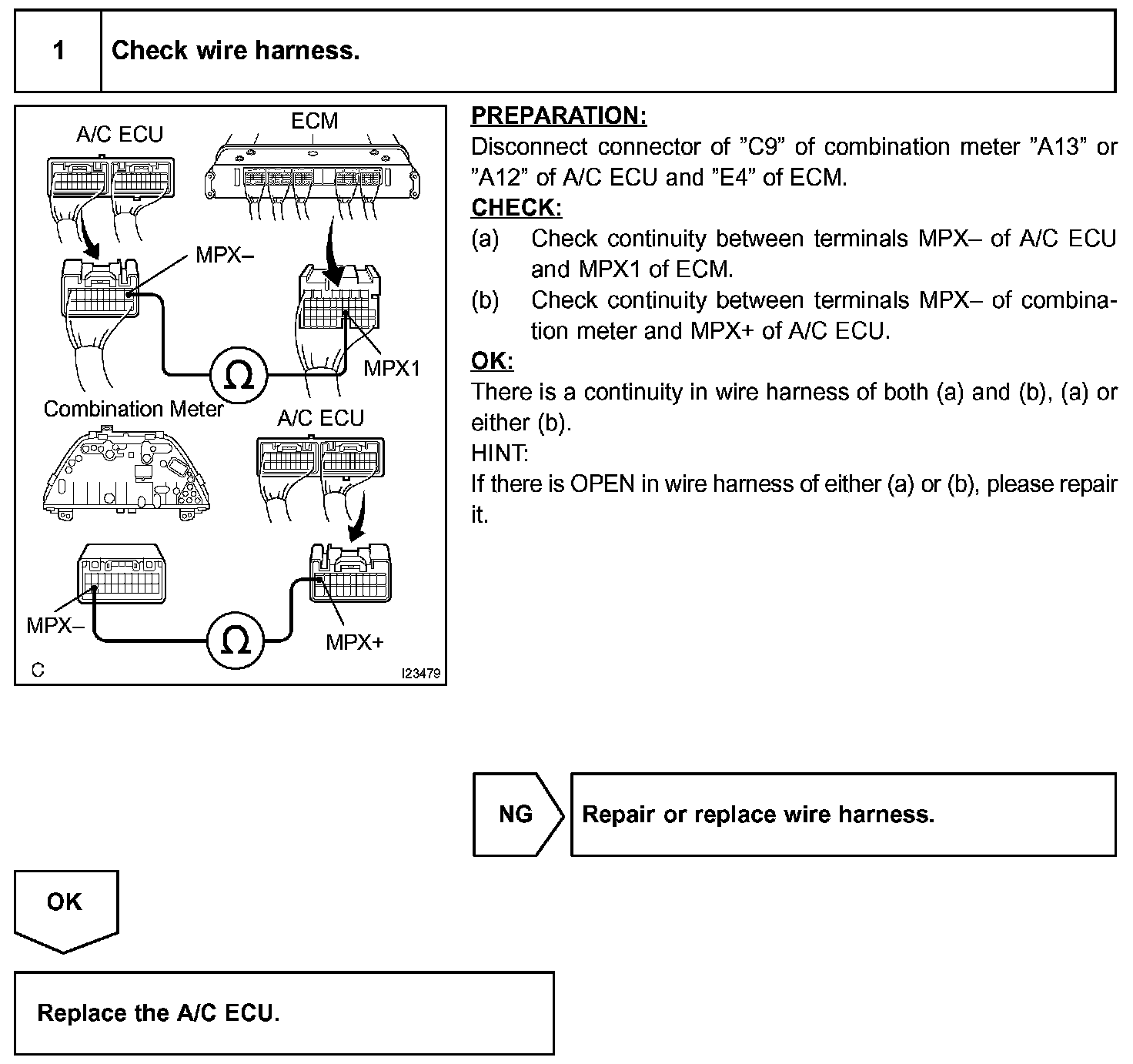

Step 1:

INSPECTION PROCEDURE
