DTC 51
>>
ABS Pump Motor Lock
ABS Pump Motor Lock
DTC 51 ABS Pump Motor Lock

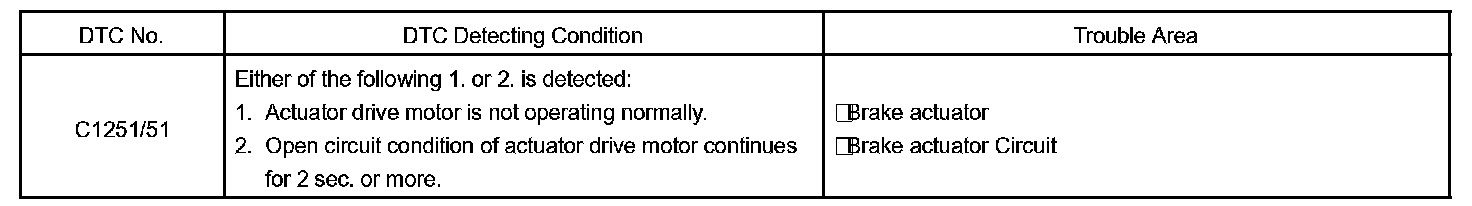

DTC Detecting Condition:
CIRCUIT DESCRIPTION

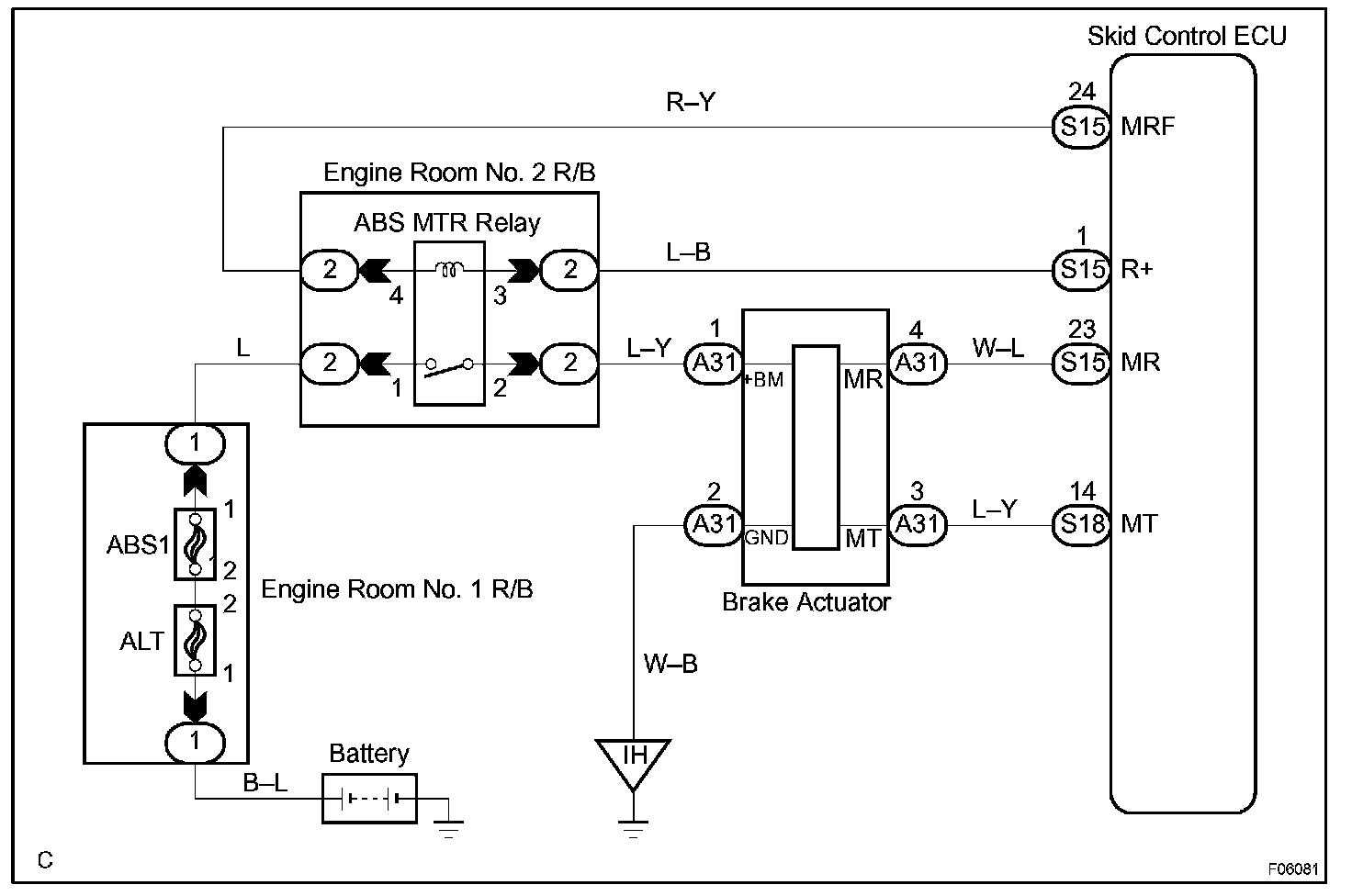

Wiring Diagram:

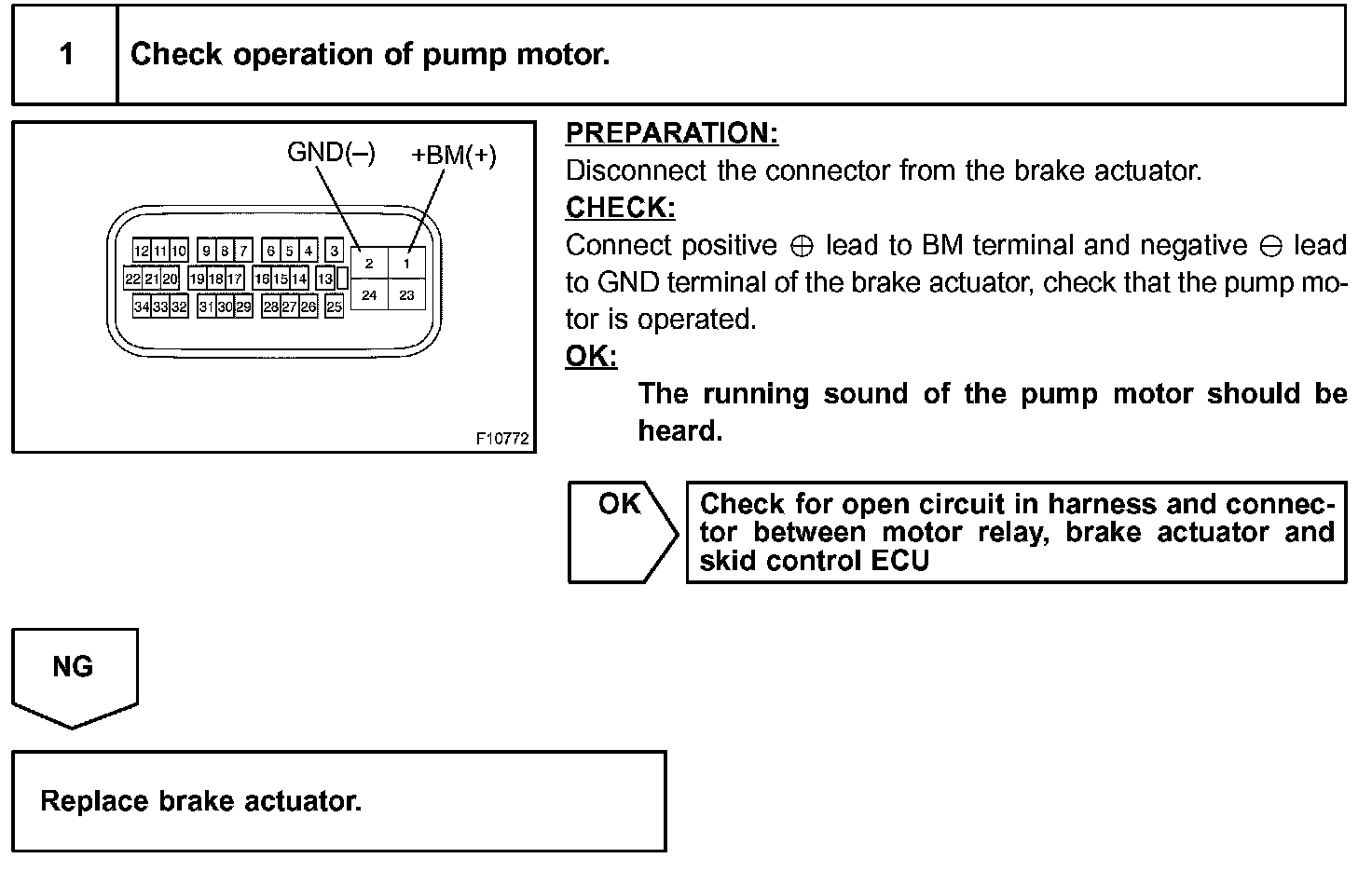

Step 1:
INSPECTION PROCEDURE
