Radio, Stereo, and Compact Disc

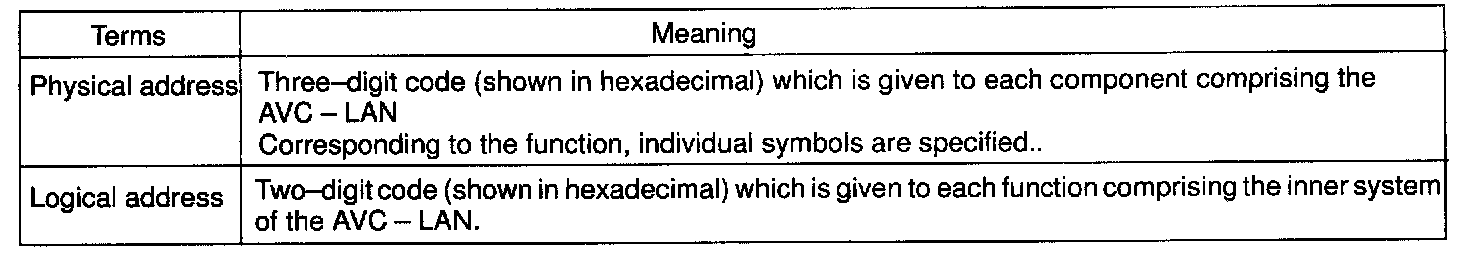

1. Code No. (physical address) List




2. DIAGNOSTIC TROUBLE CODE CHART

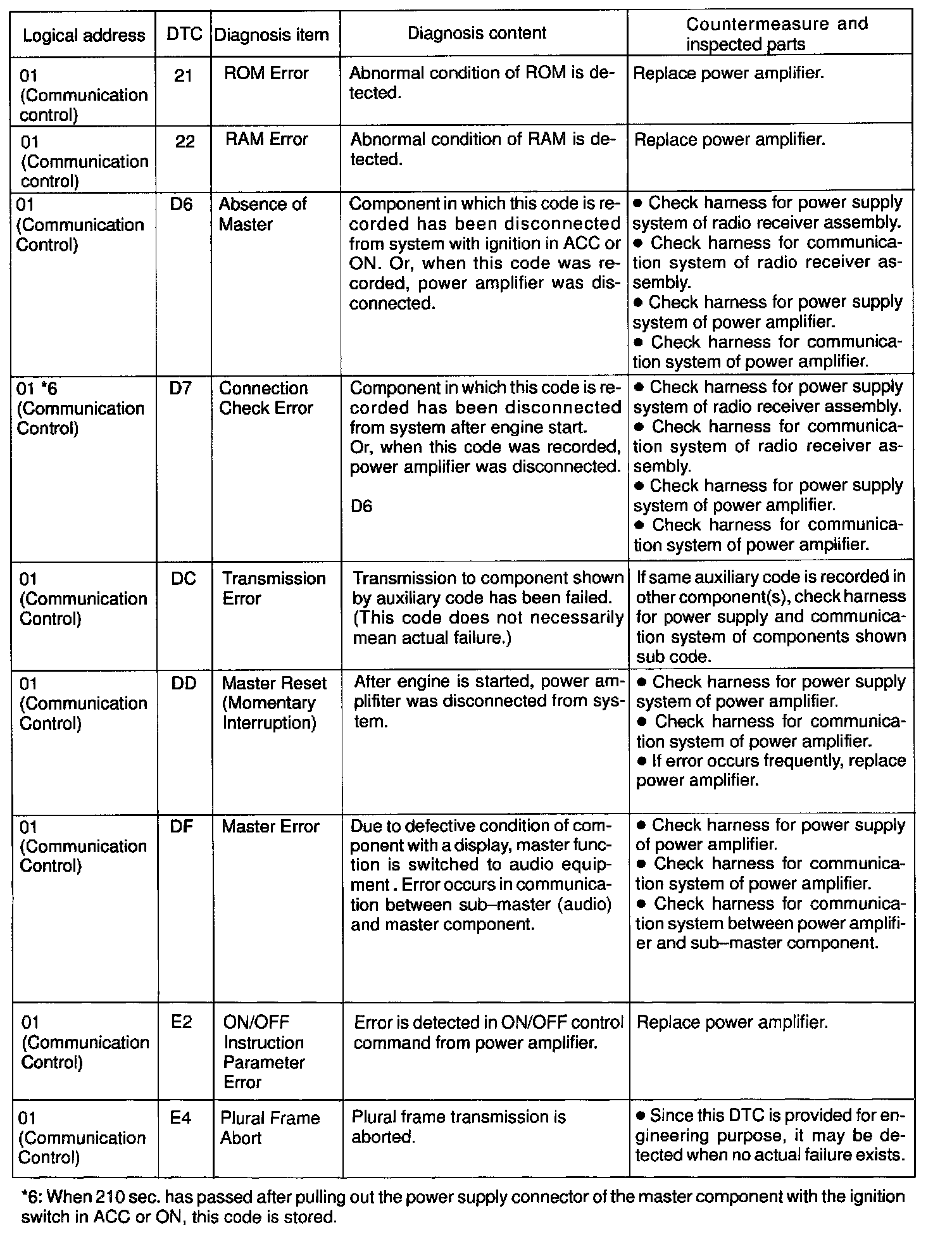

Physical address: 440 Power amplifier

Part 1:

Part 2:

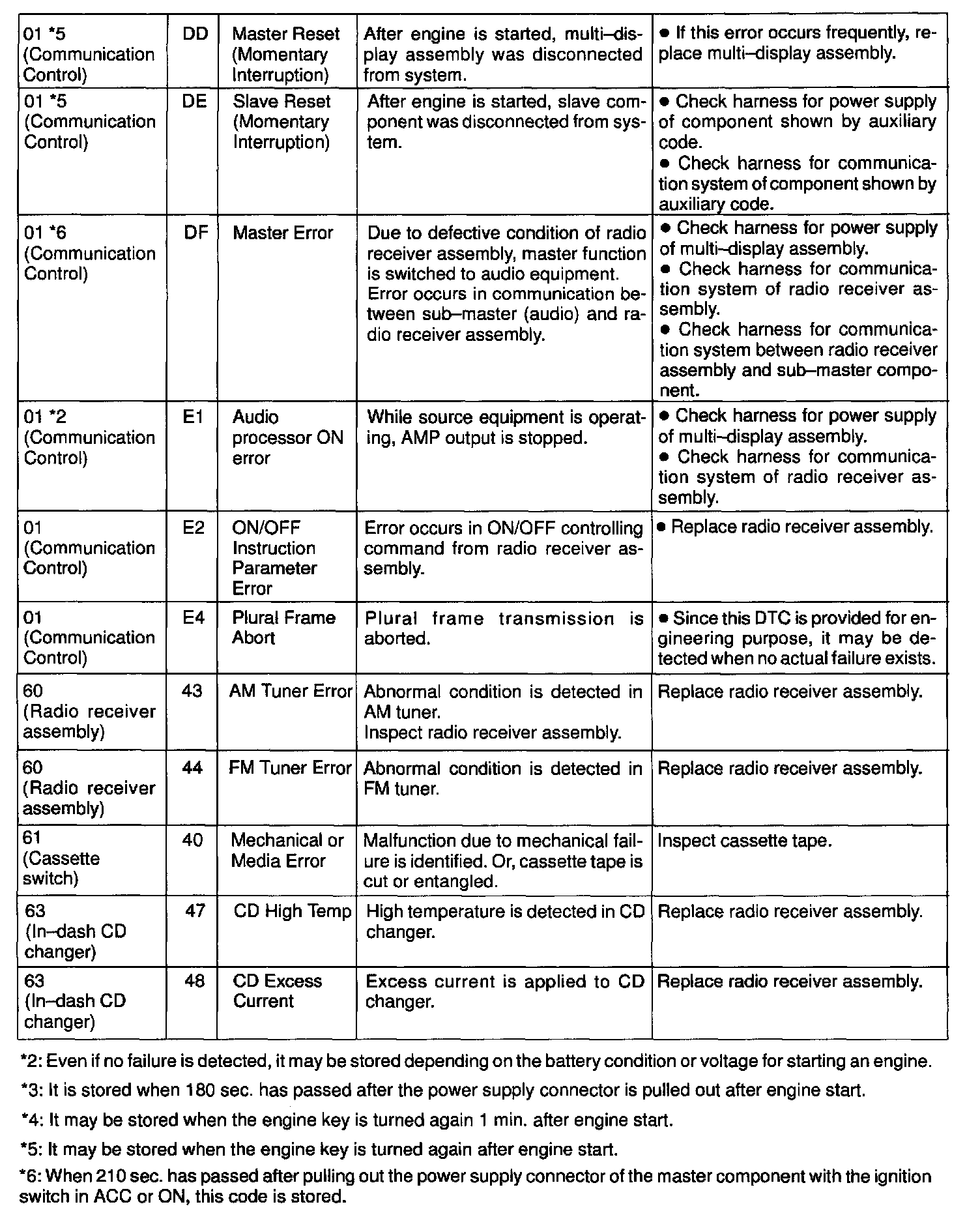

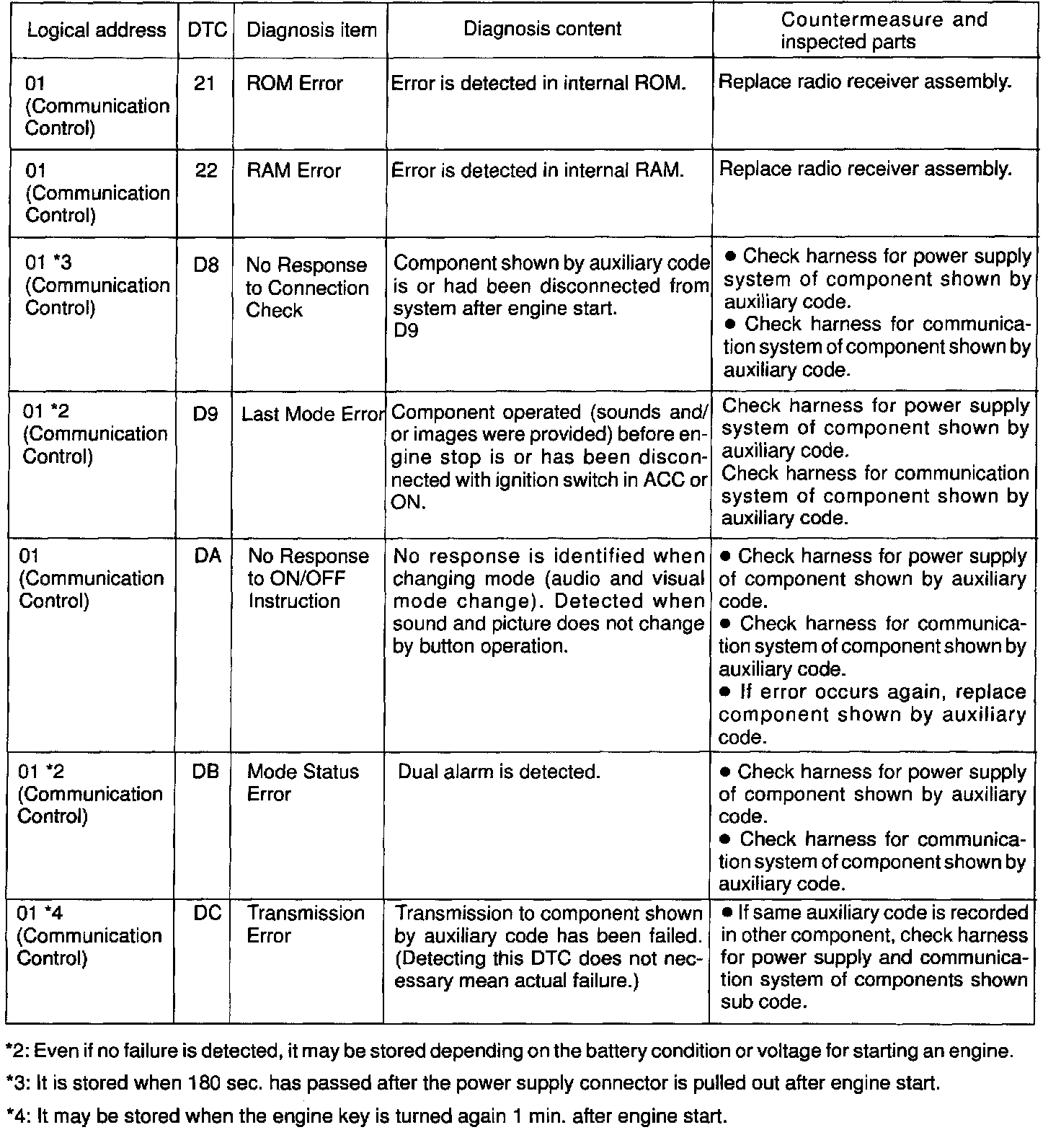

Physical address: 190 Radio receiver assembly
