Navigation System

DIAGNOSTIC TROUBLE CODE CHART

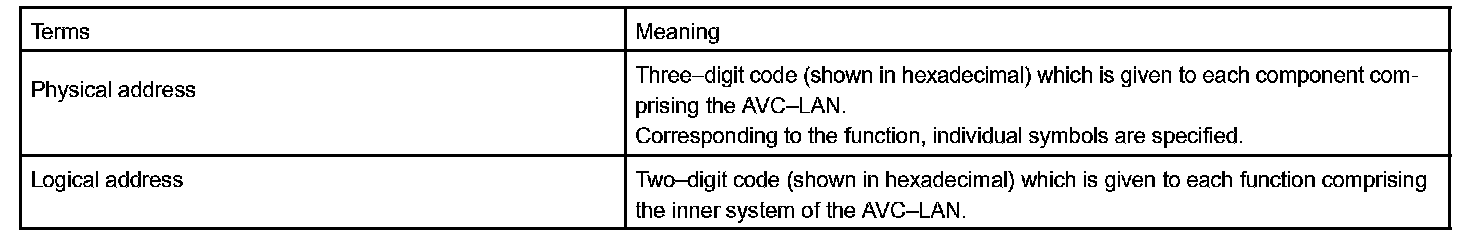

1. MULTI-DISPLAY (Physical address: 110)

HINT:
- *1: Even if no failure is detected, this code may be stored depending on the battery condition or voltage for starting an engine.
- *2: This code is stored when 180 sec. has passed after the power supply connector is pulled out after engine start.
- *3: This code may be stored when the engine key is turned again after engine start.
- *4: This code may be stored when the engine key is turned again 1 min. after engine start.

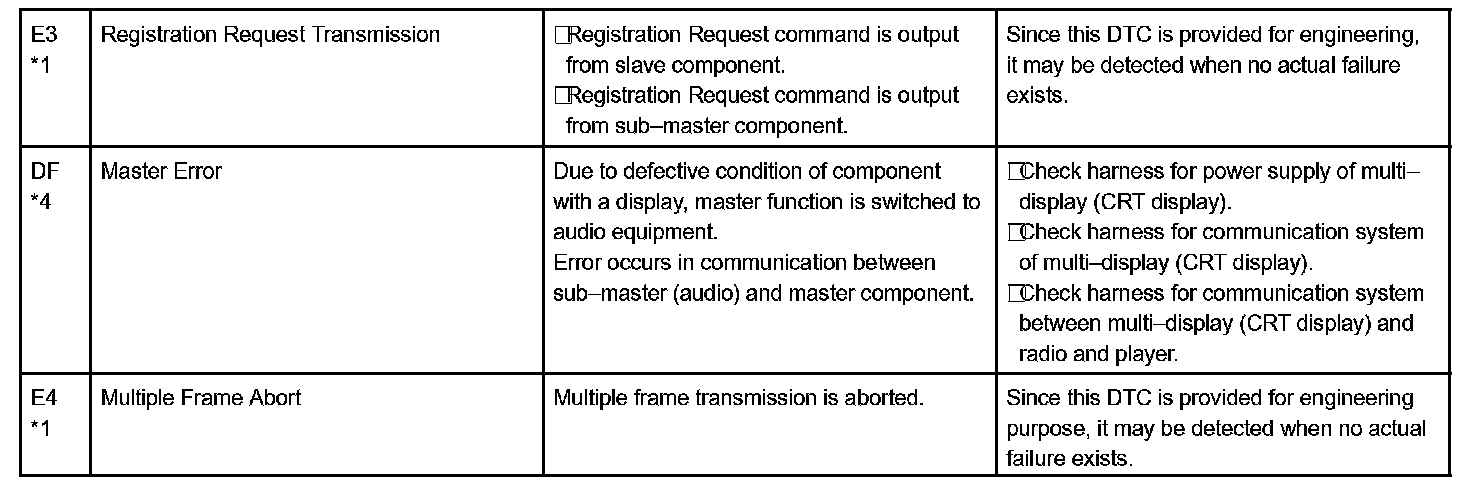

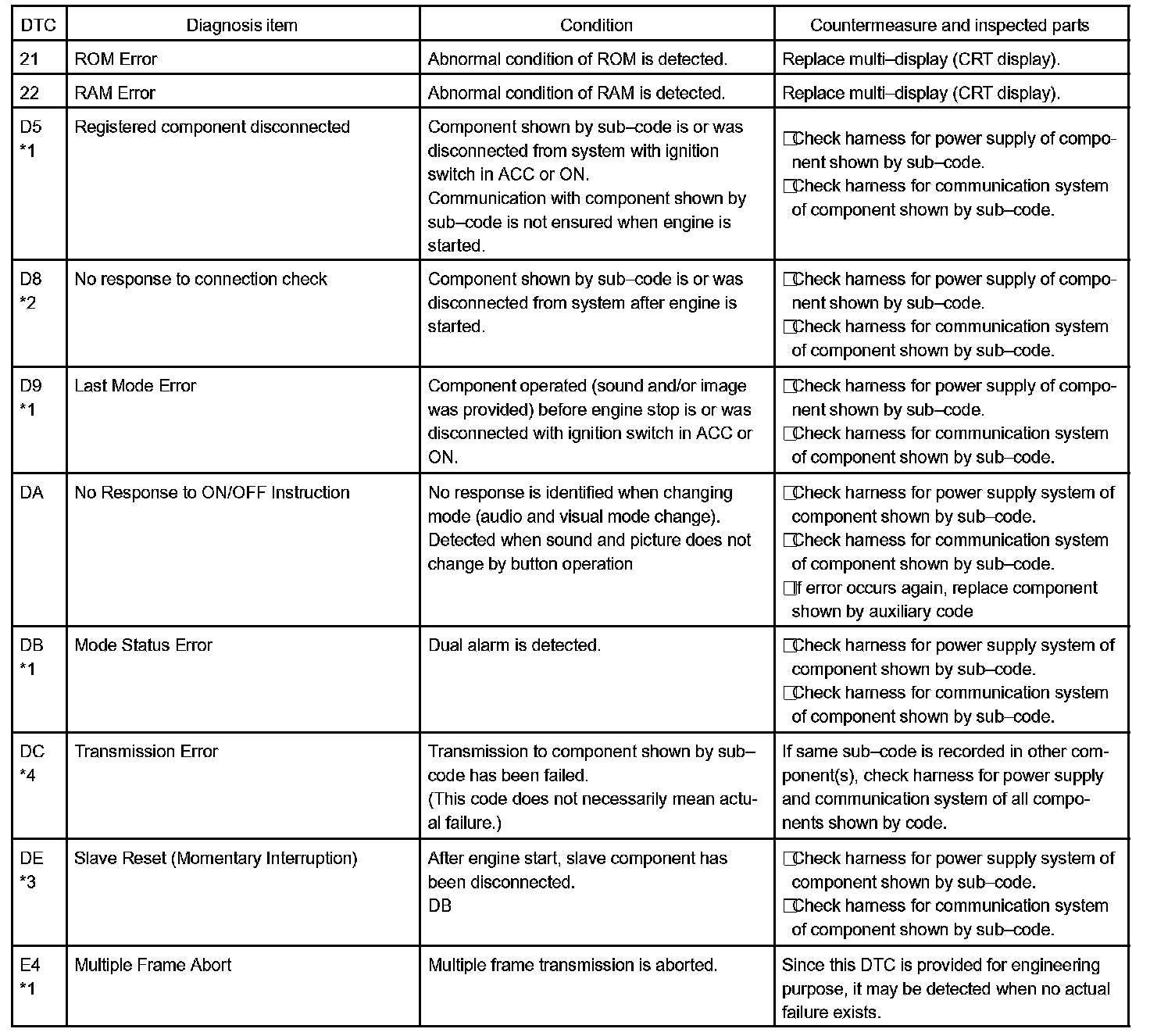

a. Logical address: 01 (Communication control)

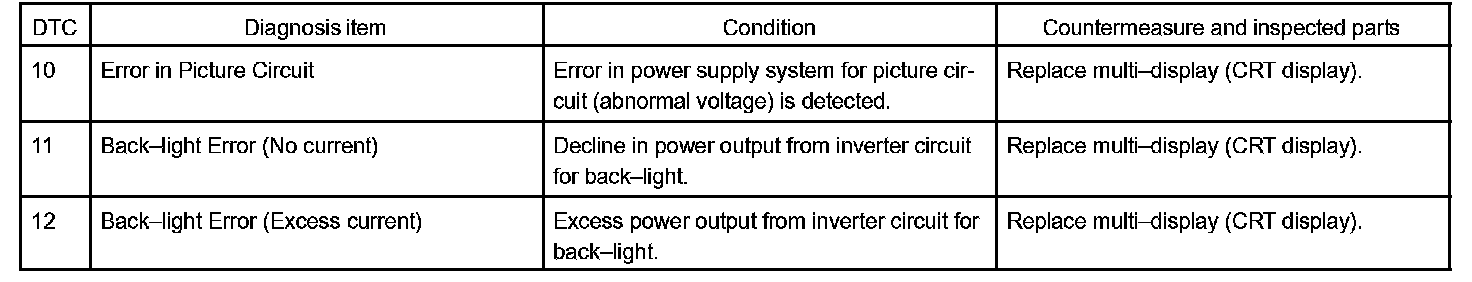

b. Logical address: 34 (Front monitor)

2. NAVIGATION ECU (Physical address: 178)

HINT:
- *1: Even if no failure is detected, this code may be stored depending on the battery condition or voltage for starting the engine.
- *2: When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.
- *3: This code may be stored when the engine key is turned 1 min. again after engine start.
- *4: This code may be stored when the engine key is turned again after engine start.

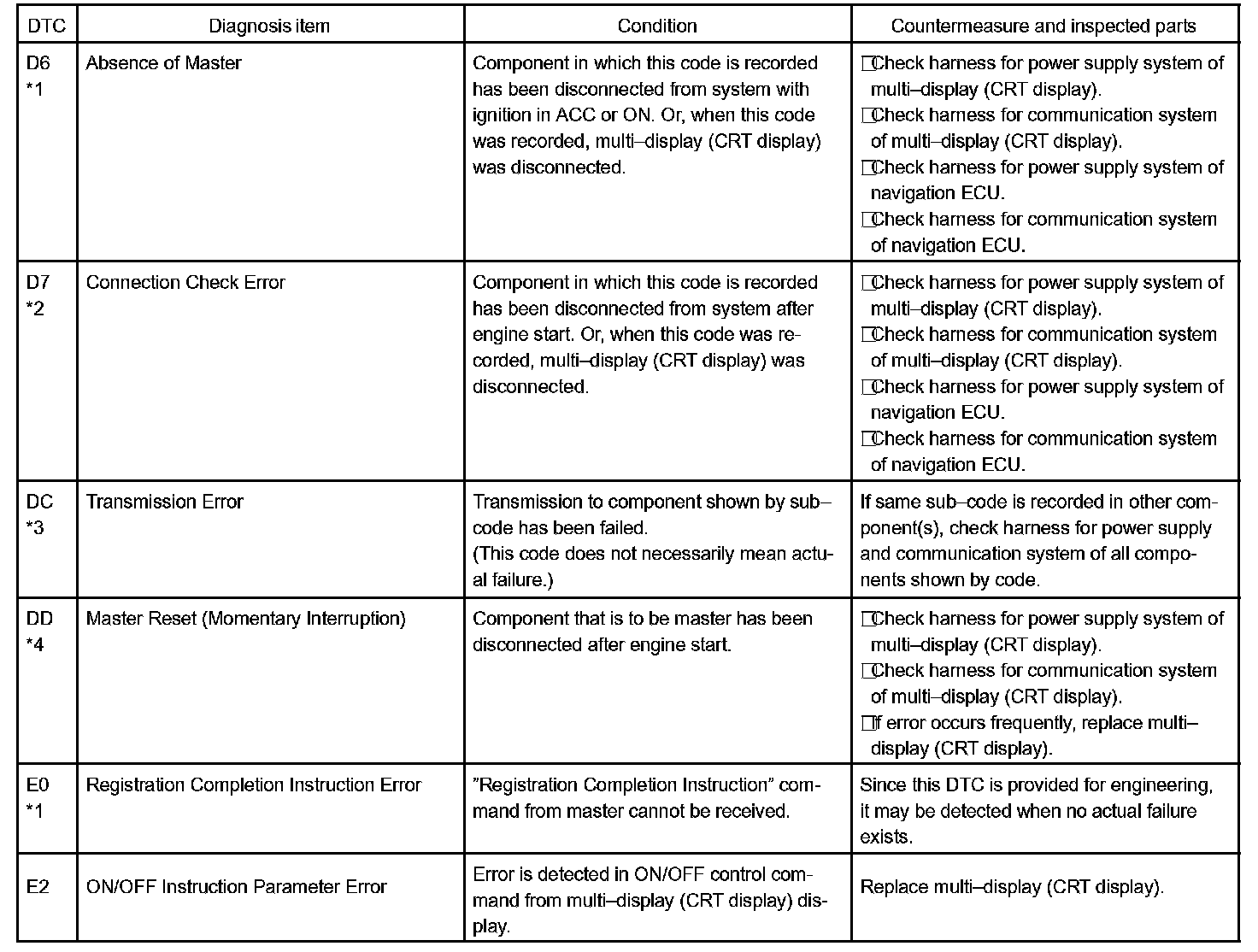

a. Logical address: 01 (Communication control)

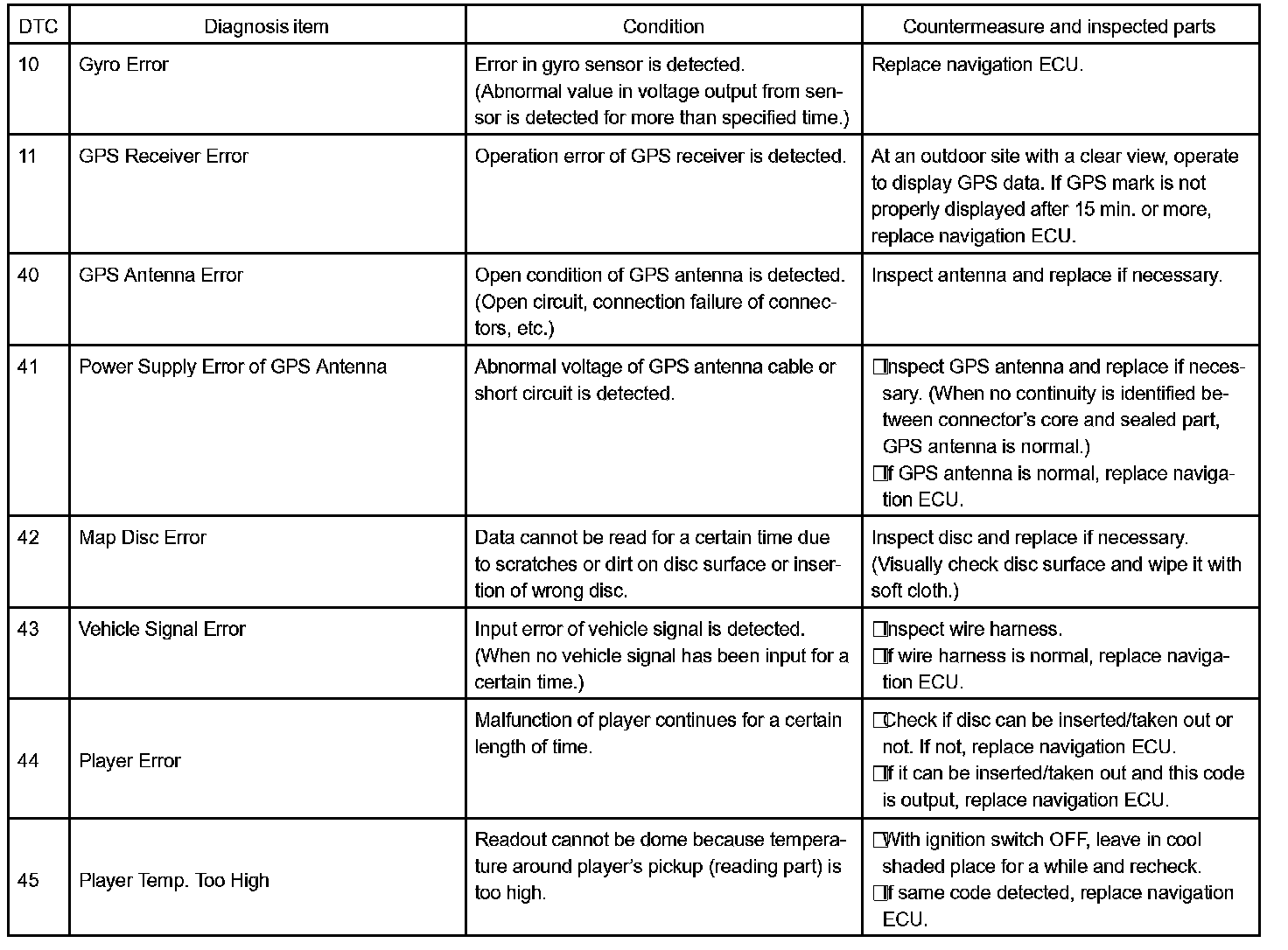

b. Logical address: 58 (Navigation ECU)
