Automatic Transmission System

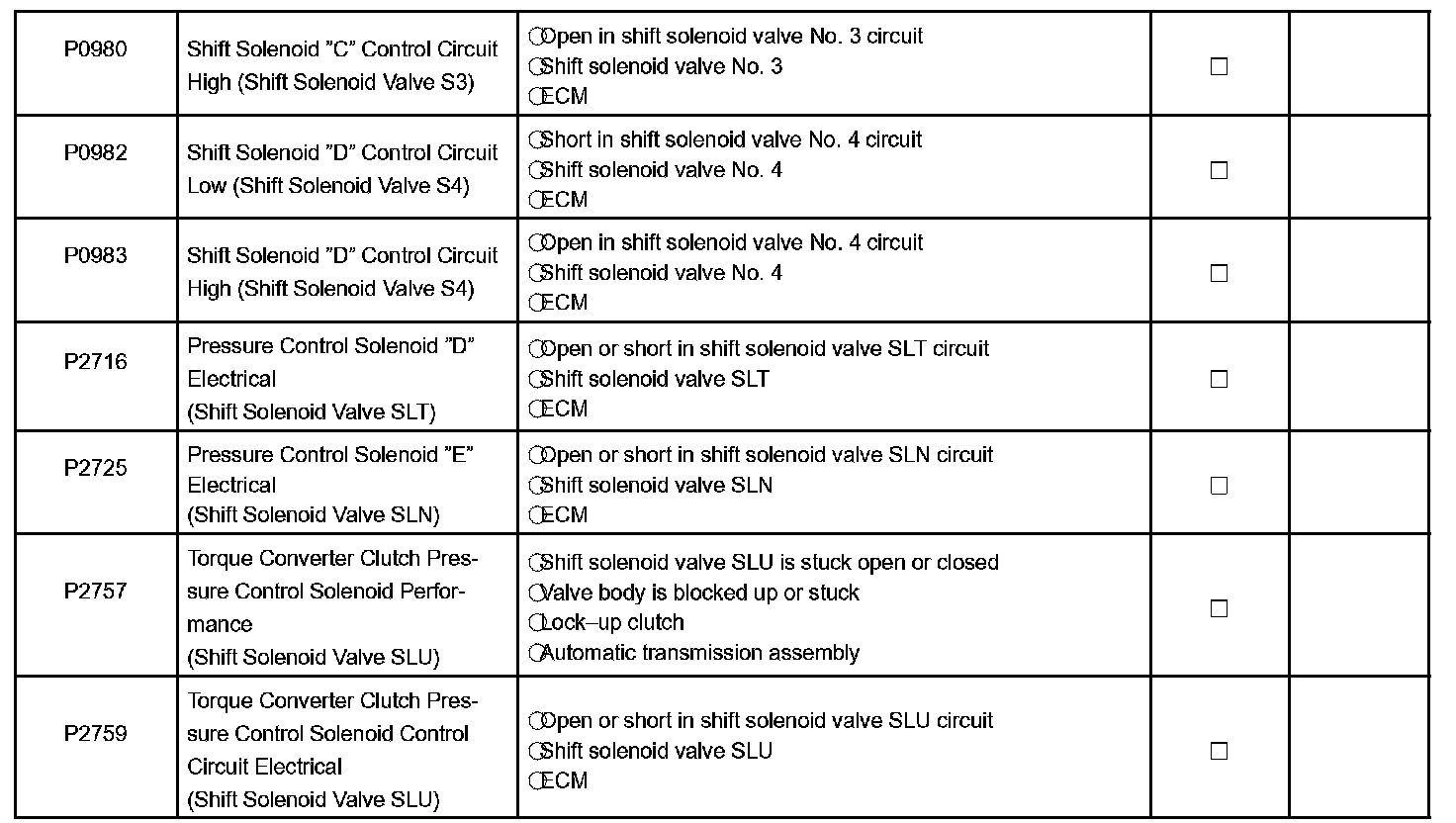

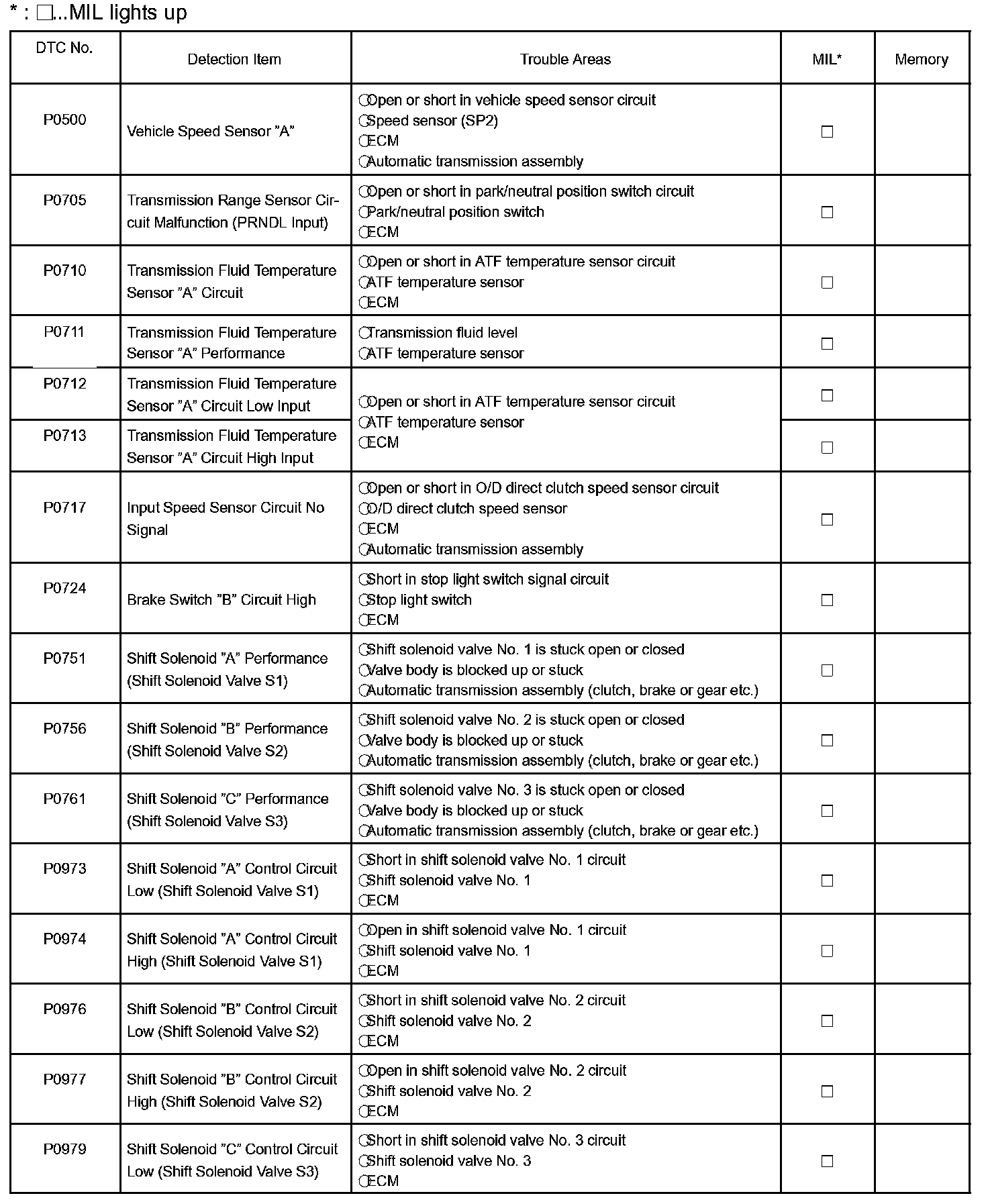

DIAGNOSTIC TROUBLE CODE CHART

P0500 - P0979:

P0980 - P2759:

If a DTC is displayed during the DTC check, check the circuit listed in the table.

HINT: This DTC may be output when the clutch, brake and gear components etc. inside the automatic transmission
