Air Conditioning System

DIAGNOSTIC TROUBLE CODE CHART

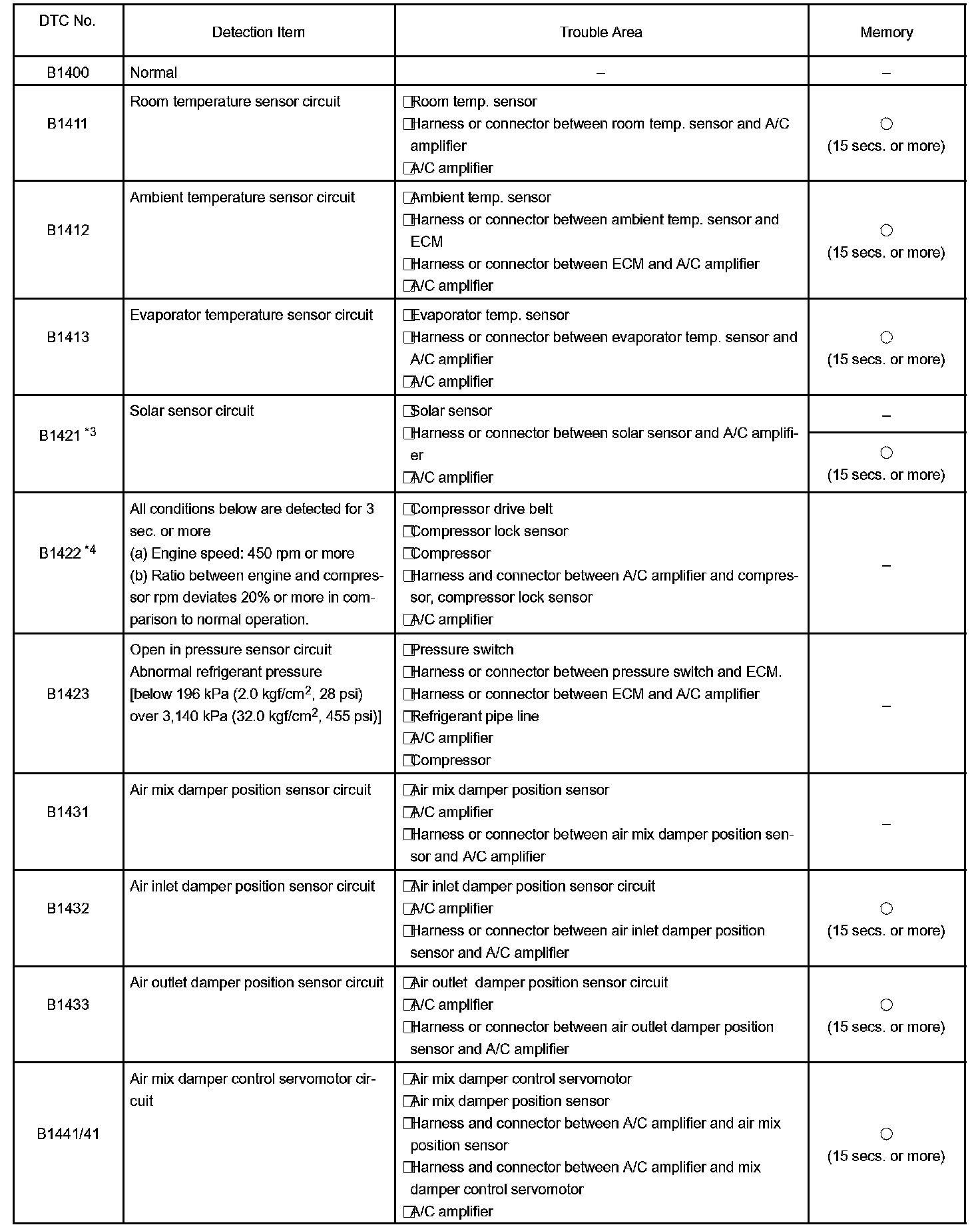

B1411 - B1441:

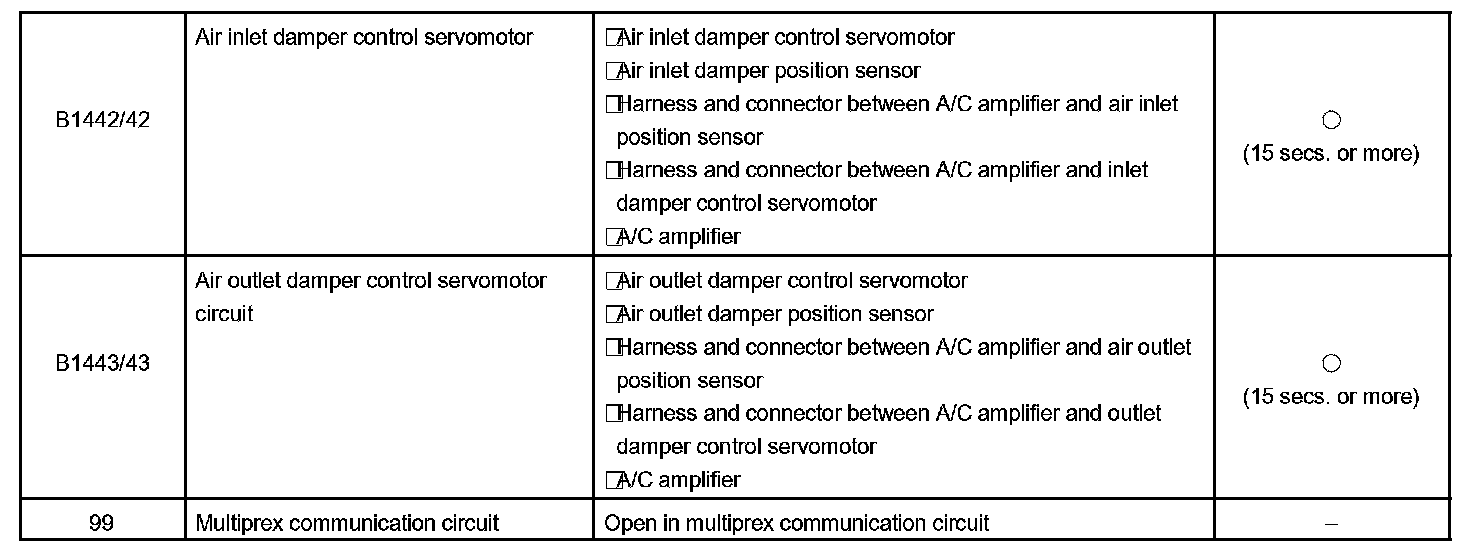

B1442 - 99:

If malfunction code is displayed during the DTC check, check the circuit listed for that code in the table (Proceed to the troubleshoot given for that circuit.)

HINT:
- *1 If the room temp. is approx. -20 °C (-4 °F) or lower, DTC B1411 may be output even though the system is normal.
- *2 If the ambient temperature is approx. -50 °C (-58 °F) or lower, a DTC may be output even though the system is normal.
- *3 If the check is being performed in a dark place, DTC B1421 (solar sensor circuit abnormal) could be displayed. In this case, perform DTC check again while shining a light, such as an inspection light, on the solar sensor. If DTC B1421 is still displayed, there could be trouble in the solar sensor circuit.
- *4 Compressor lock (DTC B1422) is indicated only for a current malfunction. To confirm DTC B1422, preform the following steps.
1. With the engine ON, enter the DTC check mode.
